Issued 6/02

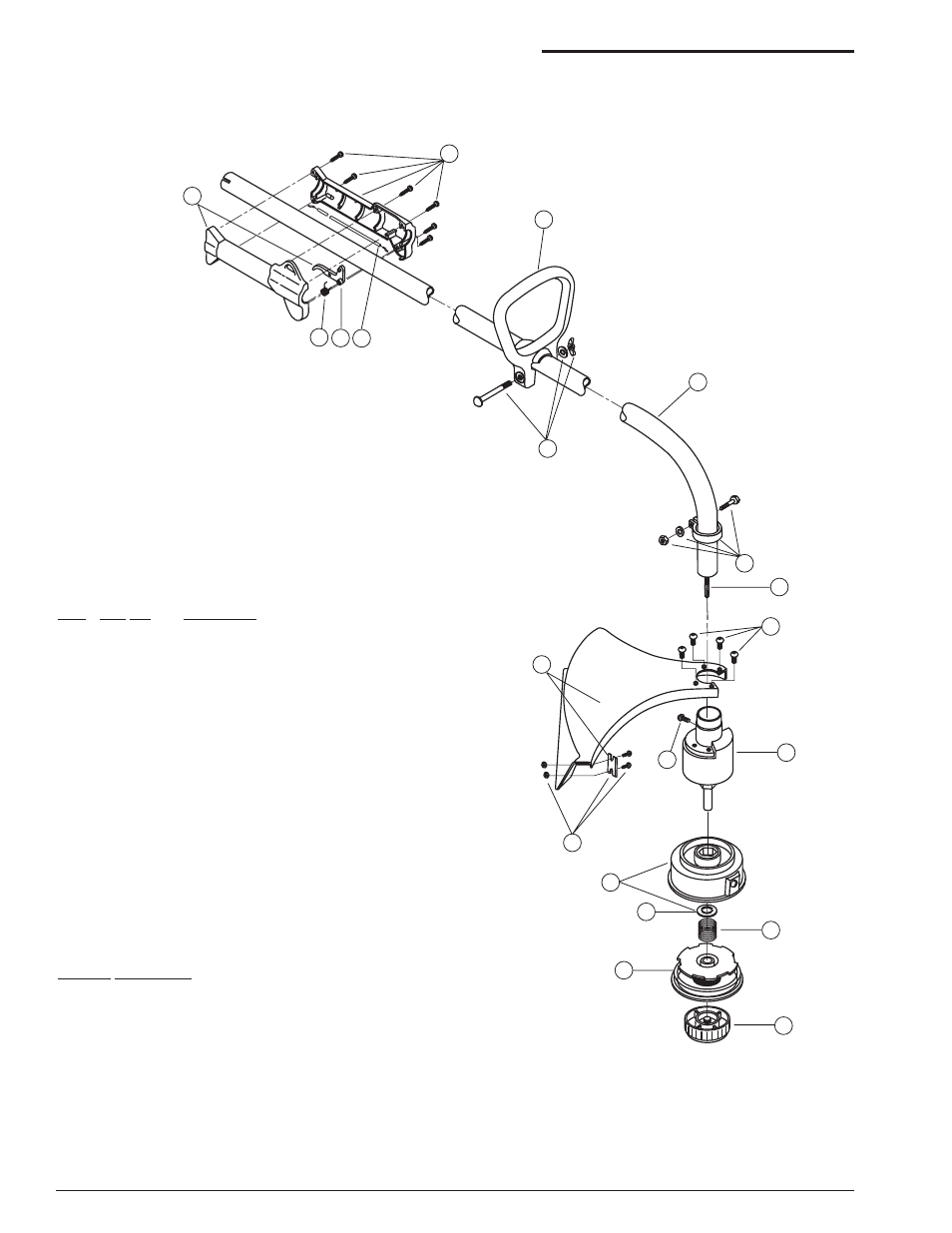

BOOM AND TRIMMER PARTS - MODEL 700r
2-CYCLE GAS TRIMMER
PPN- 41CD700G034
Item Part No. Description
1 791-182069 Throttle Housing and Trigger Assembly
(includes 2 & 3)
2 791-610314 Throttle Trigger Spring
3 791-181556 Throttle Trigger
4 791-182068 Throttle Cable Assembly
5 791-153064 D-Handle Assembly (includes 6)
6 791-181587 D-Handle Hardware
7 791-181893 Drive Shaft Housing Assembly
8 791-153597 Lower Clamp Assembly
9 791-182839 Flexible Drive Shaft
10 791-180531 Shield Mounting Screw
11 791-181784 Bushing Housing Assembly with Spool Shaft
12 791-145569 Anti-Rotation Screw
13 791-181659 Shield and Blade Assembly (includes 14)
14 791-181823 Blade Assembly
15 791-153619 Outer Spool and Eyelet Assembly
(includes 16)
16 791-610660 Retainer
17 791-610317 Spring
18 791-610318 Inner Reel
19 791-153066 Bump Head Knob Assembly
Optional Accessories
* 791-610375 Replacement Line, 0.80 Diameter
* 791-153577 Reel and Line Assembly
* 791-180897 Bump Head Assembly (includes 15-19)
* 791-682075 Shoulder Strap Assembly
* Items Not Shown
10
8
13
9
17
16
18
19
15
11
12
14
1
1
5
6
7
4 3 2
