1 Filter 620D085-10
1 Remote control 939P916-10
1 Remote control cable 246C424-10
1 User manual 871D360-10
1 Quick reference card 857D037-10
2 Battery for remote –
Connectors

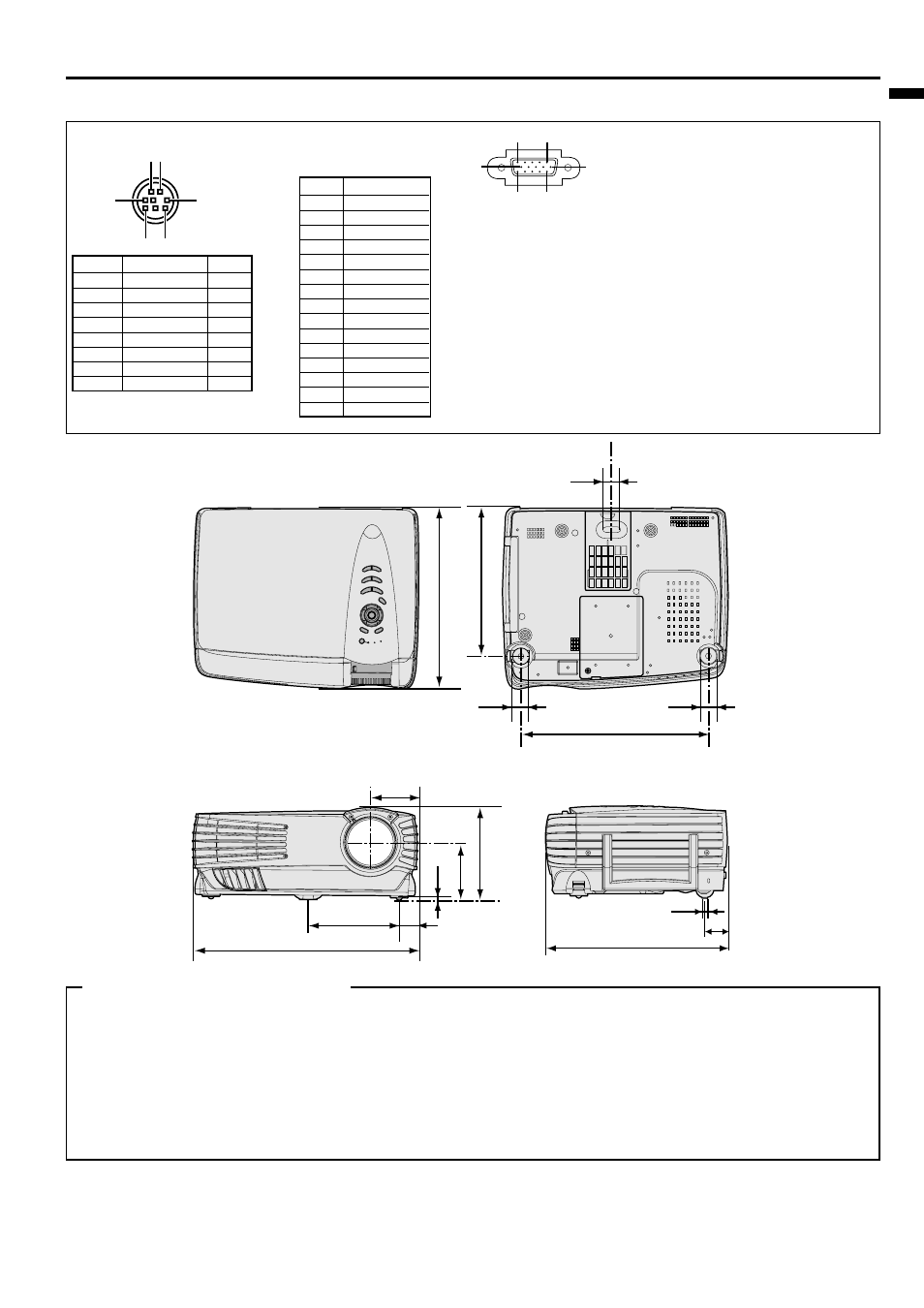

Dimensional drawings
(mm)
380
153
80
307
316.5
31
38
9.5
30
30
30
157
98
7.5
307
250
Replacement part
(Option / Not included in the box)
Spare marcury lamp 499B030-10
(VLT-XL30LP)
What’s included in the box
2 AC power cord 246C383-10
246C383-20
1 Audio/Video cable 246C381-10
1 RGB cable for PC 246C448-10
1 RS-232C cable 246C447-10
1 PS/2 adapter 246C449-10
1 USB cable (For XL30U only) 246C450-10
PIN No. SPEC
1 R(RED)/C R
2 G(GREEN)/Y
3 B(BLUE)/C B
4 GND
5 GND
6 GND
7 GND
8 GND
9 –
10 GND
11 GND
12 DDC Data
13 HD/CS
14 VD
15 DDC Clock
COMPUTER IN/OUT
(Mini D-SUB 15P)
PIN No. NAME I/O
1 TXD IN
2 RTS IN
3 DTR IN
4 GND –
5 CTS / 5V IN/OUT
6 DCD / CLOCK OUT
7 RXD OUT
8 RI / DATA OUT
RS-232C (Mini DIN 8P)
1
3 5
2
6 8
1 5
11
6 10
15
