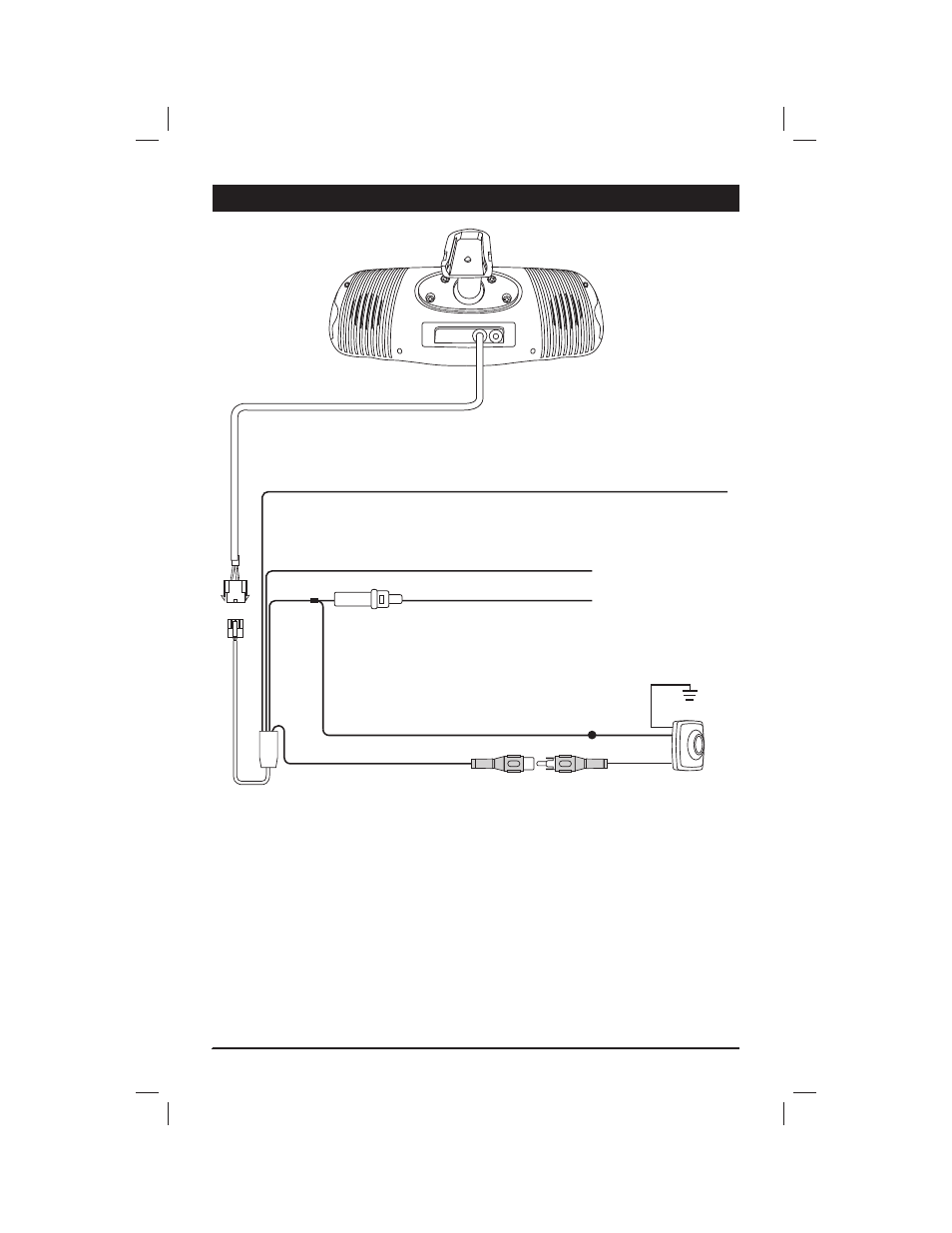

Electrical Connections

Yellow RCA (Video)

Red Wire To Camera

Rearview

Camera

(Not Supplied)

Red Wire To Switched +12V

Black Wire To Ground

Brown Wire Connect to Backup Light (+12V)
