Page 22 - 34007532EN/AA
4.2 Replacement of the battery module
4. Maintenance
Safety rules:
Batteries constitute a danger (electrical shock, burns). The short-circuit current may be very high. Precautions
must be taken for all handling:
◗ remove all watches, rings, bracelets and any other metal objects;
◗ use tools with insulated handles.

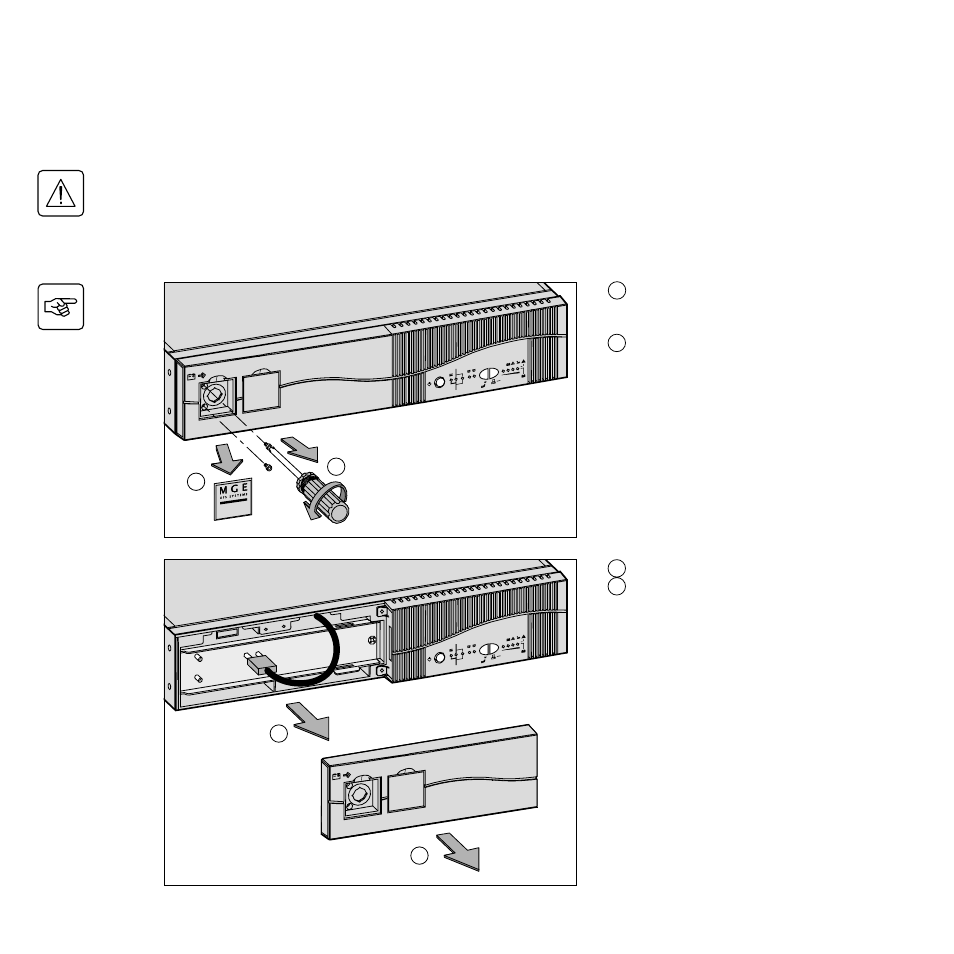

Removal of battery module
A - Slide a finger in the slot to remove the
MGE UPS SYSTEMS logo from the front of
the UPS.
B - Remove the two screws.
C - Remove the left side of the front panel.
D - Remove the connector.
B
A
www.mgeups.com
P U L S A R
E X t r e m e
100% 80% 50% 20% test %
1 2
% BYPA SS
C
D
P U L S A R
E X t r e m e
100% 80% 50% 20% test %
1 2
% BYPA SS
