7 65D1009
EYF Series Unvented Gas Log Set FIREPLACE and HEARTH DIMENSIONS
W
ARNING
This appliance has been specifically tested and design certified for
installation only in a solid-fuel burning fireplace including factory-built
UL127 fireplaces and masonry fireplaces, or in a listed ventless firebox
(see below).
Exception: DO NOT install this appliance in a factory-built fireplace that
includes instructions stating that it has not been tested or should not be
used with unvented gas logs.
Use manufacturer's installation and clearance requirements
as defined in their manual.
The EYF Series unvented room heater is approved for
installation into the following unvented fireplaces:
GCUF(32,36,42) and VFR(32,36,42) Series Fireboxes
The EYF Series unvented room heater may also be in-
stalled into a Ventless Firebox Enclosure for Gas Fired
Decorative Type Unvented Room Heaters per ANSI
Z1.91b.004, as long as firebox hearth dimensions meet
the minimum hearth dimensions shown below.
C
A
D
B
FP2530
hearth dims

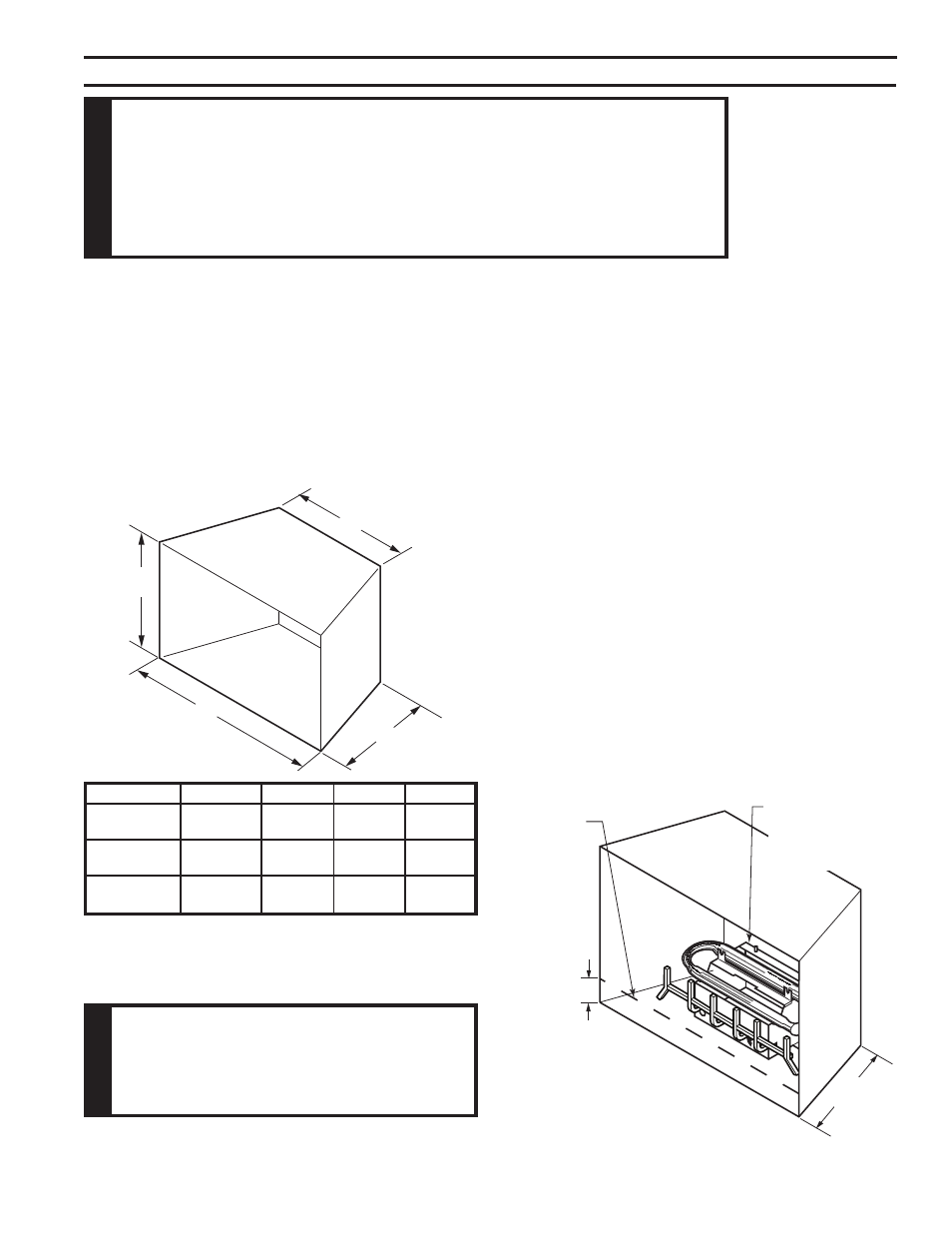

Figure 2 -
Hearth Minimum Dimension for Solid Fuel Burning
Fireplaces and UL127 Factory Built Fireplaces
Model A B C D
EYF18 5" 13" 17Z\x" 17"
(635 mm) (330 mm) (445 mm) (433 mm)
EYF4 w/ 9" 13" 19Z\x" 17"
EYF4-(R,F) (737 mm) (330 mm) (495 mm) (433 mm)
EYF4 w/ 33" 13" 5Z\v" 17"
EYF30-R (838 mm) (330 mm) (641 mm) (433 mm)
FP530
IMPORTANT INFORMATION FOR THE INSTAL-
LATION OF THIS GAS LOG SET IN A FIRE-
PLACE WITH A RESTRICTIVE BARRIER
The following are guidelines for placing a gas log set in
a fireplace that has a restrictive barrier along the bottom
front opening of the fireplace. Some examples of barri-
ers are glass/screen door frames and sunken/recessed
fireplaces.
Height of Minimum Depth of
Restriction (x) Fireplace/Firebox
No Restriction 13”
1/” to 1Z\x” 16”
Greater than 1Z\x” to 3” 16”
Greater than 3” *
*Any barrier greater than 3” placed in front of the gas log
set is not recommended by the manufacturer.
NOTE: Non combustible material such as refractory
brick may be used to line the floor of the fireplace in
order to raise the height of the gas log set in relation to
a restrictive barrier. If the unit is raised, the minimum
height dimension listed in the homeowner’s manual must
not be exceeded.
NOTE: If the log set is equipped with a remote receiver,
a restrictive barrier may reduce the battery life by
increasing the ambient temperature inside the fireplace.
Placement of the receiver outside of the fireplace will
extend the battery life.
Barriers such as the bottom of a glass door
frame placed in front of a gas log set can
change the air flow characteristics of the
fireplace which in turn can cause the unit
to overheat and malfunction.
W
ARNING
LO
HI
OFF
ON
I G N
X
FP2531
fireplace w barrier
Refer to
Table 1
Glass door frames
with adjustable
louvers should
have the louvers
fully open while the
unit is in operation
The log set should
be placed against or
as near as possible
to the rear wall of the
fireplace/firebox.
Height of restrictive barrier
caused by glass door frames,
recessed fireplaces, etc. from
the base or bottom surface of
the unit. FP531
Figure 3 -
Reference Drawing of a Natural Flame Log
Set in an Enclosure
