Monte Carlo Fan Company 5SLR52 - Manual (Page 3)

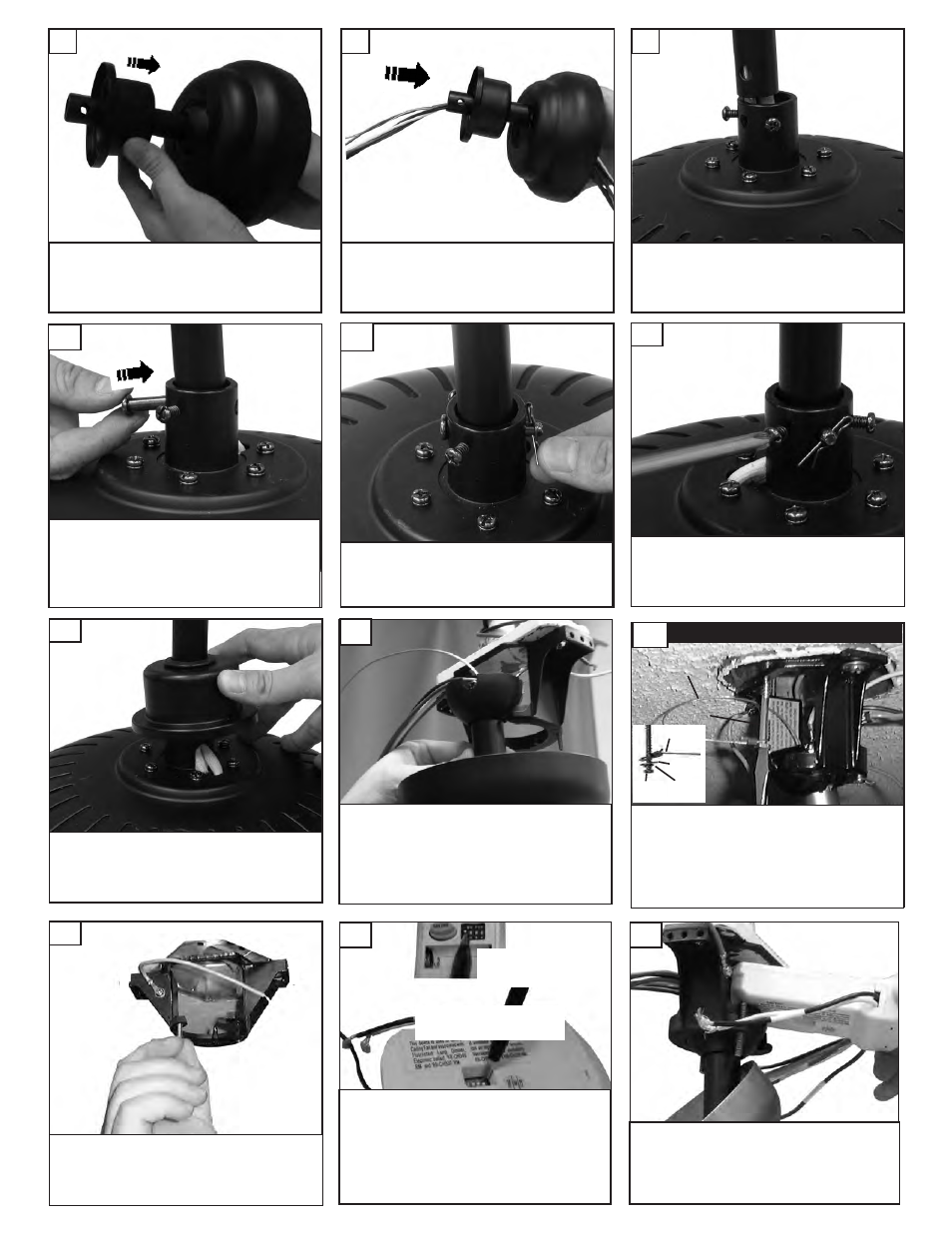

Hang assembled fan from the mounting bracket
installed to ceiling in previous step. Make sure
the fan is hanging straight. Rotate fan until the
tab on the Mounting bracket engages the slot
on the Downrod Ball. This must be done to
prevent the fan body from rotating when the
blades are in motion.
14
Make sure the studs protruding from the
bottom of the Mounting bracket are
installed with threads all the way through
the bracket.
16
Place downrod into fan yoke.
9
Install the keeper to pin.
11
Tighten the 2 set screws on the yoke
once the downrod is in place.
12
Align the hole in the downrod with
the hole in the yoke. Insert th pin
through the yoke and downrod until
the point appears on the other side.
10
Thread leadwires and safety cable
through downrod. (as shown)
8
Place yoke cover on downrod. (as
shown)
7
Pull down yoke cover.
13
Install remote receiver into mounting
bracket.
18
Set dip switches on the Remote Transmitter and
Remote Receiver to the same settings. This must be
done so the units will communicate properly. If you
have other fans you can set to control from one trans-
mitter by setting both receivers the same as the
transmitter. If you have more than one fan with
remote. You can set the dip switches to different posi-
tions to have seperate control.
17
Remote Transmitter
Dip switches
Remote Receiver Dip
switches
Fan and light kit combinations over 35 lbs,
in both flush and downrod mode the safety
cable must be installed into the house struc-
ture beams using the 3” lag screws,washers,
and lock washers. provided. Make sure that
when the safety cable is fully extended the
lead wires are longer than the cable and no
stress is placed on the lead wires.
15 Safety cable installation
Safety Cable
Lag Screw
safety
cable
3” lag
screw
lock
washer
washer
