S
PECIFICATIONS
Maximum Heat Output. 40,000 BTU per hour of
cordwood (based on
independent laboratory test
results).
Size of Heated Area.
1,000 to 1,200 square feet.
Firebox Capacity.
1.7 cubic feet or 36 pounds of
wood (The amount and weight
of wood contained per cubic
foot of firebox volume can
vary from 15 to 36 lbs. per
cubic foot depending on type
of wood, moisture content,
packing density and other
factors. As a constant for
comparison and test purposes,
we are assuming 20 lbs. of
seasoned hardwood per cubic
foot of firebox volume).
Maximum Log Length. 18” (46cm) - front door
Height 20.69" (52.5 cm)
Width 24.88” (63.2 cm)
Depth 14.25”(36
cm)
Front Door Size 18" wide x 11.25" high
(45.7 x 28.5 cm)
Stovepipe Size 6" (152 mm) diameter
Metal Chimney 6" (152 mm) inside diameter
Masonry Chimney 6” (15.2cm) inside diameter
(round flue)
8” x 8” (20 x 20cm) (square
flue)
Flue Exit Top exit only
Actual Weight 349 pounds
Crate Dimensions H-38” (97cm) w-32”
(81 cm) L-32” (81 cm)
Castings Finish Painted Matte; and Porcelain
Enamel
(Blue/Black)
Hearthstone Quality Home Heating Products, Inc. ® Morgan Model 8470 4
20.02
40.23
41.84
28.99
23.99
9.04
(COLLAR OUT)
19.26
(SURROUND OUT)
23.8
5.42
(COLLAR IN)
24.84
22.02
20.69
14.16
(SURROUND IN)
Shown with optional Surround Cap accessory kit #94-597051
(matte) 94-5970559 (blue/black)

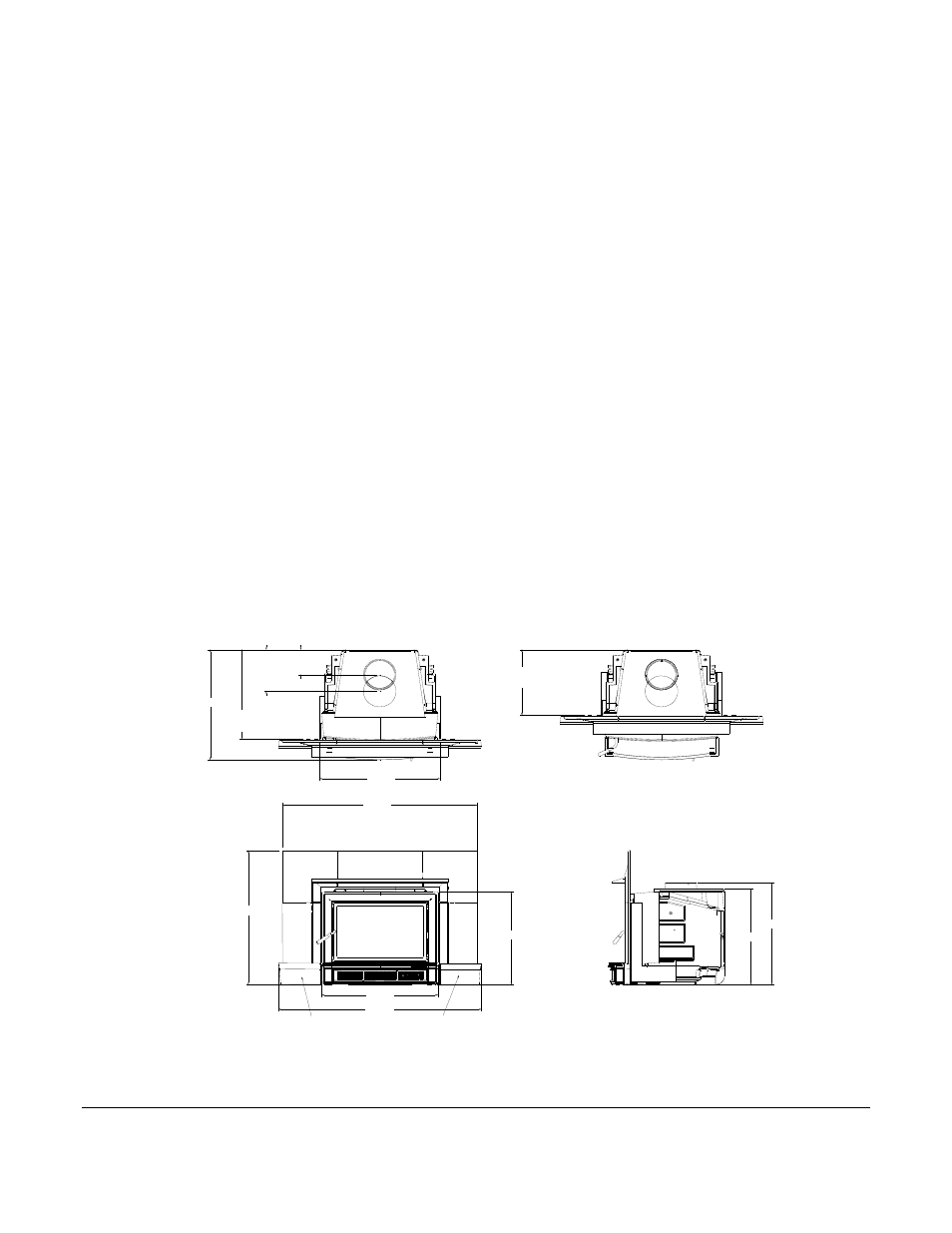

Figure 1 Morgan Dimensions
