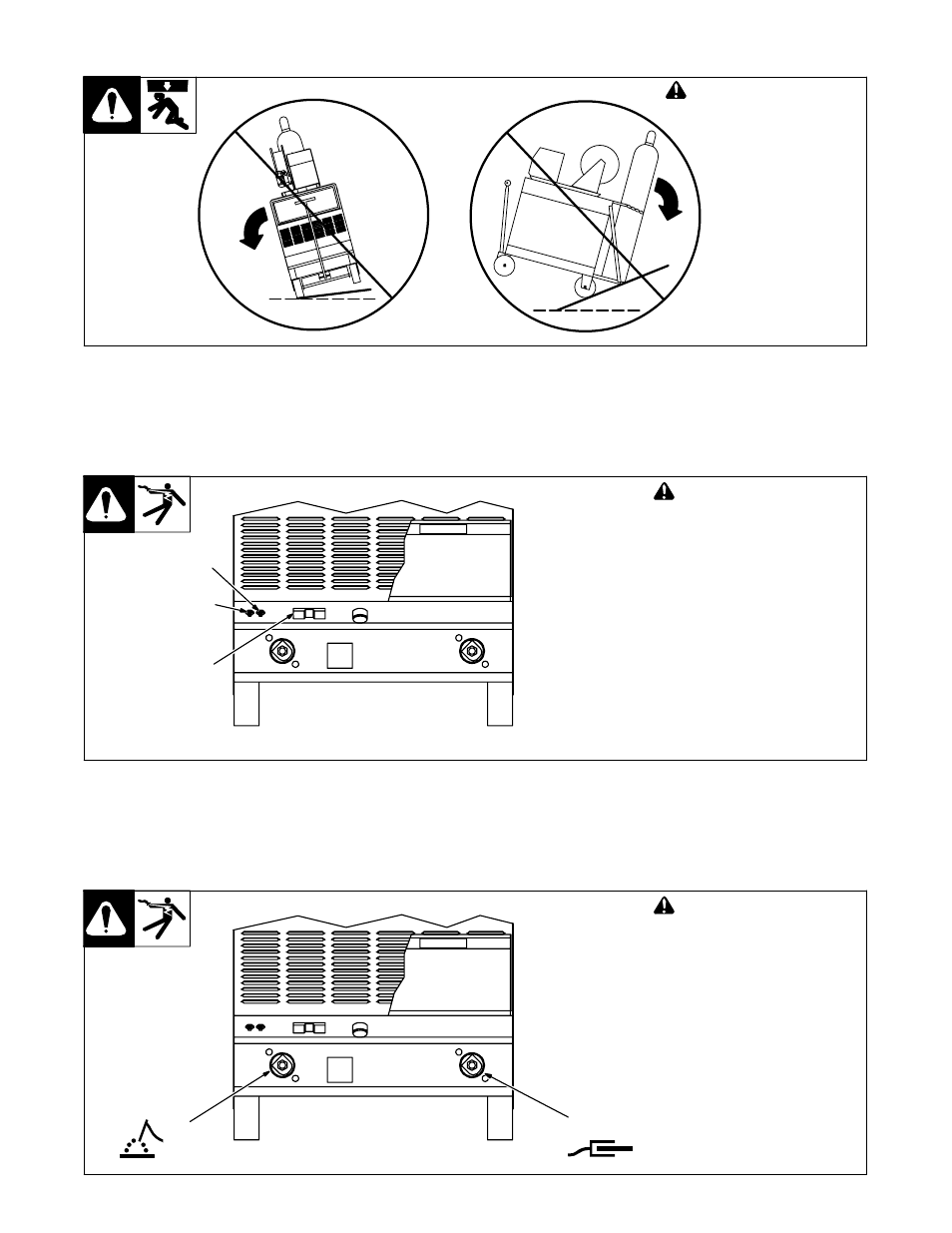

4-6. Tipping
! Do not move or operate unit
where it could tip.
4-7. 115 VAC Receptacle And Supplementary Protectors
Ref. ST-800 101-D
! Turn Off power before
connecting to receptacle.
1 115 V 15 A AC Receptacle
RC9
Power is shared between RC9 and
Remote 14 receptacle RC8 (see
Section 4-12).
2
Supplementary Protector CB1
3 Supplementary Protector CB2
CB1 protects the 115 volts ac por-
tion of RC8 and RC9 from overload.
CB2 protects the 24 volts ac portion
of RC8.
Press button to reset protector.
1
3
2
4-8. Weld Output Terminals
Ref. ST-800 101-D
! Turn Off power before
connecting to weld output
receptacle.
1 Electrode Output Terminal
2 Work Output Terminal
1 2
