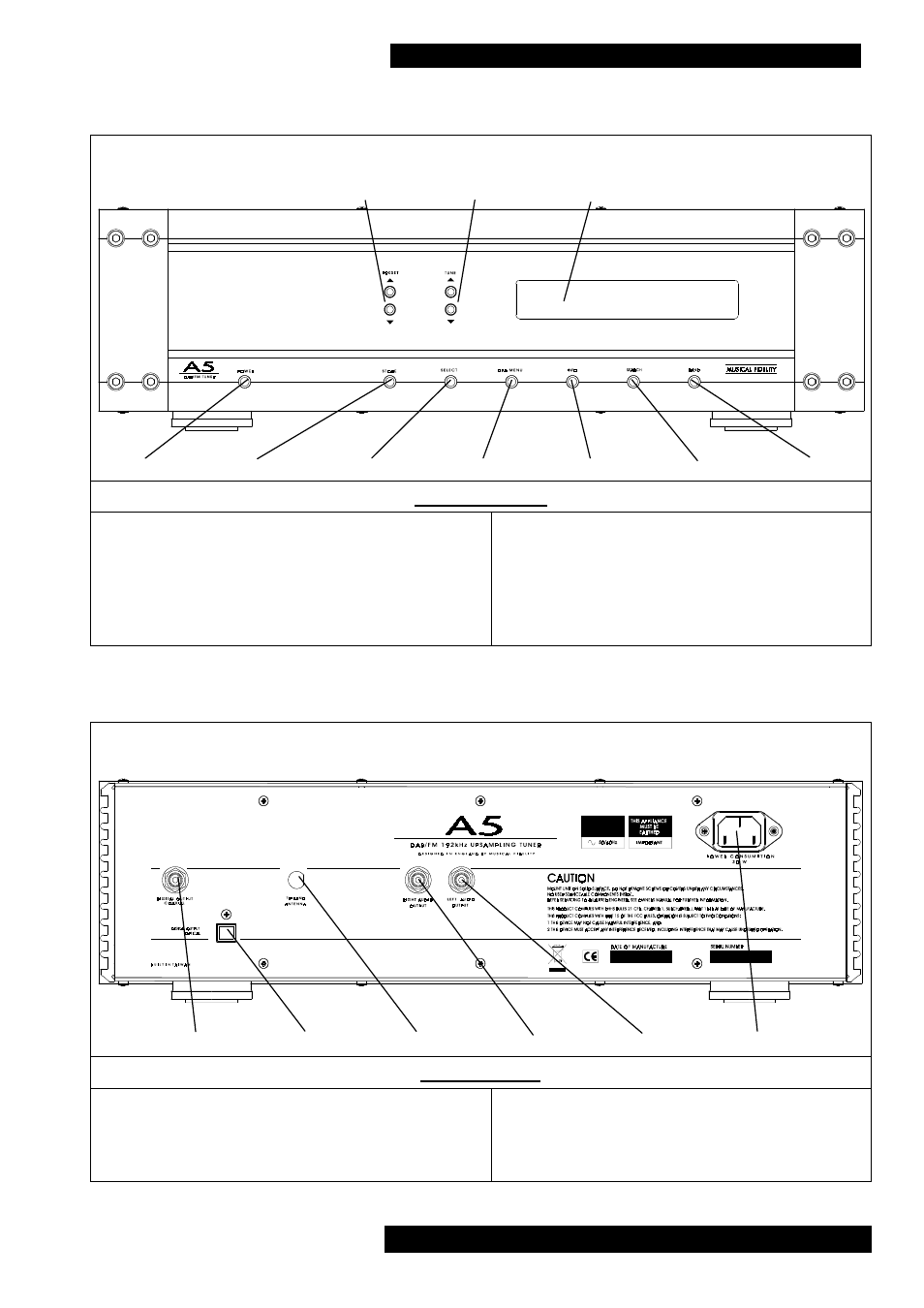

CONNECTIONS and FACILITIES
8 9 10
1 2 3 4 5 6 7
FRONT PANEL
1 POWER mains on/off switch
2 STORE button
3 SELECT button
4 DAB Menu button
5 INFO button
6 SEARCH button
7 BAND button
8 PRESET up/down buttons
9 TUNE –up/down buttons
10 DISPLAY and IR Remote control window
1 2 3 4 5 6
REAR PANEL
1 COAX digital output
2 OPTICAL digital output
3 F-TYPE connector for DAB and FM aerial
4 PHONO line out RIGHT
5 PHONO line out LEFT
6 IEC Mains inlet socket
