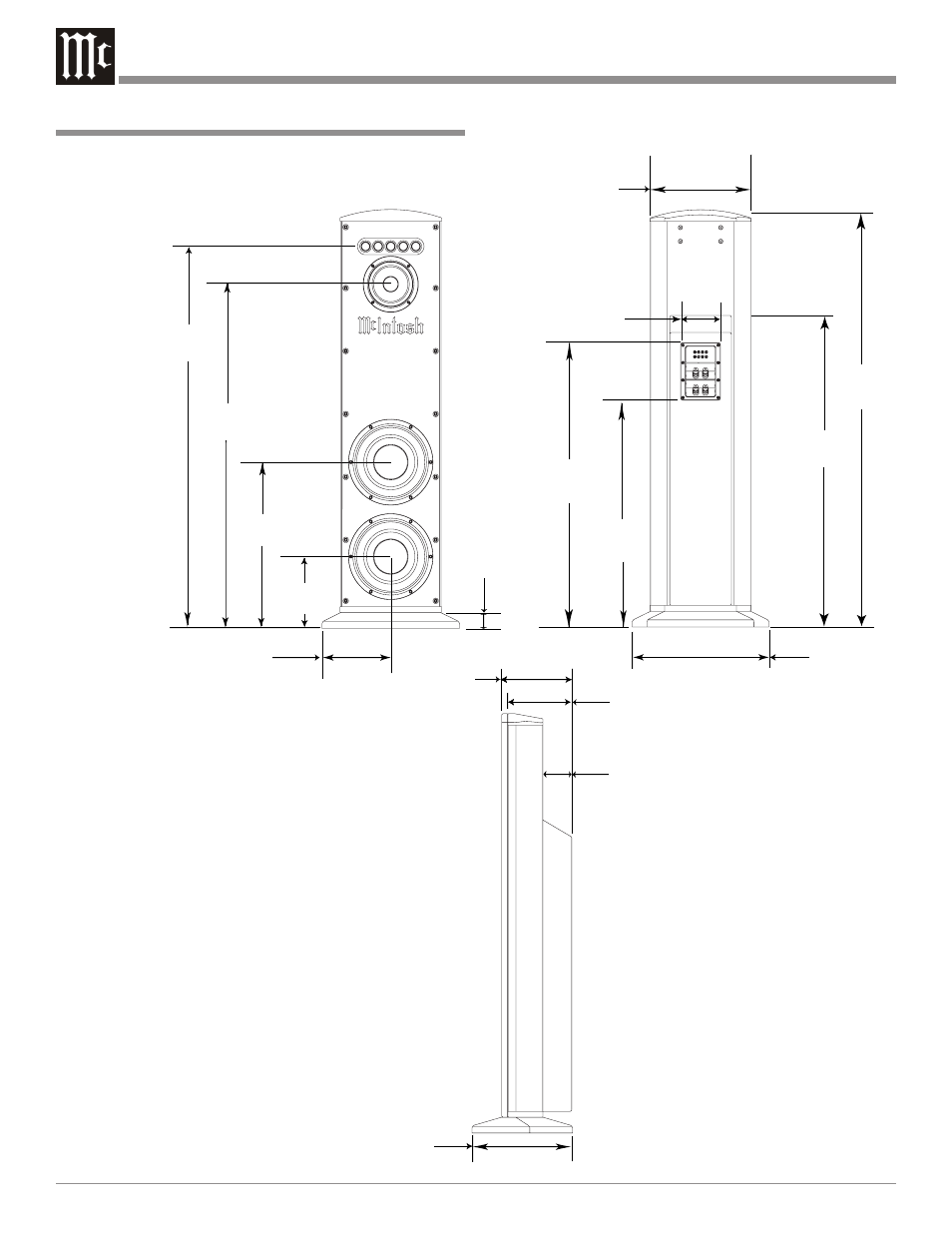

The following dimensions can assist in determining the
best location for the XLS360 or XCS350 Loudspeaker Sys-
tem. There is additional information on page 18 pertaining
to installing the Loudspeaker.
Dimensions, con’t
Front View of
XLS360 with
Grille Removed Rear View of
XLS360
Side View of
XLS360 Note: The XLS360 is supplied
with optional adjustable
feet, four Tiptoes and four
Glides. If they are used
with the XLS360 please
allow for the added
height.
