Magic Chef MCBR1020W - Manual (Page 7)

7

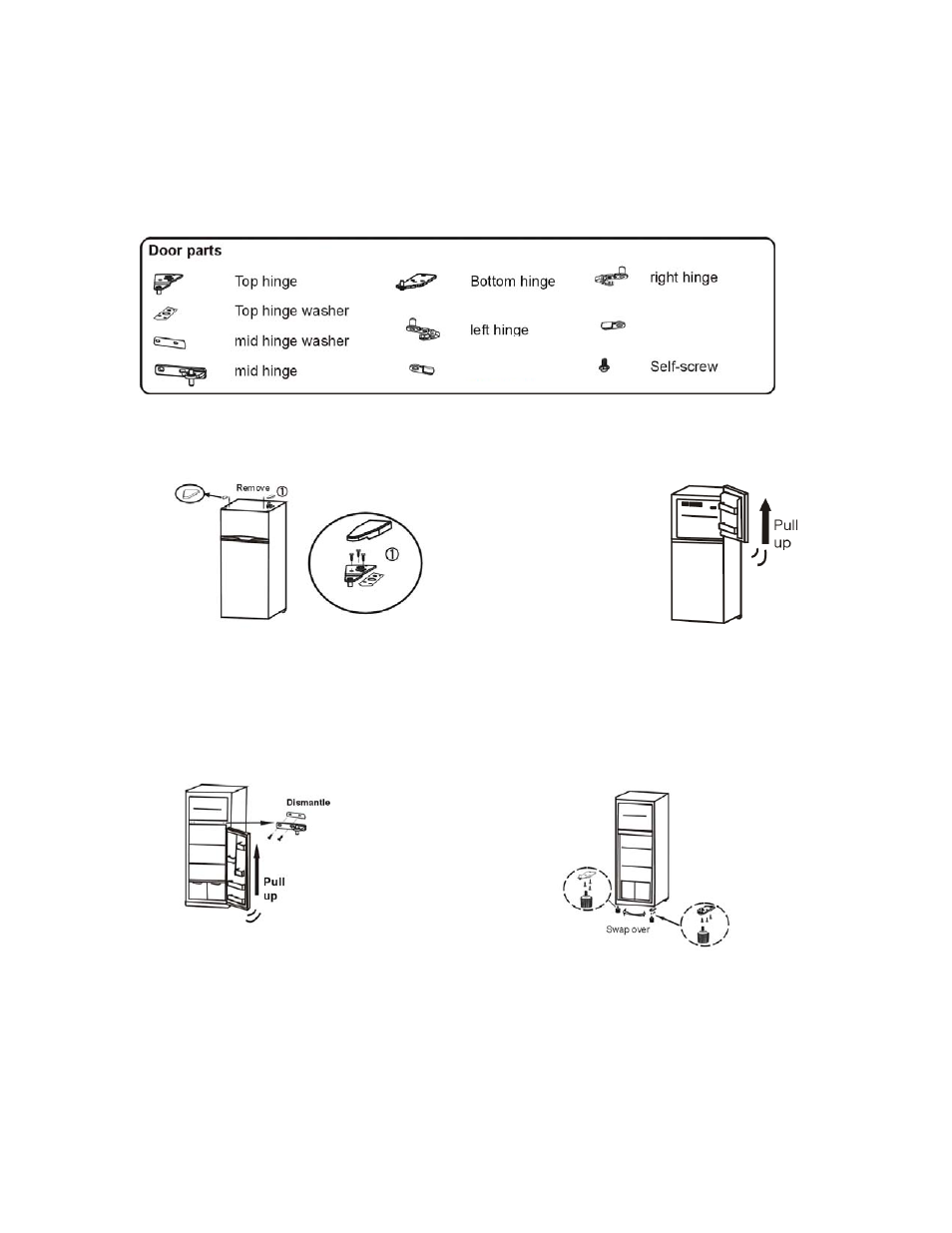

Changing the Reversible Door
Before reversing the door swing, ensure the appliance is unplugged and empty. Provide
additional support for the doors while hinges are being removed. Do not depend on the
door magnets to hold the door in place. It is recommended that two people perform this
task. DO NOT lay the appliance completely flat as this may damage the coolant system.
Step 1 Step 2
Step 3 Step 4
Remove the hinge cover. Unscrew
and remove the top hinge. Lift the freezer door up and away
from the appliance.
Remove the screws from the middle
hinge. Lift the refrigerator door up
and away from the appliance. Remove the bottom hinge by removing the
leveling leg and screws on the bottom of the
refrigerator cabinet. To reattach the hinge on
the opposite side of the cabinet, first remove
the leveling leg. Reattach the hinge using the
screws that were previously removed.
Reattach both leveling legs.
Left door closer
Right door closer
