9

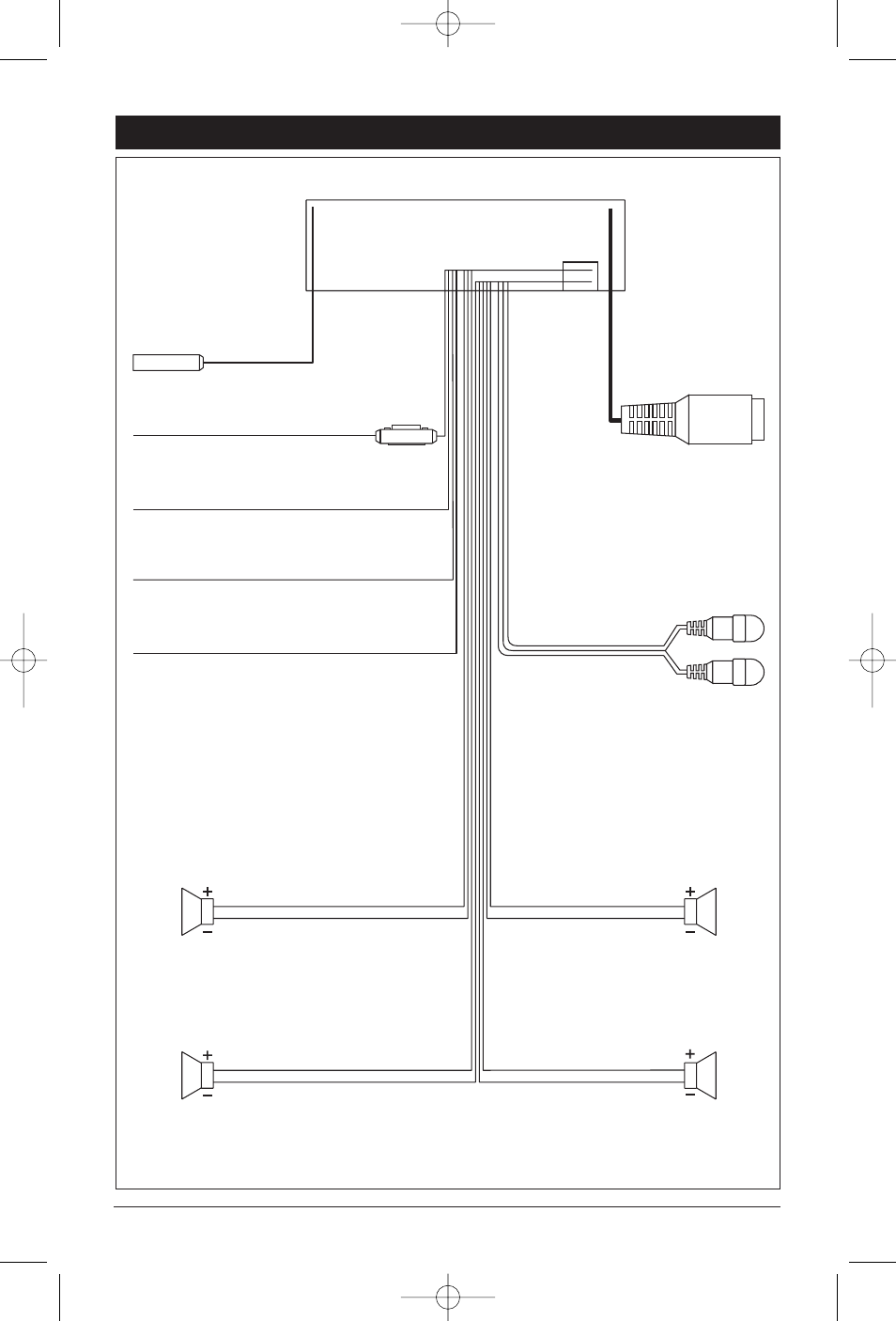

Wiring Diagram
M3200CD
White Wire
White Wire with Black Stripe
Left
Front
Speaker
Green Wire
Green Wire with Black Stripe
Left
Rear
Speaker
Gray Wire
Gray Wire with Black Stripe
Violet Wire
Violet Wire with Black Stripe
Right
Front
Speaker
Right
Rear
Speaker
Antenna Socket
Red
Right
Channel
White
Left
Channel
Audio Line Output
Blue Wire
Power Antenna (Switched 12v out)
Black Wire
Ground (B-)
Yellow Wire
Battery (+12v in)
Red Wire
Ignition Switch (+12v in )
8-Pin Din
Connector
External
CD Changer
