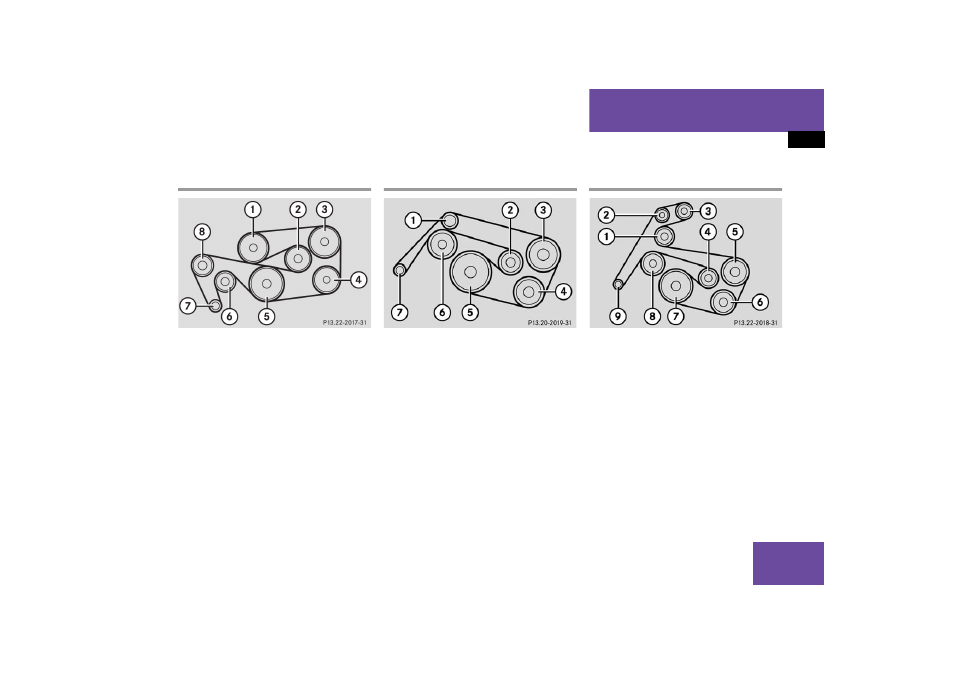

Layout of poly-V-belt drive
Layout of poly-V-belt drive
SLK 230 Kompressor
The SLK 230 Kompressor has two
poly-V-belts.
1 Coolant pump
2 Idler pulley
3 Power steering pump
4 Air conditioner compressor
5 Crankshaft
6 Idler pulley
7 Generator (alternator)
8 Supercharger
SLK 320
1 Idler pulley
2 Automatic belt tensioner
3 Power steering pump
4 Air conditioner compressor
5 Crankshaft
6 Coolant pump
7 Generator (alternator)
SLK 32 AMG
1 Idler pulley
2 Idler pulley
3 Supercharger
4 Automatic belt tensioner
5 Power steering pump
6 Air conditioner compressor
7 Crankshaft
8 Coolant pump
9 Generator (alternator)
