224
Practical hints
Replacing bulbs
Parking, standing and turn signal lamp
̈ Switch off the lights.
̈ Open the hood ( ୴ page 171).

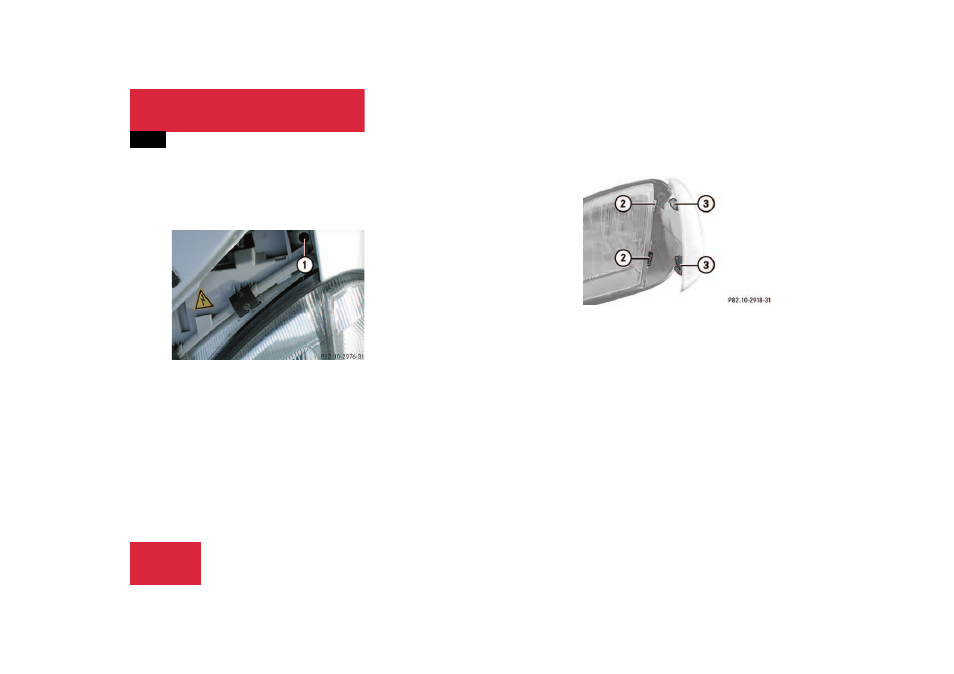

1 Release opening
̈ Insert the screwdriver from the vehicle
tool kit into release opening 1.
̈ Press the top of the screwdriver toward
the middle of the vehicle and toward
the rear.
The turn signal lamp will be lifted out.
̈ Pull the turn signal lamp slightly out of
its mounting.
̈ Pull off the electrical connector from
the turn signal lamp.
You can now take the turn signal lamp
completely out of its mounting.
̈ Twist bulb socket counterclockwise
and pull out.
̈ Gently push bulb into socket, turn
counterclockwise and remove.
̈ Insert new bulb in socket, push in and
twist clockwise.
̈ Reinstall bulb socket, push in and twist
clockwise.
̈ Plug electrical connector back into the
turn signal lamp.
2 Guides
3 Tabs
̈ Slide the turn signal lamp with tabs 3
into guides 2 and press it toward the
rear into the mounting until it engages.
