OPERATIONAL
ELECTRICAL
M
R
6
0
0
Product Colors
Available
Black
IISS222200 is available in a variety of other
colors with minimum quantity purchase
MECHANICAL
www.metrologic.com
AAssiiaann HHeeaaddqquuaarrtteerrss
EEuurrooppeeaann HHeeaaddqquuaarrtteerrss
TThhee AAm
meerriiccaass HHeeaaddqquuaarrtteerrss
Tel. 65.6842.7155
Tel. 49.89.89019.0
Tel. 1.800.ID.METRO
Metrologic Instruments, Inc.
|
Worldwide Headquarters
90 Coles Road
|
Blackwood, NJ 08012-4683
|
Telephone 856-228-8100
|
Fax 856-228-6673
IS220
TwinScan
TM
www.metrologic.com
Specifications subject to change without notice.
Printed U.S.A., Copyright October 2006
Metrologic, All rights reserved.
Light Source
2 visible laser diodes 650
Laser Power
1.2 mW (peak)
System Interfaces
RS232
SCAN PERFORMANCE
Input Voltage
5 VDC
Power
6 W
Operating Current
1.2A
Laser Class
CDRH & IEC: Class 2 according to IEC 60825-1:1993+
A1:1997+A2:2001
EMC
FCC Class B
Weight
2.5 kg (5.5 lbs)
Mounting
2 ea. PEM, B-M5-2 mounting holes. Can be mounted in any orientation
SSuunnrriissee 22000055 CCoom
mpplliiaanntt
ENVIRONMENTAL
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-40°C to 60°C (-40°F to 140°F)
Humidity
5% to 95% relative humidity, non-condensing
IP Rating
IP 54
Ventilation
None required
71 mm
(2.8”)
150 mm
(5.9”)
292 mm
(11.5”)

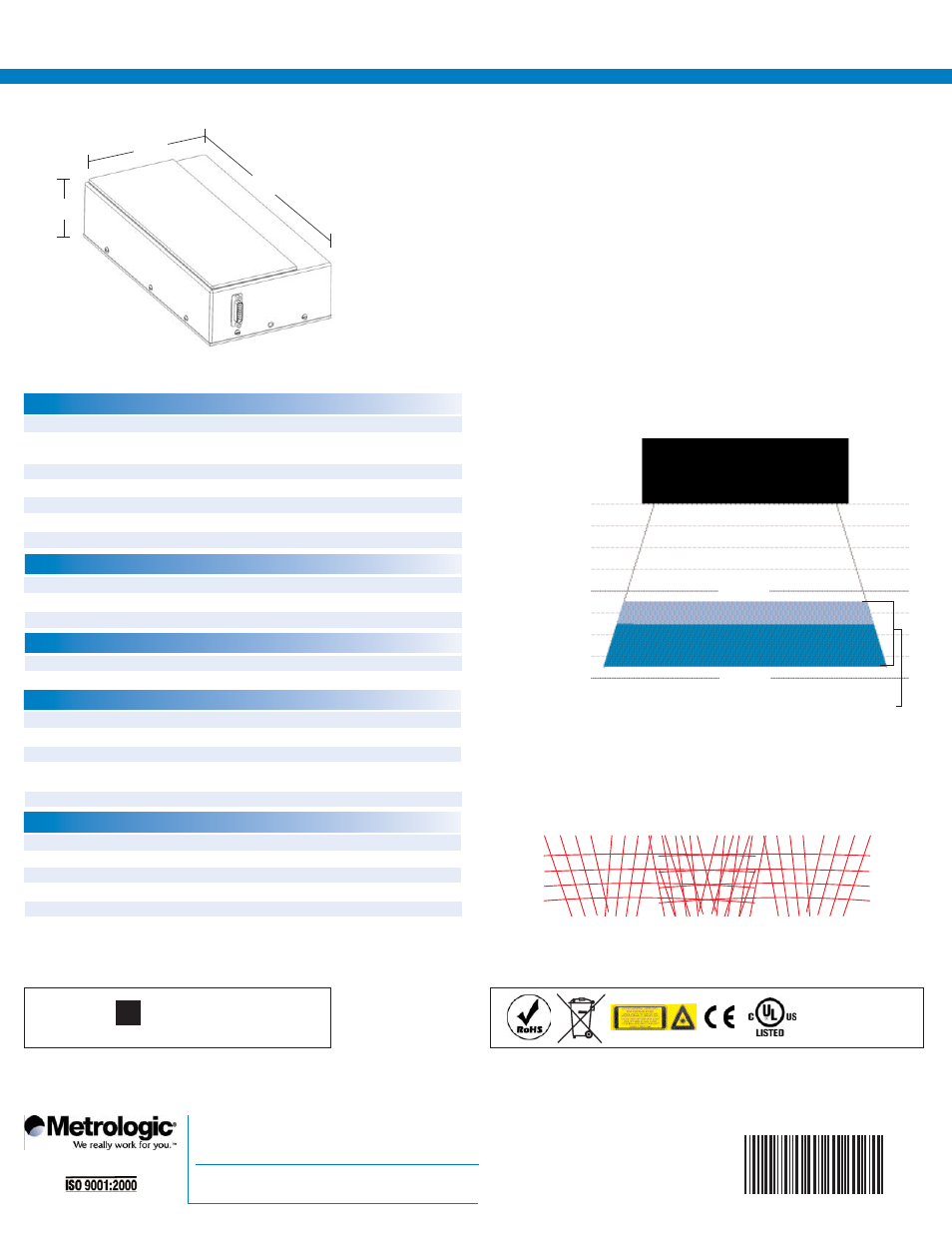

Scan Pattern
Scan Area
0 mm (0”)
25 mm (1”)
51 mm (2”)
76 mm (3”)
102 mm (4”)
127 mm (5”)
152 mm (6”)
178 mm (7”)
203 mm (8”)
IS220
0.23 mm - 0.66 mm
(9 mil - 26 mil)
bar codes
0.20 mm (8 mil) bar code
Depth of Scan Field
115 mm-190 mm (4.5”-7.5”)
Width of Scan Field
270 mm @ 115 mm (10.6” @ 4.5”);
330 mm @ 190 mm (13” @ 7.5”)
Scan Speed
4,000 scan lines per second
Scan Pattern
2 interlocking patterns of 20 lines each
Minimum Bar Width
0.2 mm (8 mil)
Decode Capability
Autodiscriminates all standard 1D bar codes
Print Contrast
35% minimum reflectance difference
270 mm
330 mm
