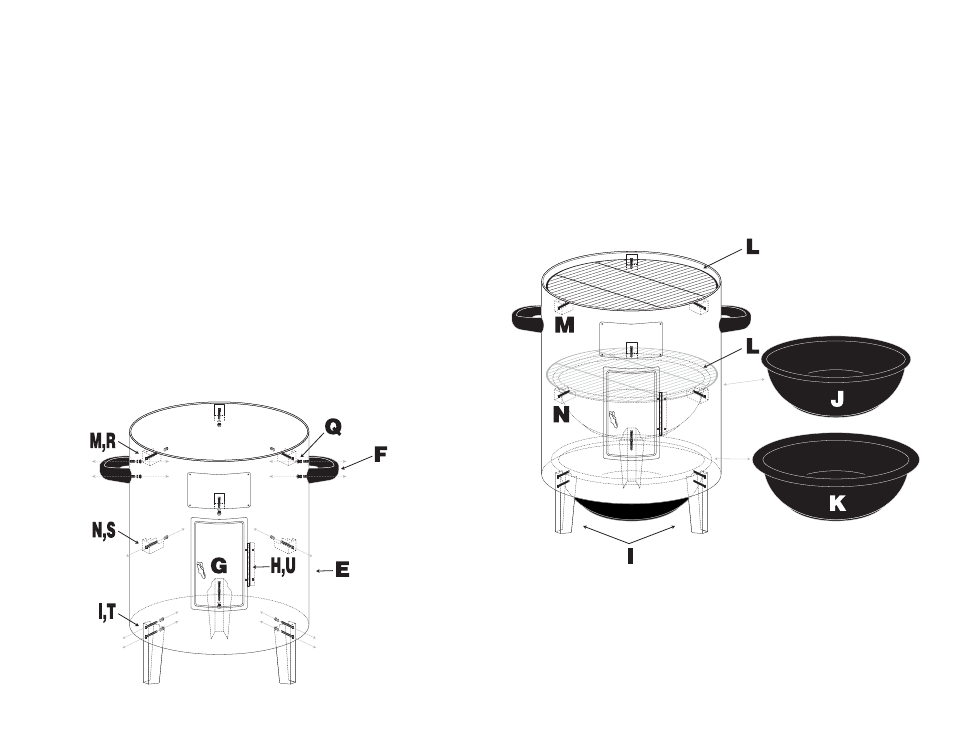

STEP 2:
Body Assembly

FIRST

, place the Charcoal Bowl

K

, on the top of the Legs

I

. Place the Water

Bowl

J

on the Water Bowl Brackets

N

.

LAST

, place one Grill Rack

L

on the Grill Rack Brackets

M

, and place one Grill

Rack

L

on the Water Bowl Brackets

N

.

NOTE:

Do not completely tighten screws until the assembly is complete.

For easier assembly we recommend two people assemble this product.

STEP 1:
Body & Leg Assembly

FIRST

, Mount Legs

I

, to the Body

E

using six Bolts, Nuts and Washers

T

(two

sets for each leg).

NEXT

, Mount three Water Bowl Brackets

N

, to the Body

E

using three Bolts,

Nuts and Washers

S

(one set for each leg).

Mount three Grill Brackets

N

, to the Body

E

using three Bolts, Nuts and Washers

R

(one set for each leg).

Last

, mount Handles

F

to Middle Body

E

with Short Silver Bolts, Washers, Lock

Washers and Nuts

Q

(two for each handle).

Mount Charcoal Door With Handle

G

, to the Body

E

, using Charcoal Door Hinge

H

, and four Charcoal Door Nuts and Bolts

U

.

NOTE:

Do not completely tighten screws until the assembly is complete.

For easier assembly we recommend two people assemble this product.
