Monster Power PowerCenter HTFS 450 User Manual

Page 15

Step 1. Attach the bracket (labeled A in the diagram) to the PowerCenter with the two small bolts

included with your PowerCenter.

Step 2. To fasten the mounting plate (labeled B in the diagram) to a wall, use self-tapping drywall

screws in the four holes. For installation on wood walls, mark the holes on the wall with a

pencil and drill tap holes before inserting screws.

Step 3. To attach the HTFS 450 to a metal ﬂ at screen TV mount, use two properly sized nuts and

bolts inserted through the wide slot on the mounting plate (labeled C in the diagram).

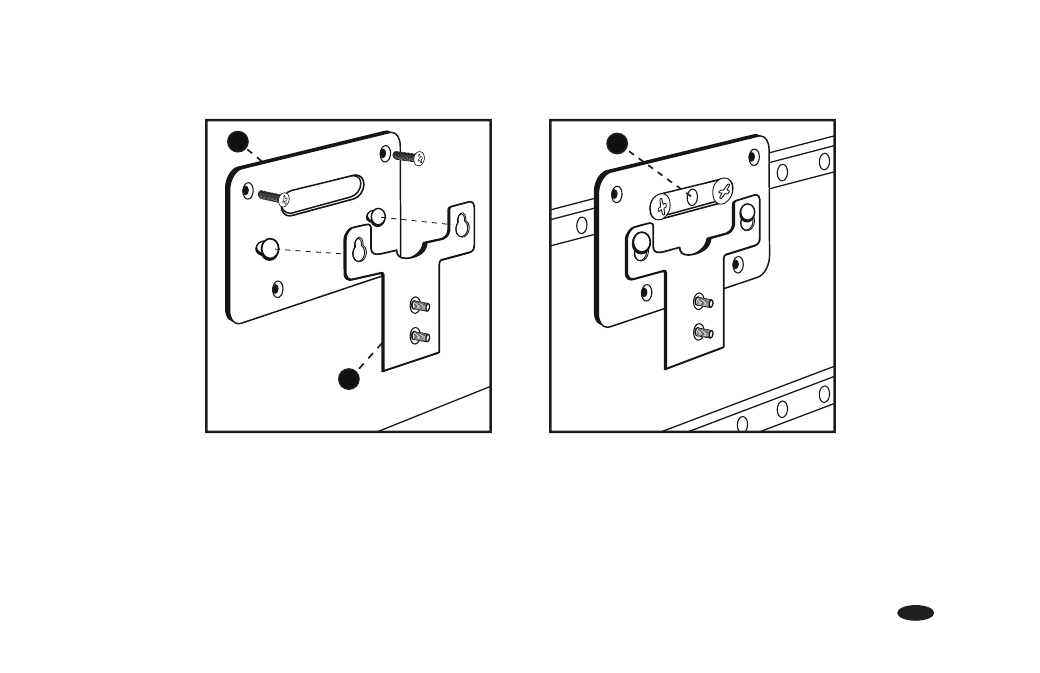

HTFS 450 Mounting Instructions

Step 2.
Mounting to wall

Step 3.
Attachment to
metal TV mount
