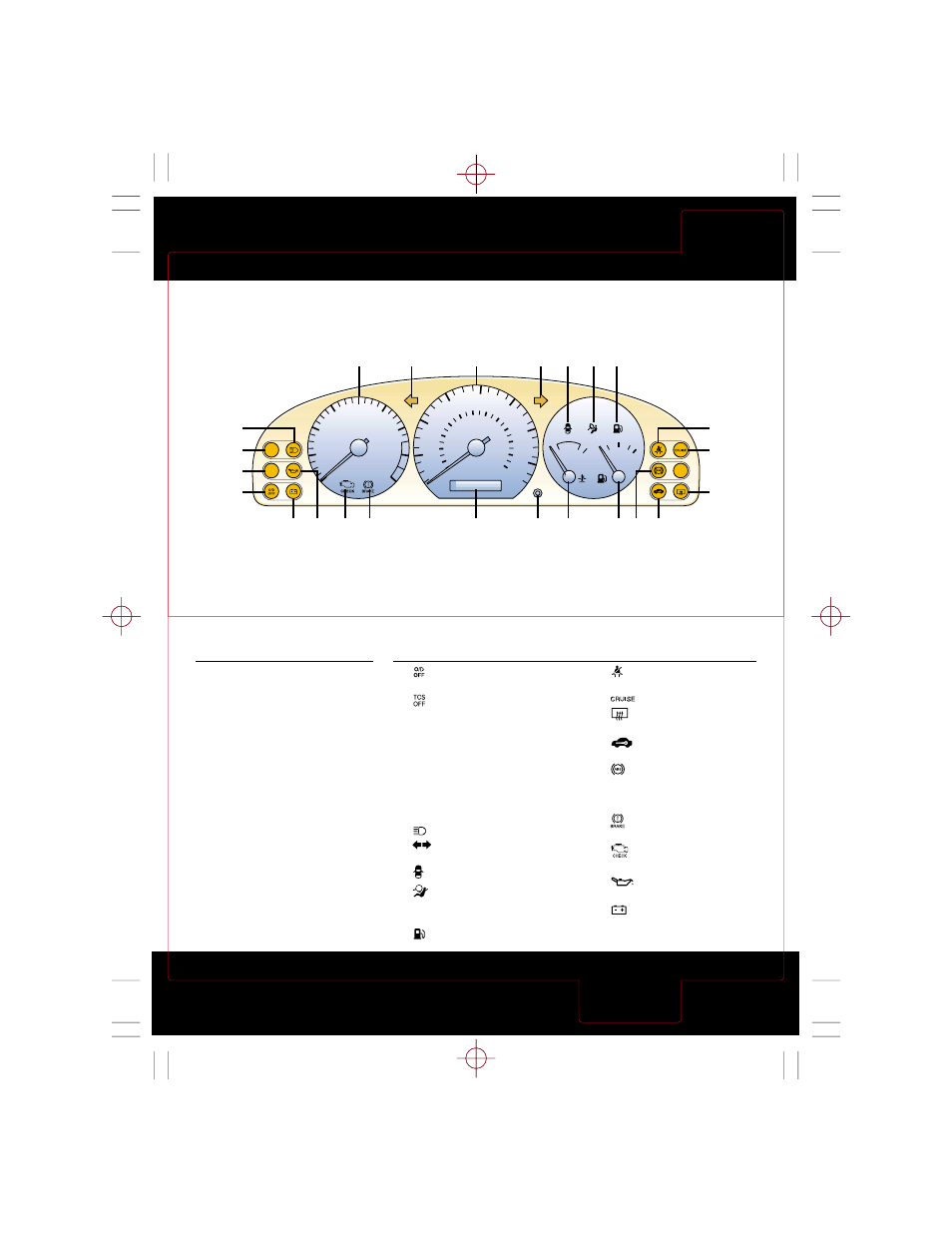

I N S T R U M E N T C L U S T E R
Always check the Owner’s Manual for more operating information and safety features
Instrument
Cluster
Instrument
Cluster
Quick Tips Mazda 626 page 4
page 5
Revised October 27, 2000
8
7
9 16
17
10 15
km/h
MPH X 1000r/min
20
0
0
1
2
3
4
5
6
7
8
40
60
80
100
120
140 C H E F 20
40
60
80
100 120 140
160
180
200
220
240
0 TCS
OFF
TRIP
ODO
TCS
2 11 12 14 11 1 13
3 20 21 23 22 18 19 4 5 6
15. Always fasten
safety belts
16. Cruise control on
17. Rear window
defogger on
18. Immobilizer system on,
see Driver’s View
19. Anti-lock Brake System
(ABS)*
ABS malfunction, normal brakes
only, dealer inspection required
20. Brake system
Parking brake on/low fluid level
21. Check engine
Dealer inspection required
22. Engine oil pressure
warning light
23. Charging system
warning light
Dealer inspection required
WARNING LIGHTS
7. Overdrive off indicator*,
see Transmission
8. Traction Control
System* off,
System turned off manually
or malfunctioning, dealer
inspection required
9. TCS Traction Control
System*,
Light flashes when in use;
dealer inspection required if
light remains on
10. High beams on
11. Turn signals/hazard
warning on
12. Door ajar
13. Air bag readiness
Air bag malfunction, dealer
inspection required
14. Low fuel
GAUGES
1. Tachometer
2. Speedometer
3. Odometer/trip odometer
4. Odometer/trip odometer
selector
Press to select among trip A,
trip B, and odometer
Press and hold to reset selected
trip meter
5. Engine coolant
temperature gauge
If above normal range, stop
vehicle and turn off engine,
check coolant level when safe
6. Fuel gauge
*Denotes optional equipment
