Characteristics
(1) values for operation at 50%, 66% and 100% rated output
Catalog numbers EXtreme 700 C EXtreme 1000 C EXtreme 1500 C
Format Tower Rack Tower Rack Tower Rack
UPS 66345 66351 66346 66352 66347 66353
Warranty + for UPS 66813 66813 66818 66818 66818 66818
Pulsar EXB 66348 66354 66349 66355 66350 66356
Warranty + for Pulsar EXB 66813 66813 66813 66813 66813 66813
Pulsar EXtreme 1500 transformer 66357
Pulsar EXtreme 1500 CLA 66359 66358
Warranty + for Pulsar CLA 66818 66818

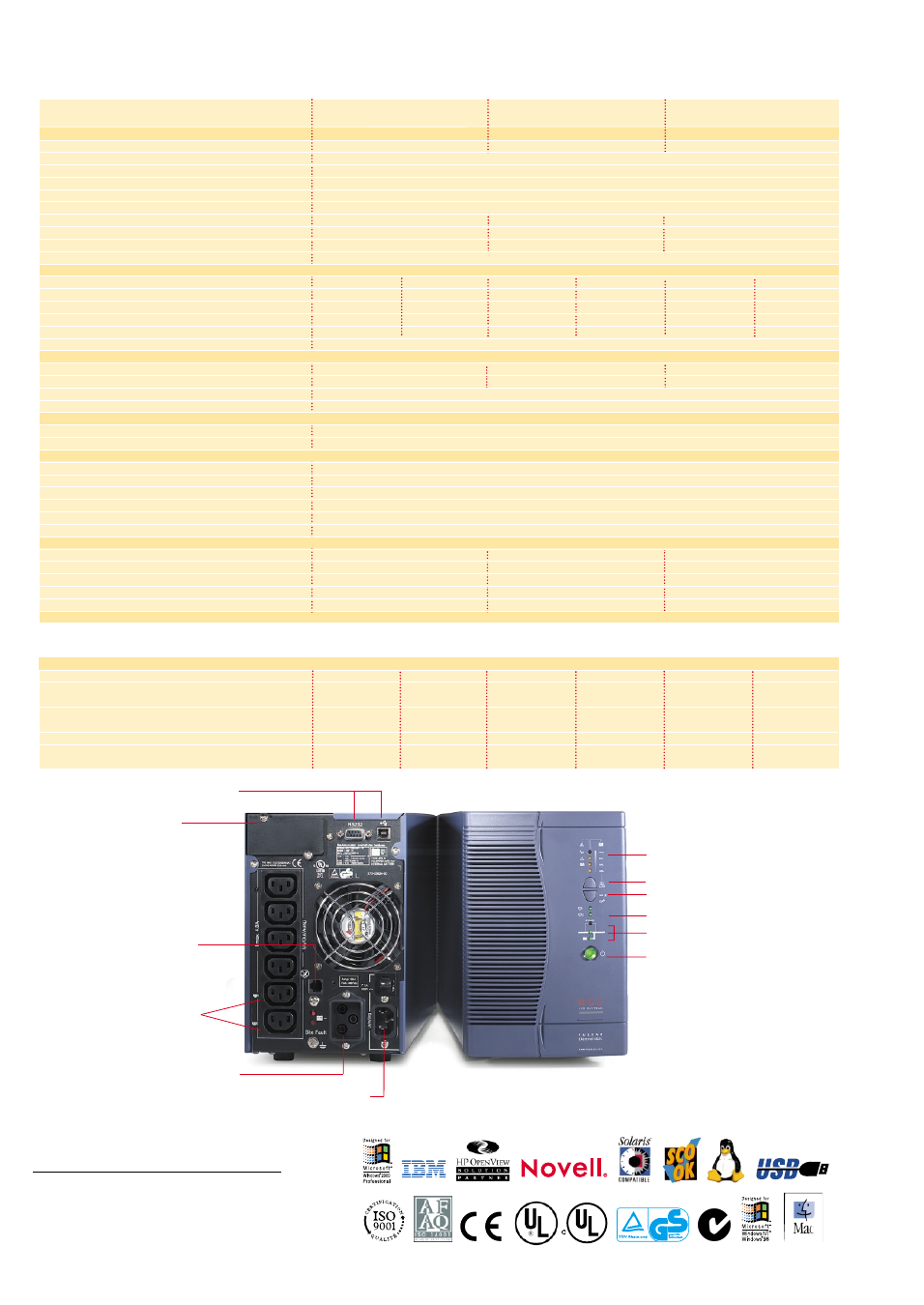

slot for a communication
card
RS232 and USB communications ports
2 programmable outlets
AC input connector
ON/OFF
operation on bypass, in ON-LINE mode
or on battery
status of programmable outlets 1 and 2
lamp test or buzzer off
forced transfer to and from bypass
press and hold to display percent load
alarm and battery level indicators
connectors for Pulsar EXB battery
extension modules
Pulsar EXtreme 700 C 1000 C 1500 C
General
Power (Pn) 700 VA / 490 W 1000 VA / 700 W 1500 VA / 1050 W
Input-voltage range 120/140/160 to 276 volts without using battery power (1)
Frequency range 50/60 Hz (auto-selection)
Power factor (THDI) >0.95 (< 5%)
Sinusoïdal output voltage 200/208/220/230/240 Volts
Harmonic distortion <4% on linear load, <6% on non-linear load
Efficiency 85% 87% 88%
Crest factor 3:1 3:1 3:1
Short circuit current (A) 25 29 29
Overload capacity (Online mode) 110% permanent, 130% 12s, >130% 1.5s
Batteries
Backup time 100% Pn 50% Pn 100% Pn 50% Pn 100% Pn 50% Pn
Standard 7 14 7 17 6 19
Pulsar EXtreme C + 1 Pulsar EXB 24 47 27 59 24 79
Pulsar EXtreme C + 2 Pulsar EXB 41 82 47 93 43 119
Pulsar EXtreme C + 3 Pulsar EXB 53 124 64 136 62 168
Automatic battery test Yes, at regular intervals without risk of interrupting protected applications
Communicatio n
USB port yes yes yes
RS232 port yes yes yes
Optional cards SNMP card
status information card
Environment
Acoustic noise < 40 dBA
Operating temperature 0 to 40°C
Standards and certifications
Performance EN 50091-3/IEC 62040-3
Safety EN 50091-1, EN 60950 (RD/), IEC 60950
EMC EN 50091-2/IEC 62040-2, EN 55022/B, FCC 47 part 15 - Subpart B - Class A,
IEC 61000-4-2/-3/-4/-5/-6/-8/-11, IEC 61000-3-2/-3
Marking and certifications CE,TÜV/GS, UL, cUL, C-Tick
Design and manufacture ISO 9001
Dimensions (HxWxD in mm) and Weight (Kg)
UPS (electronics + battery) Tower 235.5x145x400 235.5x145x400 235.5x145x505
Rack 88(2U)x482.6x430 88(2U)x482.6x430 88(2U)x482.6x493
Electronics module Tower/Rack 10/14 12/16 15/20
Battery module Pulsar EXB Tower/Rack 11.5/17 15/21 21/27.5
CLA module (without batteries) Tower/Rack 8.5/11.5
Warranty 2 years, extendable by contract
