WR / WC Series Woodburning Fireplace
20014528
1
2
3
4
5
a
b
c
6
7
8
9
10
948
SR/SC parts
5/16/00 djt
d
12
11
e
MHSC reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without
notice.

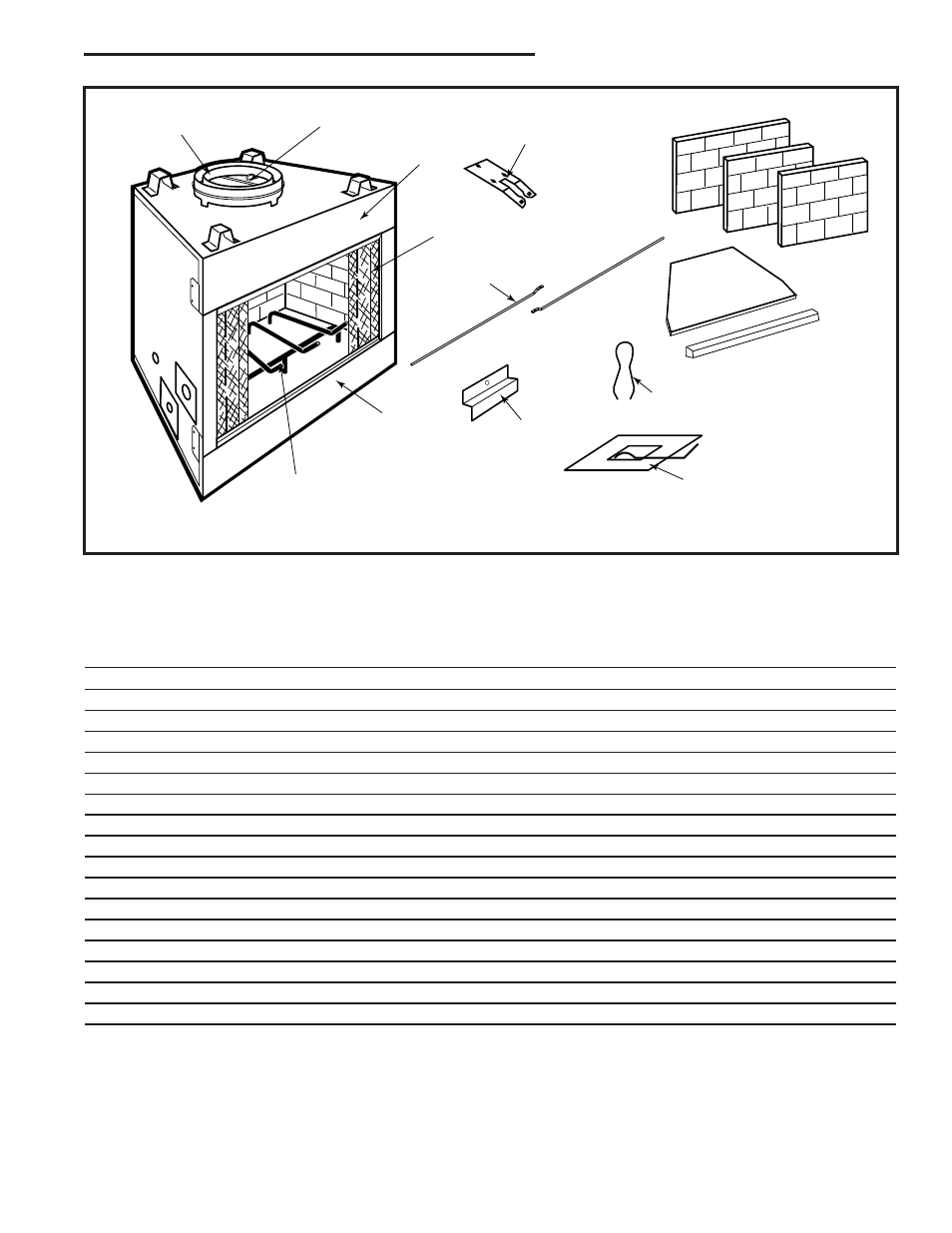

WR400/500, WC400/500 SeRIeS
Ref. Description
WR/WC400
WR/WC500
1. Damper Weld Assembly
RP199
RP199
2. Damper Bracket
3030176
3030176
3. Screen Rod (two per fireplace)
26D0138
61D0500
4. Pull Screen (two per fireplace)
61D0001
070874
5a. Firebrick - Hearth
20005621
20005421
5b. Firebrick - Rear
20005627
20005462
5c. Firebrick - Right Side
20005626
20005461
5d. Firebrick - Left Side
20005625
20005460
5e. Firebrick - Ashlip
20005619
20005418
6. Top Brick Retainers (three per fireplace)
3030172
3030172
7. Cable Clips (two per fireplace)
7512135
7512135
8. Outer Collar Assembly (SK8 Chimney)
3030143
3030143
9. Louvre Assembly (WC Only)
20014484
20014520
10. Louvre Assembly (WC Only)
20014484
20014520
11. Basket Grate
3041130
3041130
12. O.S.A. Assy.
20003076
20003076
