17 114716
OWNER’S MANUAL
14 27001005S Engine Flange 1
15 WLE-4 Lock Washer, 1/4" 4
16 ** Stator 1
17 27001002 Bearing 1
18 27001009S Diode 2
19 ** Rotor 1
20 27001006 Fan 1
21 26327006 Bolt, 5/16-24 x 5/8" 4
22 WLE-5 Lock Washer, 5/16" 4
PARTS AVAILABLE - NOT SHOWN
099866-03 Safety Information Decal 1
099866-04 Safety Information Decal 1
099867-02 Operation Decal 1

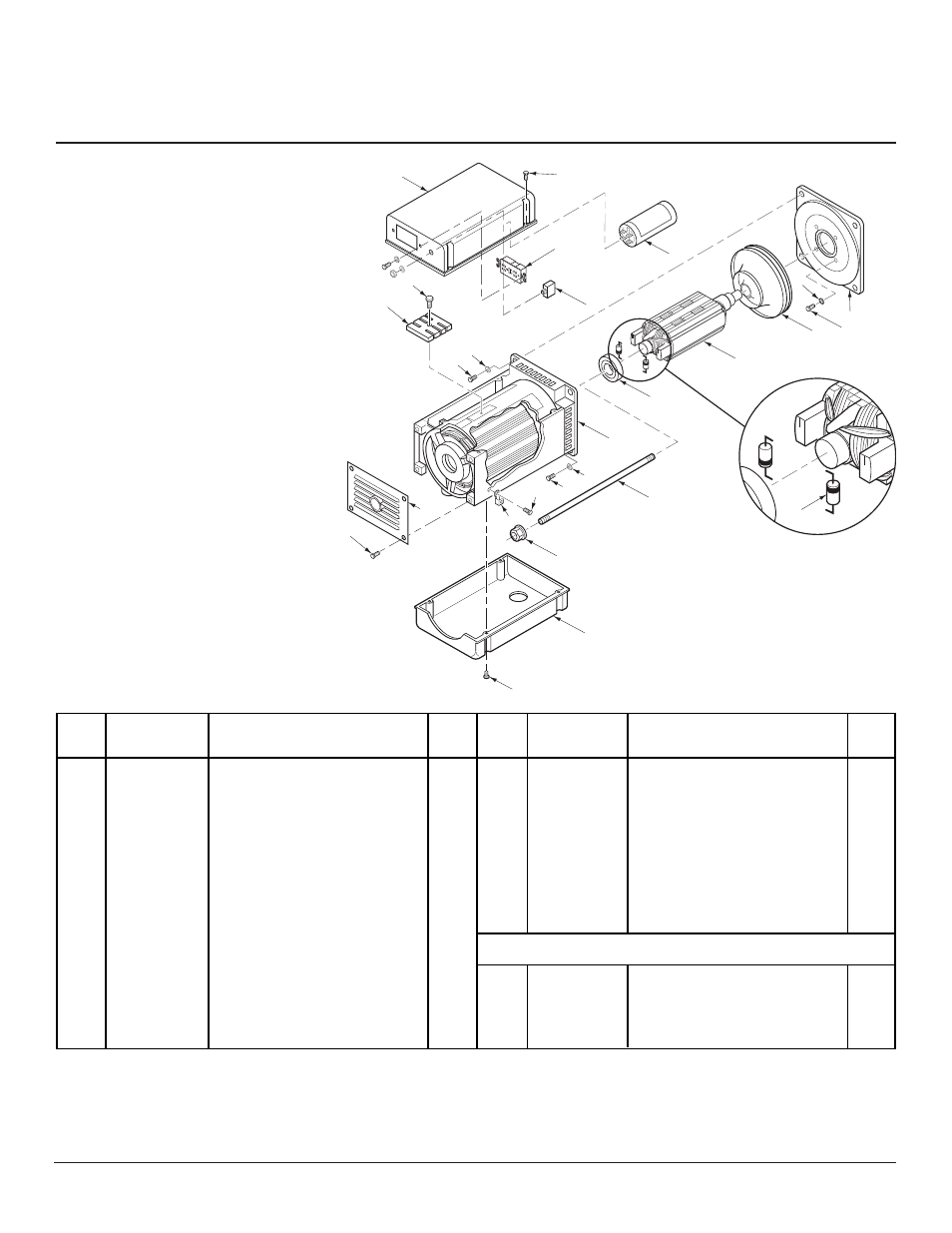

ILLUSTRATED
PARTS LIST
For Model MGR2900 Alternator
Assembly
This list contains replaceable parts used in
your generator. When ordering parts, follow
the instructions listed under Replacement
Parts on page 23 of this manual.
† Includes fastening hardware.
* Includes reference numbers 1 through 22.
** Parts not available. Included in alternator assembly.
‡ Available at any hardware store.
KEY PART
NO. NUMBER DESCRIPTION QTY.
099722-02 Alternator Assembly*
1 100074-01 Top Cover 1
2 100445-01 120V, 15A Duplex (GFCI)
Receptacle † 1
3 22616009 Circuit Breaker, 20 Amp † 1
4 27002002S Capacitor 1
5 ‡ Screw, M4 x 20 1
6 ** Terminal Block 1
7 099701-01 Screw, M5 x 13 13
8 099848-01 End Plate 1
9 17587000 Ground Lug 1
10 099891-01 Flanged Nut, 8mm 1
11 099861-01 Bottom Cover 1
12 099842-01 Draw Bolt 1
13 ‡ Screw, M6 x 16 4
KEY PART
NO. NUMBER DESCRIPTION QTY.
5
6
16
18
17
19
20
14
10
3
8
9
7
12
13
15
13
15
21
22
7
11
7
4
1
2
7
