13
Mono Parallel Hookup Connections
Louds peaker
Impedance Louds peaker Negative
Connection
Louds peaker Pos itive
Connection
1 S (Ohm)
Left and Right Out put 2 S
- (Negative) Connection
Left and Right Output 2 S
+ (Positive) Connection
2 S (Ohm)
Left and Right Out put 4 S
- (Negative) Connection
Left and Right Output 4 S
+ (Positive) Connection
4 S (Ohm)
Left and Right Out put 8 S
- (Negative) Connection
Left and Right Output 8 S
+ (Positive) Connection

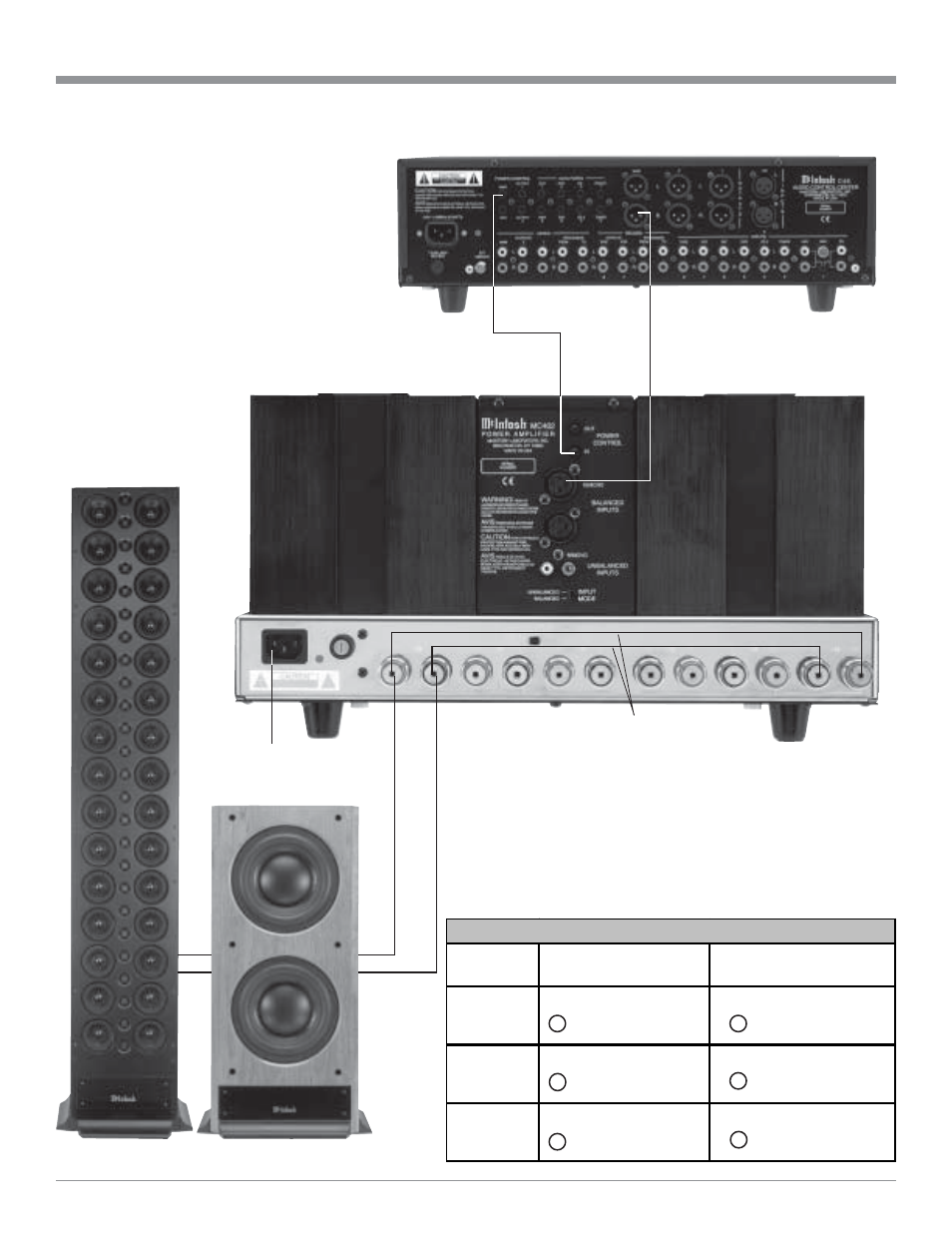

How to Connect for Mono Parallel
To AC
Outlet
Loudspeaker
System
4 ohm
McIntosh Audio Control Center
Jumper
Cables
