6. volt-ampere curves – Miller Electric Big Blue 600D User Manual
Page 16
OM-481 Page 12
3-6.
Volt-Ampere Curves
SB-133 004-A / SB-133 003-A

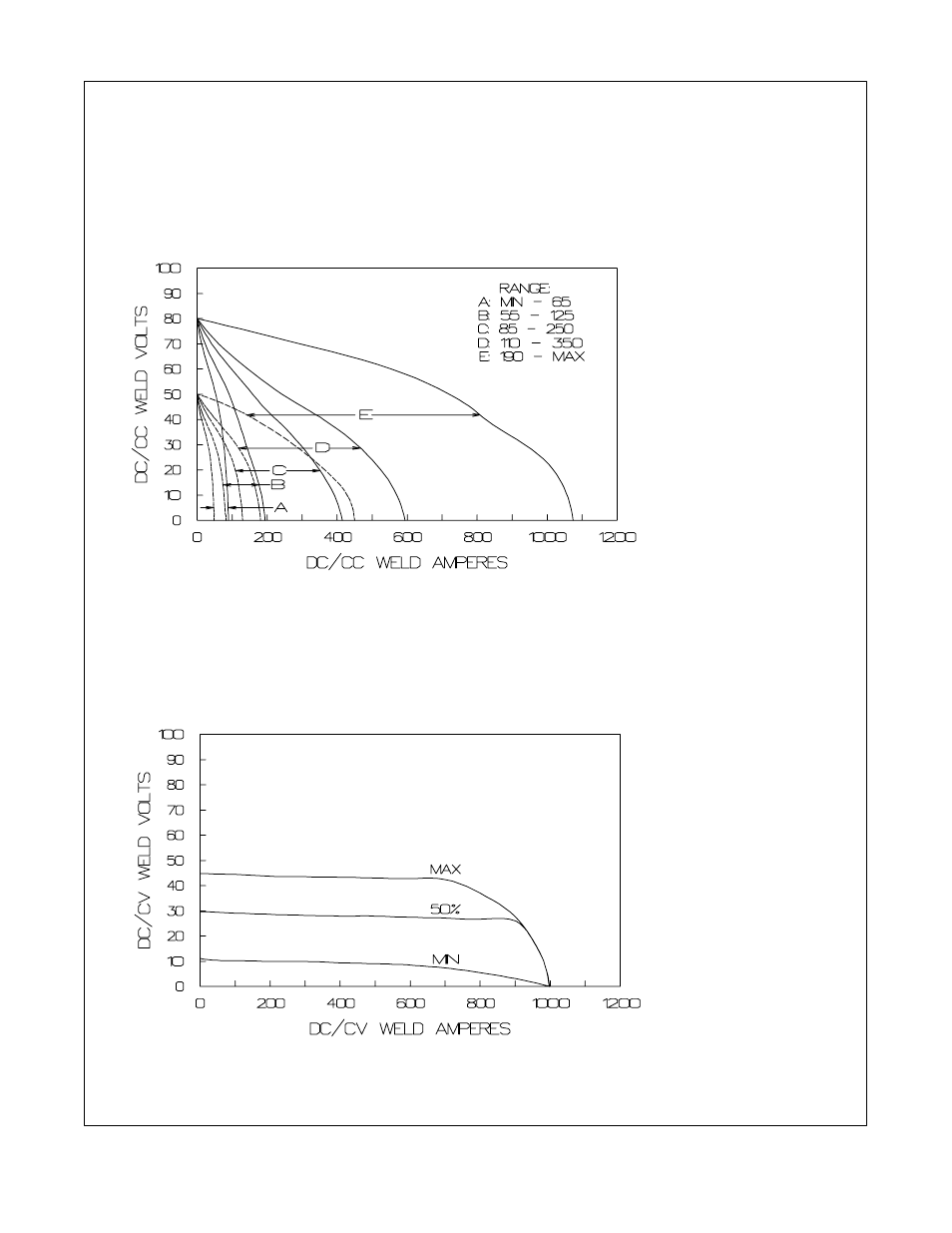

The volt-ampere curve shows the
minimum and maximum voltage
and amperage output capabilities of
the welding generator. Curves of all
other settings fall between the
curves shown.
A. For Constant Current (CC) Mode
B. For Constant Voltage (CV) Mode
