HP6A-LX SERIES
COMBINATION HEATER/PROOFING CABINET, NON-INSULATED
TECHNICAL SPECIFICATIONS
LISTINGS
HOOKUP
BID SPECIFICATIONS
Item no. HP6A-LX.
Provide____________( ) Combination
Heater/Proofing Cabinet, Non-Insulated.
Cabinet will have die-formed, corrosion
resistant aluminum body and door with
14 gauge galvanized caster base. Cabinet
will be provided with bottom mounted, re-
movable, externally controlled, 1900 watt
holding/proofing unit having main on/off
1289-2/13-web
© Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
Via plug in, 9 foot long flexible
three wire 12/3 SJO cord with
molded plug.

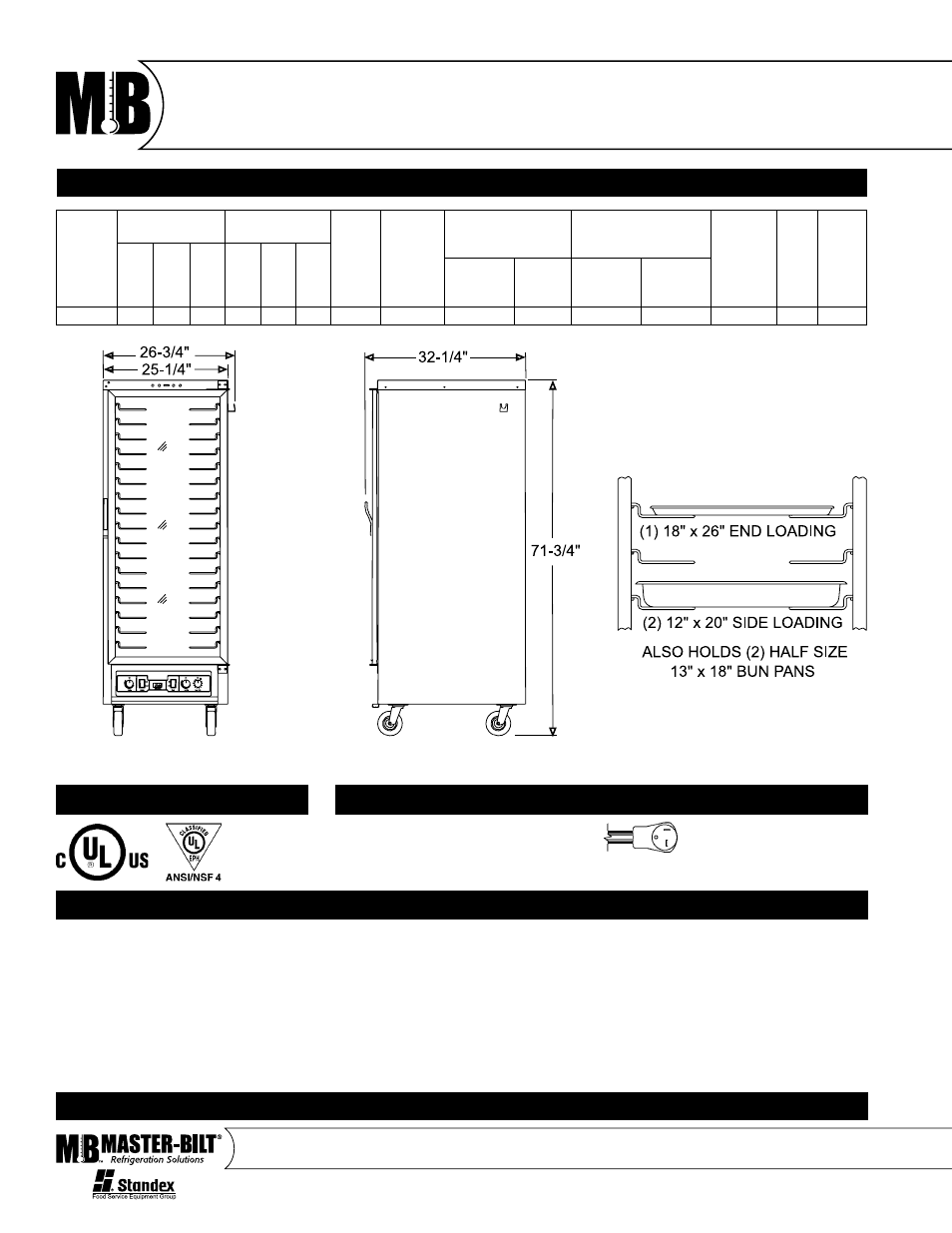

ELEVATION VIEW
SIDE VIEW
switch, dual thermostats, digital thermom-
eter, holding or proofing selector switch
and 12 hour timer for proofing.
Cabinet will have field reversible door
with positive latching handle and gasket,
270° door swing, adjustable damper, drip
trough and louvered air tunnel for even
heat distribution.
Cabinet will be provided with four 5-inch
standard duty swivel plate casters having
modulus wheels. Two casters will have brakes.
Electrical hookup will be via a nine foot
long flexible three wire 12/3 SJO cord with
molded NEMA 5-20P, 115v plug.
Cabinet to have limited one year parts
and labor warranty.
Cabinet to be to be UL and C-UL listed
and UL EPH classified.
NEMA 5-20P, 115V
MODEL
DIMENSIONS
(in.)
DIMENSIONS
(mm)
VOLTS
HEATING
UNIT
WATTS
3" LEDGE SPACING
(BOTTOM LOAD)
PAN CAPACITY
4
1
/
2
" LEDGE SPACING
(BOTTOM LOAD)
PAN CAPACITY
MAX.
CABINET
STATIC
LOAD
(LB/KG)
SHIP
CU.
FT.
SHIP
WT.
(LB/
KG)
L
D
H
L
D
H
18 x 26
END
LOAD
12 x 20
SIDE
LOAD
18 x 26
END
LOAD
12 x 20
SIDE
LOAD
HP6A-LX 26
3
/
4
32
1
/
4
71
3
/
4
679 819 1822
115
1900
17
34
12
24
370/168
44.0 190/86
PAN CONFIGURATION
The above tray/pan sizes can be
loaded in the same cabinet.
