CD Pre 24 Instructions for Use. Page 8 of 19 Issue 4: May 2002

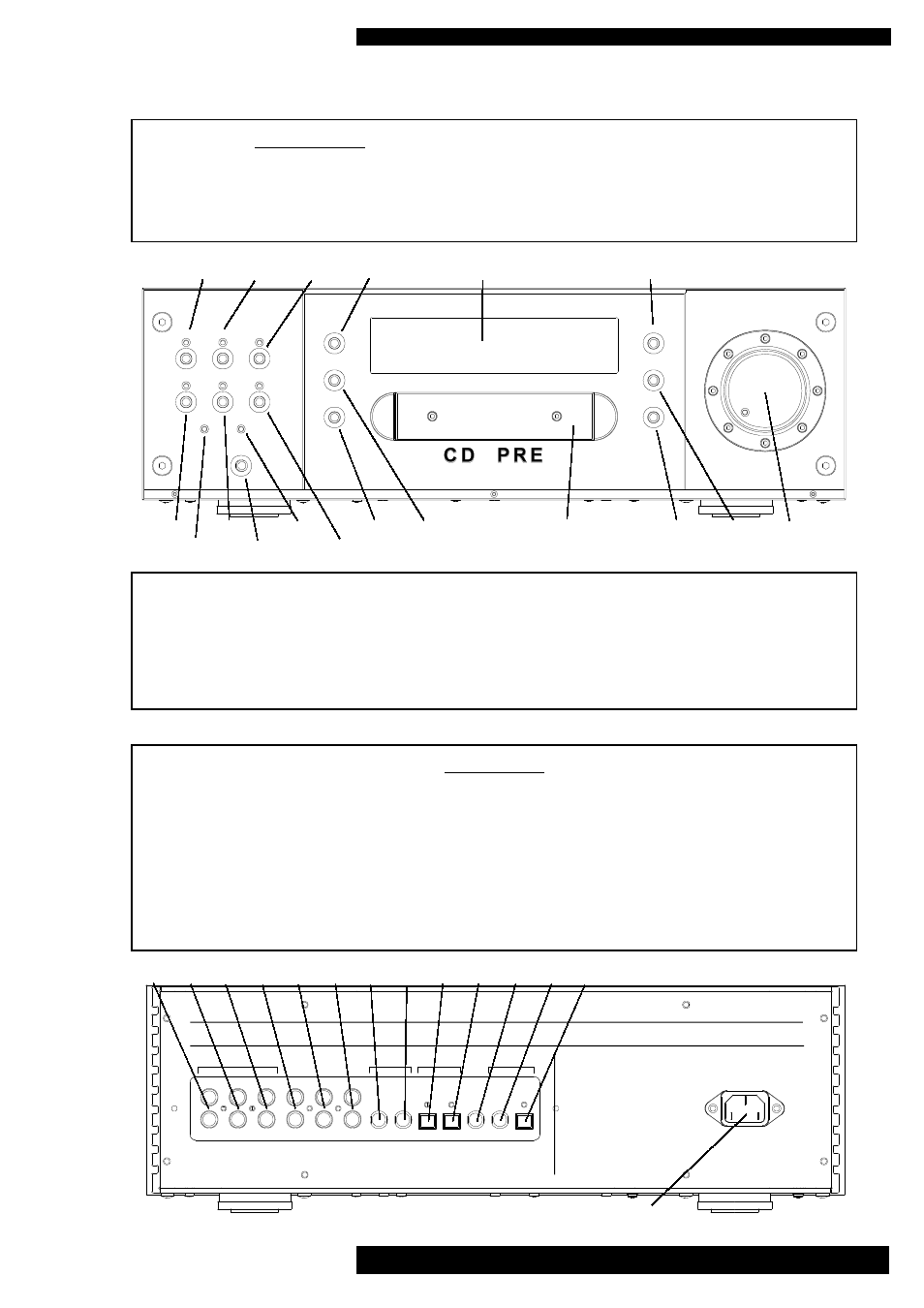

FACILITIES AND CONNECTIONS
LINE1 LINE 2 LINE 3
ANALO G U E
INPUTS
TAPE
M O N ITO R TAPE O U T PRE O U T
DIG ITAL INPUTS
C O A XIAL
1 2
DIG ITAL INPUTS
O PTICAL
DIG ITAL
M O N ITO R
DIG ITAL
OUTPUTS
C O A XIAL O PTICAL
M U SIC AL FIDELITY C D PRE 2 4
MANUFACTURED BY MUSICAL FIDELITY LTD. 15-17 O LYMPIC TRADING ESTATE, FULTO N ROAD,
WEMBLEY, MIDDLESEX, HA9 OTF, ENGLAND
LIN E 1 LIN E 2 LIN E 3
DIG ITAL 1 DIG ITAL 2 C D
DIG ITAL
M O N ITO R
TAPE
M O N ITO R
PO W ER
NEXT
PREVIOUS
LANGUAGE
PLAY/PAUSE
STO P
O PEN/CLO SE
7 DIGITAL 1 input selector button and LED
8 Digital monitor LED (see page 10)
9
DIGITAL 2 input selector button and LED
10
POWER mains on/off switch
11 Tape monitor LED (see page10)
12 CD input selector button and LED
13 CD LANGUAGE button (see page 17)
14 PREVIOUS CD track button
15 CD drawer
16 CD drawer OPEN / CLOSE button
17 CD STOP button
18 Volume control knob with LED
19
LINE INPUT 1 - analogue
- left and right
20
LINE INPUT 2 - analogue
- left and right
21
LINE INPUT 3 - analogue
- left and right
22
TAPE MONITOR
- analogue, left and right
REAR PANEL
23
TAPE OUTPUT - analogue
- left and right (see page 10)
24
LINE OUTPUT - analogue
left and right (to amplifier)
25
INPUT 1 - digital co-axial
26
INPUT 2 - digital co-axial
27
INPUT 1 - optical
28
INPUT 2 - optical
29
DIGITAL MONITOR
- digital co-axial
30
LINE OUTPUT
- digital co-axial
31
LINE OUTPUT
- optical
19 20 21 22 23 24 25 26 27 28 29 30 31
7 9 11 13 14 15 16 17 18
8 10 12
1 2 3 4 5 6
FRONT PANEL
1 LINE 1 input selector button and LED
2
LINE 2 input selector button and LED
3
LINE 3 input selector button and LED
4 NEXT CD track button
5 Display (incorporates infra-red
remote control receiver)
6 CD PLAY / PAUSE button
IEC type mains inlet socket
24
