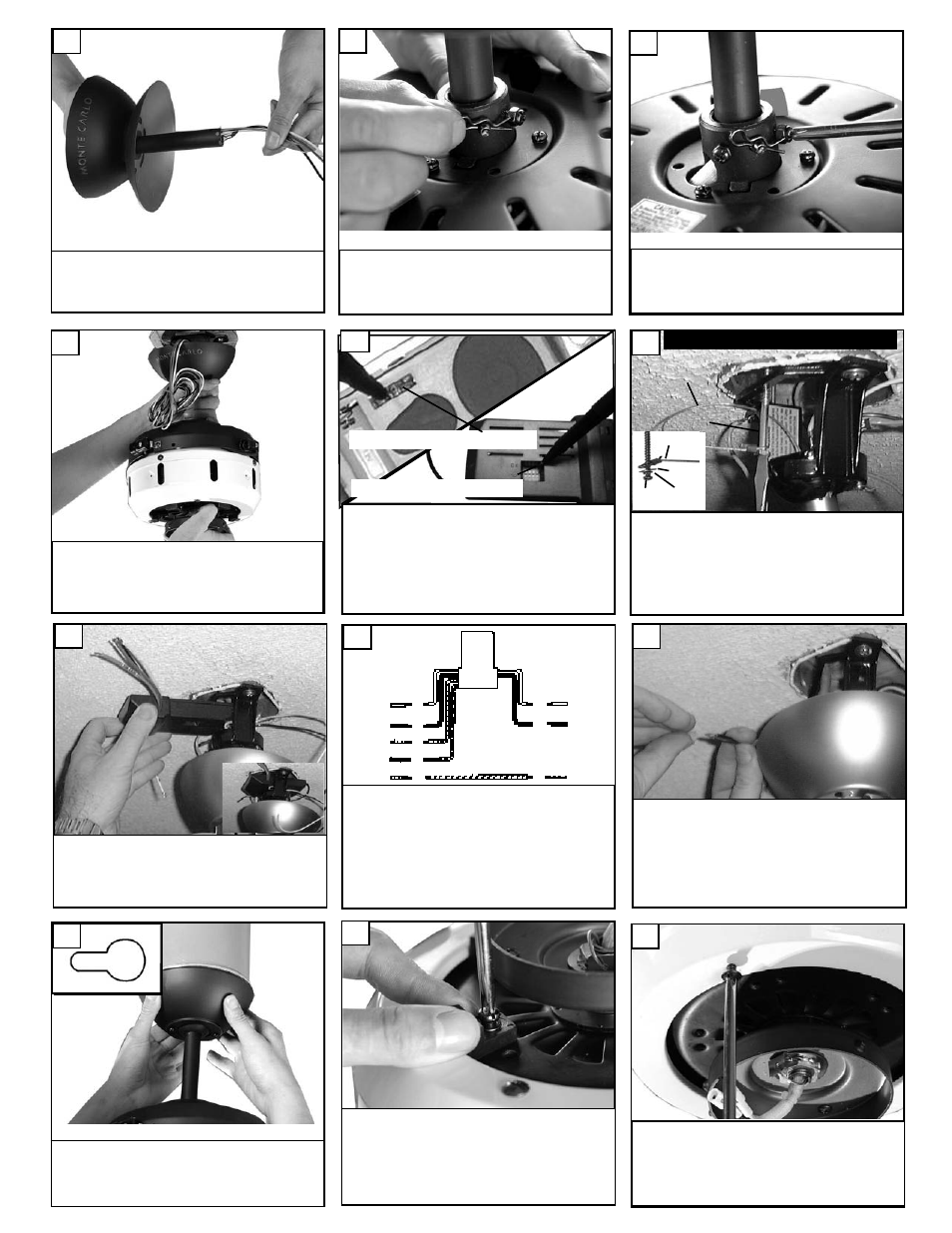

Loosen 2 screws with key slots and
remove the 1 screw without ket slot.
Save screw removed.
18
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
15
Lift Canopy to ceiling aligning the key hole slots
with the screws on the bottom of the Mounting
bracket. Rotate the canopy Counter Clockwise
to lock in place. Tighten the screws to secure
the Canopy. See inset for Keyhole shape
16
white
Red
Make wiring connections as indicated above.
White from fan to white from remote marked
N. Orange from fan to Orange from remote
marked Light/up. Blue from fan to blue from
remote marked down light. Black from fan to
Red from remote marked L. White from
house to white from remote marked AC N .
Black from house to Black from remote
marked AC L. Connect all green ground wires
to Ground wire from House.
Install remote receiver by sliding into opening in
the Mounting bracket. Make sure that the dip
switches on the Transmitter and the Receiver
are set to the same position. See Fig 37 for
remote operation
orange
blue
Green
white
black
House Fan
13 14
Check the motor for plastic shipping sta-
bilizer tabs and remove if they are pres-
ent. The screws, washers and motor pads
are pre-installed to the blade holders.
Attach blade assembly to motor and tight-
en screws securely.
17
Hang fan from mounting bracket.
10
Install keeper into cross pin.
8
Tighten 2 downrod set screws and
lock nuts.
9
Thread leadwires, safety cable, yoke
cover and canopy through downrod.
7
Set dip switches on the Remote Transmitter and
Remote Receiver to the same settings. This must be
done so the units will communcate properly. If you
have other fans you can set to control from one
transmitter by setting both receivers the same as the
transmitter. If you have more than one fan with
remote. You can set the dip switches to different
positiosns to have seperate control.
Remote Transmitter Dip swtiches
Remote Receiver Dip switches
11
Fan and light kit combinations over 35 lbs,
in both flush and downrod mode the safety
cable must be installed into the house struc-
ture beams using the 3” lag screws,washers,
and lock washers. provided. Make sure that
when the safety cable is fully extended the
lead wires are longer than the cable and no
stress is placed on the lead wires.
12 Safety cable installation
Safety Cable
Lag Screw
safety
cable
3” lag
screw
lock
washer
washer
