Dog Ear
Clamp
Dog Ear
Clamp
Dry Wall or Ceiling Tile
+
+
+
Dog Ear Screw
+
Dog Ear Adjustment
Screws
Dog Ear Adjustment
Screws

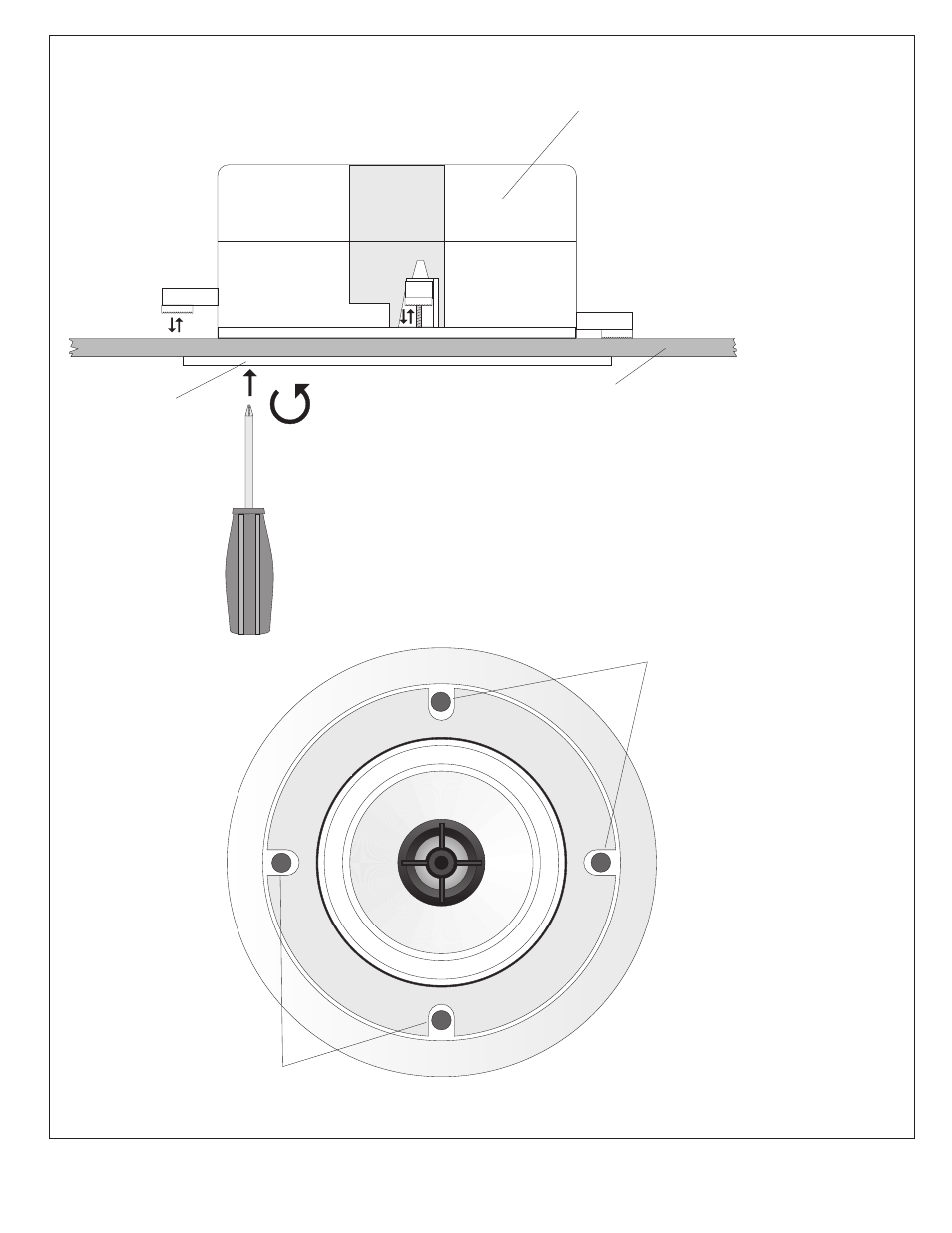

DIAGRAM 3
3
Note: As you turn the Dog-Ear screws clockwise, the
Dog-Ear Clamp will swing out away from the speaker (1A).
Continue to turn the screw and the Dog-Ear Clamp will
Lower down until they reach the mounting surface (1B)
(1A)
(1B)
Removable enclosure back-case half
The back section of the enclosure
can be removed when mounting
depth does not permit the full height
of the speaker or fire codes prevent
closed type enclosures.
