The MSW-2 operates as a system with
the B-2EX Control Electronics Unit (one
per channel). Optimized for use with Meyer
Sound subwoofers, and pre-aligned at the
factory, the B-2EX contains frequency
response and phase response alignment
circuitry, and Meyer Sound’s exclusive
SpeakerSense
™ driver protection circuitry,
incorporating RMS signal limiting and
switchable excursion limiting.
A single-channel device operating at
line level, the B-2EX is intended to be the
final component in the signal chain before
the power amplifier. It is connected in
parallel with the input to the system being
supplemented by the MSW-2, and incorpo-
rates a summing input for deriving a mono
subwoofer signal from a stereo program.
The factory-calibrated SpeakerSense
circuitry protects the MSW-2 loudspeaker
components from damage due to over-
heating under high power conditions. This
unique circuit continuously monitors the
power applied to the MSW-2 drivers, and
limits the B-2EX output when the safe
operating limits of the drivers are ex-
ceeded. Until the onset of overload, the
SpeakerSense circuitry has no effect on the
B-2EX output signal.
Included in the SpeakerSense circuit
is a Safe switch, which moves the limit
point downward from the factory setting
and engages the excursion limiter. This has
the effect of increasing the safety margin of
the system, and is intended to be used when
extended periods of overload are antici-
pated. In addition to these features, the
B-2EX incorporates a Crossover switch
which engages/disengages the lowpass
rolloff of the subwoofer output. This feature
may be used whenever it is desirable to
operate the MSW-2 full-range as, for
example, in instrument amplification.
The setup controls are located behind
a cover plate on the B-2EX front panel,
providing a means for securing the system
installer’s presets.

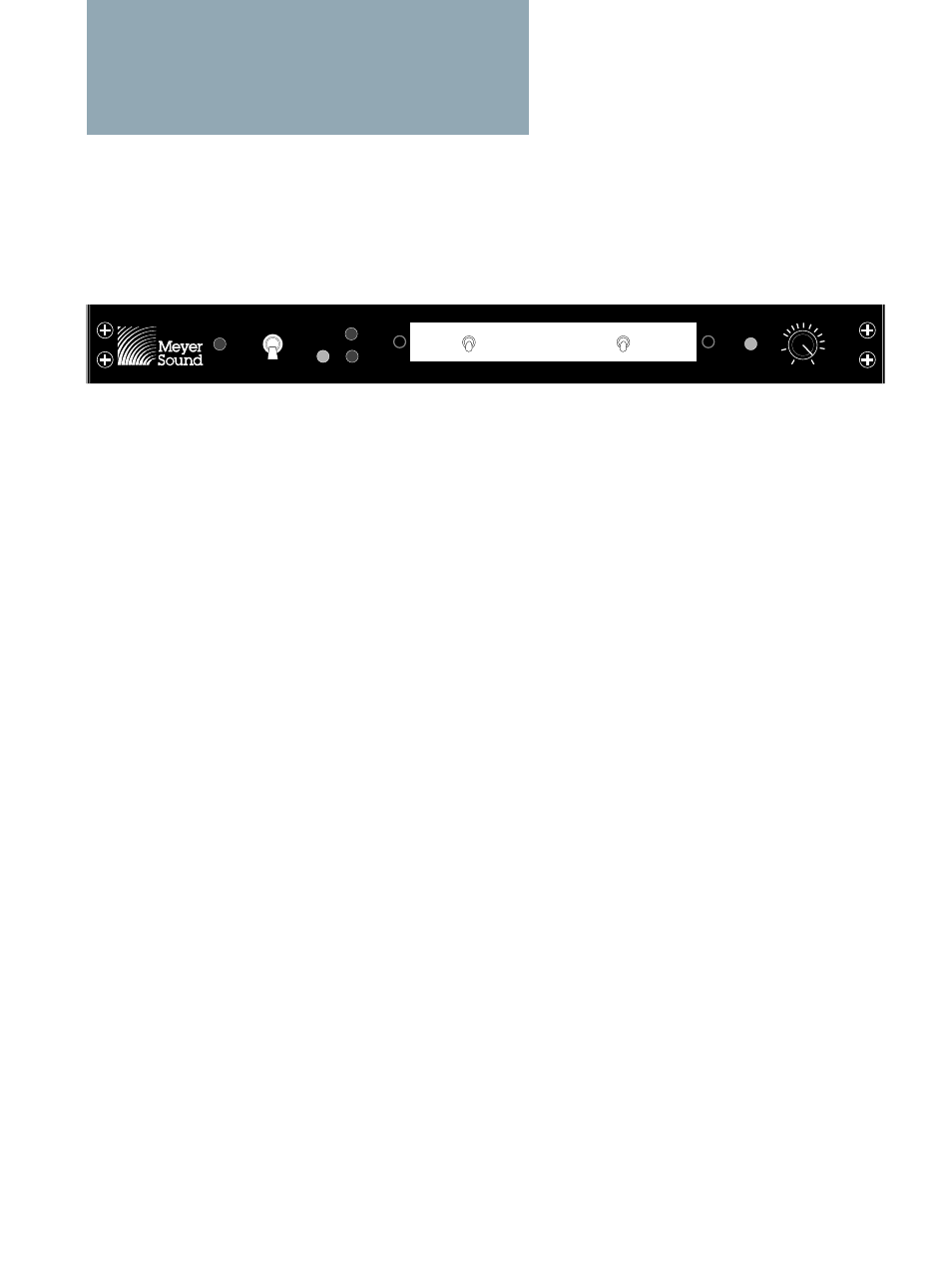

The B-2EX Control
Electronics Unit
UltraSeries™ B-2EX
Power
Sense Limit
∞
20
10
8 4
3
2
1
0
Attn dB
5 6
Excursion
Safe
Out
Crossover Safe
