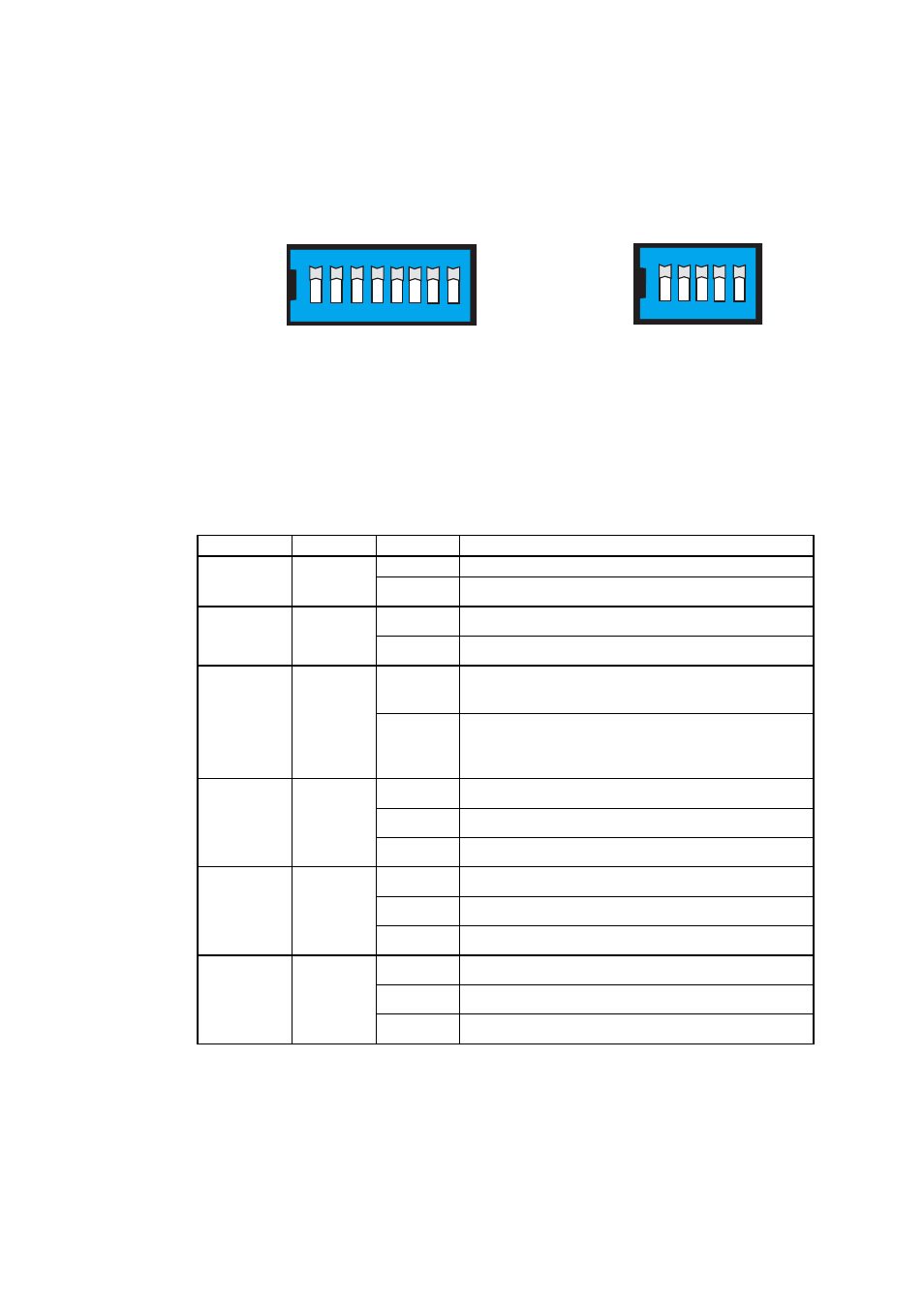

DIP Switch Settings
EDS-308 Series DIP Switches EDS-305 Series DIP Switches
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5
ON DIP
ON: Enables the corresponding PORT Alarm. If the port’s link fails, the relay will form an open
circuit and the fault LED will light up.
Off: Disables the corresponding PORT Alarm. The relay will form a closed circuit and the Fault
LED will never light up.
LED Indicators
The front panel of MOXA EtherDevice Switch contains several LED indicators. The function of
each LED is described in the table below.
LED Color State Description
On Power is being supplied to power input P1
P1 AMBER
Off Power is not being supplied to power input P1
On Power is being supplied to power input P2
P2 AMBER
Off Power is not being supplied to power input P2
On
When the corresponding PORT alarm is
enabled, and the port’s link is inactive.
Fault RED
Off
When the corresponding PORT alarm is
enabled and the port’s link is active, or when the
corresponding PORT alarm is disabled.
On TP port’s 10 Mbps link is active
Blinking Data is being transmitted at 10 Mbps 10M GREEN
Off TP Port’s 10 Mbps link is inactive
On TP port’s 100 Mbps link is active
Blinking Data is being transmitted at 100 Mbps 100M (TP) GREEN
Off 100BaseTX Port’s link is inactive
On FX port’s 100 Mbps is active
Blinking Data is being transmitted at 100 Mbps 100M (FX) GREEN
Off 100BaseFX port is inactive
