Installation instructions
Place the provided seal
f
under the
edge of the grill.

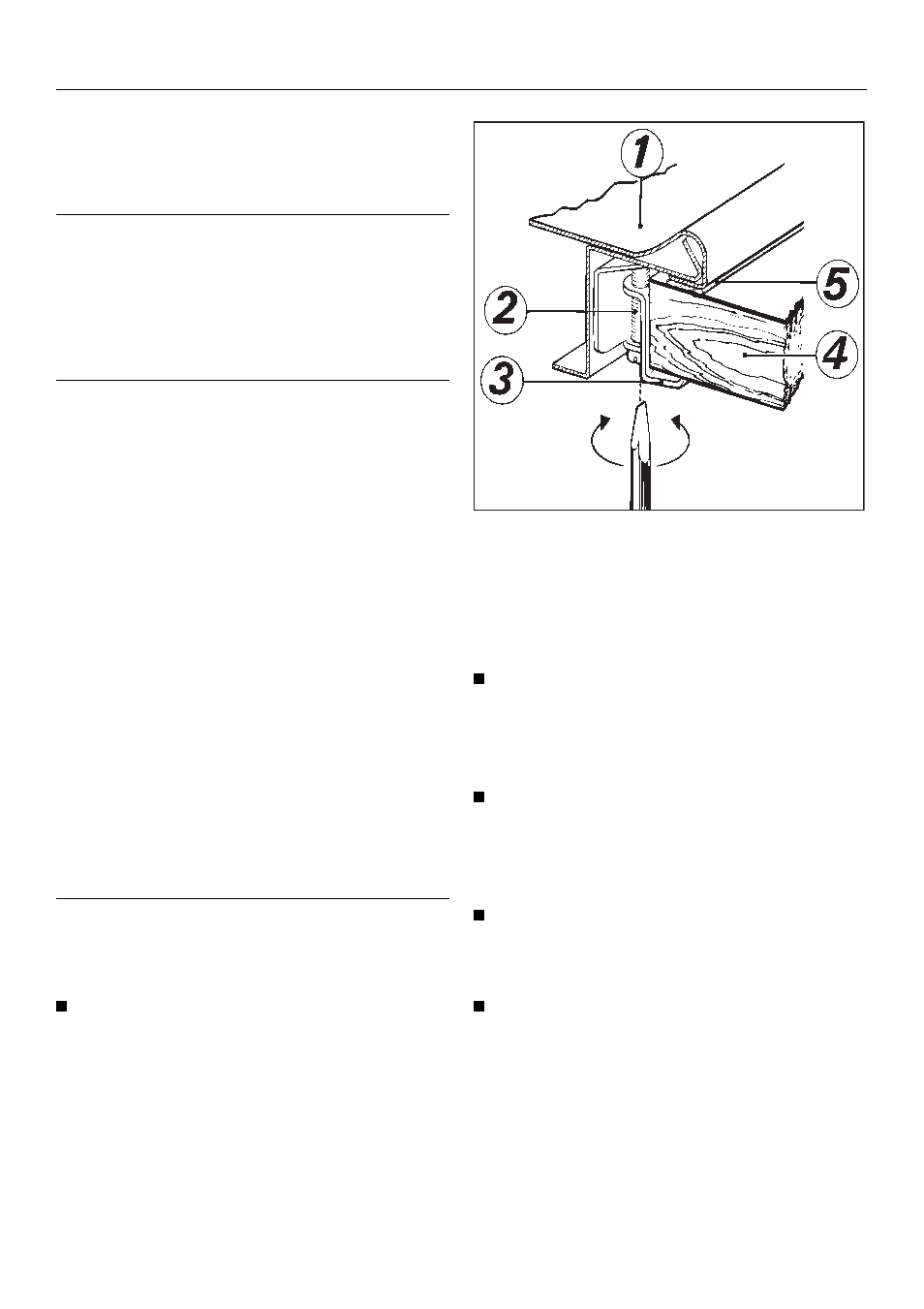

b Appliance
c Tensioning screw
d Clamp
e Countertop
f Seal
Turn the tensioning screws c
counter clockwise until a resistance
is felt, then turn the clamps
d to the
left.
Place the appliance in position, turn
the clamps and tighten the tension-
ing screws until the clamps press
into the countertop
e
, as shown.
Install the stainless steel lid, EA 80 (if
applicable). It is supplied with its
own installation instructions.
Connect the appliance to the electri-
cal supply.
When installing several Combiset units,
a stainless steel spacer bar must be
placed between the units. It is supplied
with its own installation instructions.
Depth
in
inch
Width *
(= Dimen-
sion B)
in inch
2 zone Combiset
1 Combiset
2 Combisets
3 Combisets
4 Combisets
5 Combisets 19-5/16"
19-5/16"
19-5/16"
19-5/16"
19-5/16" 10-7/16"
22"
33-1/2"
45-1/32"
56-9/16"
4 zone Combiset
1 Combiset
2 Combisets
3 Combisets 19-5/16"
19-5/16"
19-5/16" 22"
45"
68"
Combination
One 2 zone
+ one 4 zone
Two 2 zone
+ one 4 zone
Three 2 zone
+ one 4 zone
One 2 zone
+ two 4 zone
Two 2 zone
+ two 4 zone
19-5/16"
19-5/16"
19-5/16"
19-5/16"
19-5/16"
33-1/2"
45"
56-9/16"
56-1/2"
68-1/16"
Extractor (e.g. DA 8-2)
loosen tighten
