Makita BO5010 - Manual (Page 2)

2 Model BO5010
Item Part No.
No. No. Used Description
Item Part No.
No. No. Used Description
1 682502-4 1 Cord Guard 8-85 (Type 2)
2 183048-8 1 Motor Housing Set (With Rubber Pin 4
- 2X263002-9)(Old 182921-9)
3 664424-0 1 Cord Com. 2P-18-2.0M (Type 1)
664013-1 1 Cord With Plug 2P-18-2.5M (Type 2)
4 687063-9 1 Strain Relief
5 651523-7 1 Switch (Old 651513-0)
6 191956-9 2 Carbon Brush CB-75 (2pcs/Set)
7 643552-4 2 Brush Holder 5-8
8 416064-8 1 Dust Nozzle
9 257202-1 1 Ring 25
10 * 2/1 Leaf Spring / O Ring 75
11 * 1 Skirt Set
12 416063-0 1 Dust Bag Nozzle
14 911128-8 3 P.H. Screw M4x16
16 316834-4 1 Bearing Box Cover
17 416062-2 1 Brake Ring
18 911116-5 1 P.H. Screw M4x12
19 253739-6 1 Flat Washer 4
20 * 1 Ball Bearing 6002DDW
21 253315-6 1 Thin Washer 15
22 316835-2 1 Bearing Box
23 241896-2 1 Fan 88
24 210020-8 1 Ball Bearing 6000DDU
25 961015-1 1 Stop Ring E-9
26 593381-4 1 Field Assy (Old 593376-7)
27 517231-9 1 Armature Assy (Includes Items
24, 25, 28 & 29)
28 313080-0 1 Counter Weight
29 210017-7 1 Ball Bearing 607DDSD
33 265995-6 7 Tapping Screw 4x18
110 654532-5 1 Terminal Block 1P
111 654509-0 1 Connector 2-SD
112 654002-4 2 Solderless Eye Terminal 1.25-M4
Accessories
A01 - - - - - 1 Abrasive Disc (See Catalogue for Details)
A02 166047-5 1 Dust Bag
SERVICE CHANGES

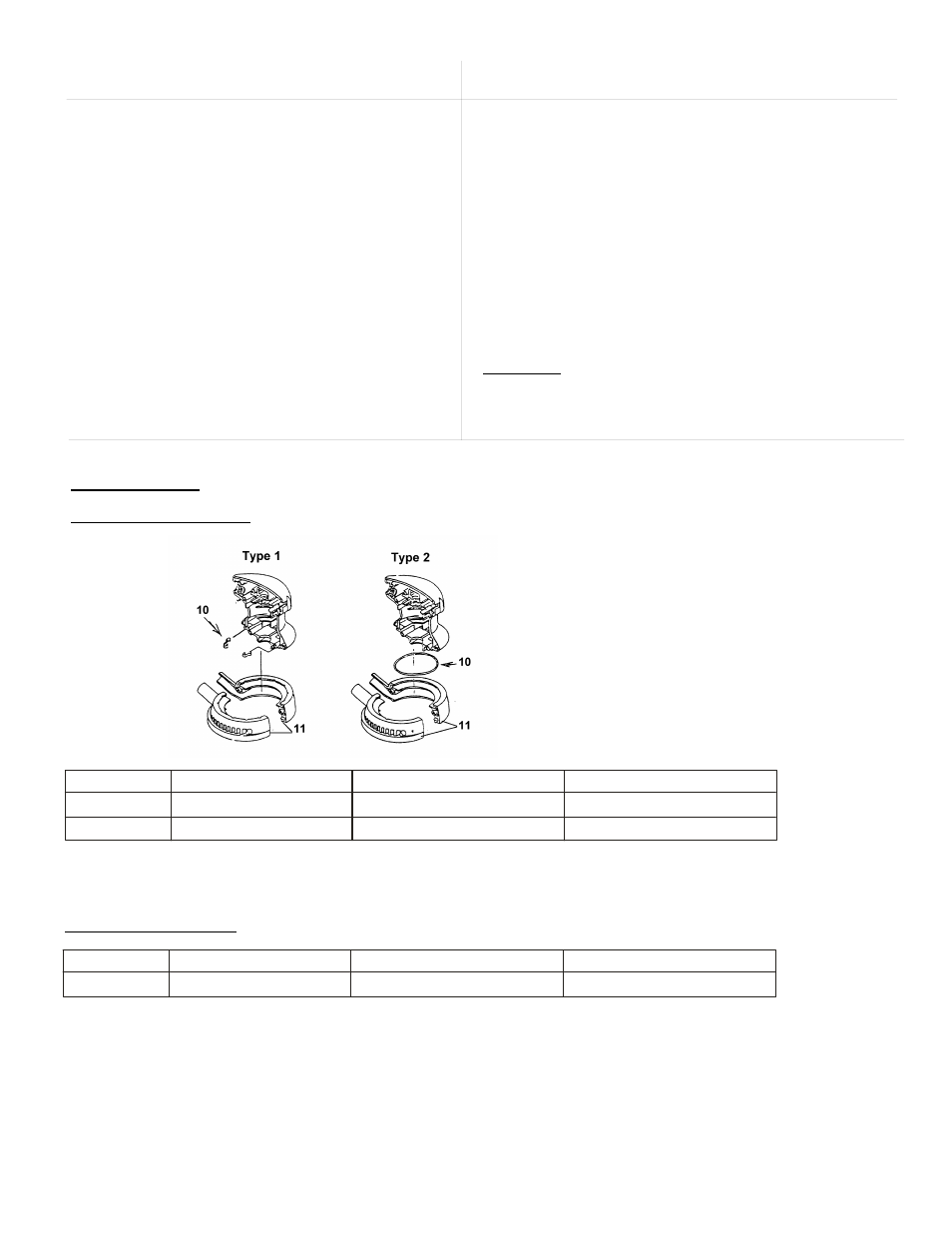

1. Change on Skirts Set Etc.
Item No. Description Type 1 Type 2
10 Leaf Spring / O Ring 75 232166-0 - Leaf Spring (2pcs) 213755-0 - O Ring 75 (1pc)
11 Skirt Set 182922-7 183088-6
Above parts are completely interchangeable as a set.
Type 2 Sander becomes No Positive Stop function.
2. Change on Ball Bearing.
Item No. Description Type 1 Type 2
20 Ball Bearing 6002DDW 211227-9 211236-8
Above parts are completely interchangeable.
To Prevent excess rotation when the Sander is NO LOAD, please change to Type 2 Ball Bearing which is packed
with a thinner grease. There is no visual difference between Type 1 & Type 2 Ball Bearings.
* SEE SERVICE CHANGES
