12"
10"
8"
6"
2 1 /
2
"
12"
16"
19"
21"
23"
Combustible material
can contact top of
fi replace.
Non-combustible
material only if
needed to cover
radiant top face above
FIREPLACE
WALL
COMBUSTIBLE
MATERIAL AREA
HOOD
TOP VIEW

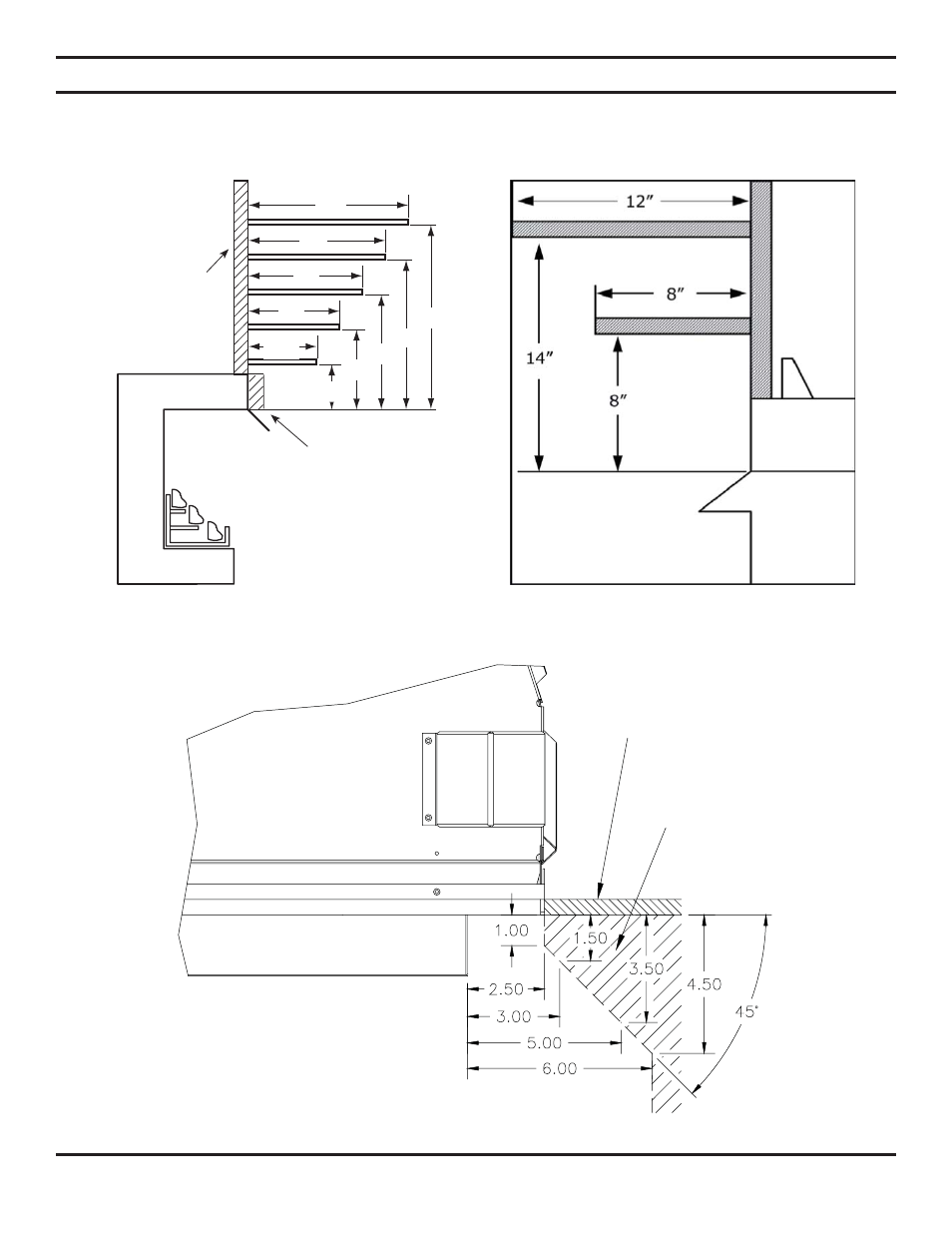

Figure 8- Mantel Clearances
CLEARANCES
AND
HEIGHT REQUIREMENTS
5. Mantel clearances: The canopy supplied with the unit must be installed. If a combustible mantel is installed, it must
meet the clearance requirements as shown in Figure 7A. However, if lower mantel height is desired, see page 14
and Figure 7B for canopy options.
Figure 7A - Mantel Clearances Figure 7B - Mantel Clearances for Wide Profi le
Canopy Only
