S-5000 THX & S-150 THX satellite speakers page 5

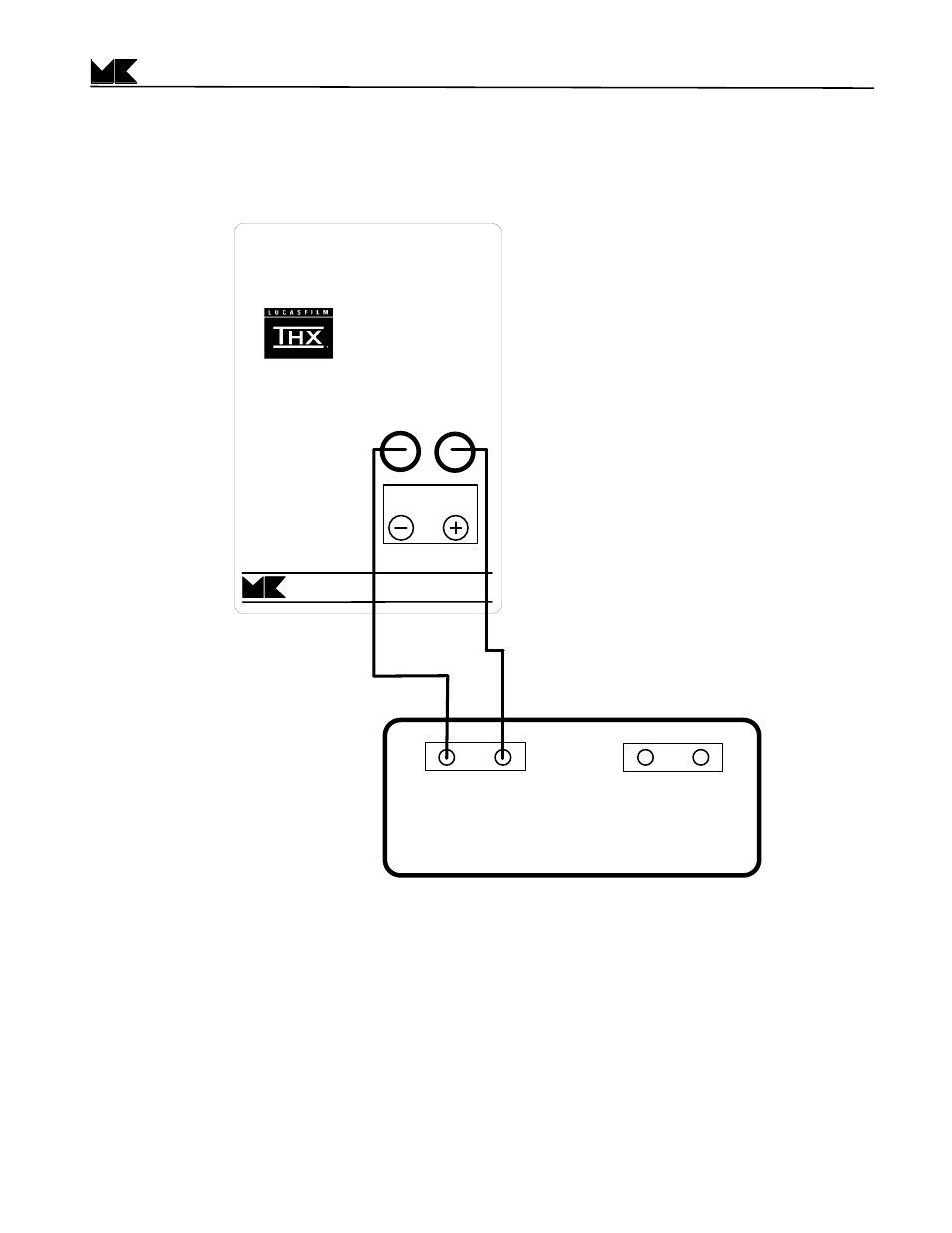

FIGURE 1
WIRING
(one channel only is shown for clarity)
5. OPTIMIZING SPEAKER PLACEMENT
The sound quality produced by your speakers can be significantly enhanced by careful attention to their
placement. You will get the maximum return in sound quality for your investment in the by following these
guidelines as closely as possible.
Four factors are important in getting the best sound. They are:
A. Height or angle (proper orientation of tweeters relative to listeners' ears).
B. Location away from room walls or reflecting surfaces.
C. Separation between left and right speakers.
D. Vertical orientation of the speaker cabinets.
