8 Installation Guide
Connect to the Network

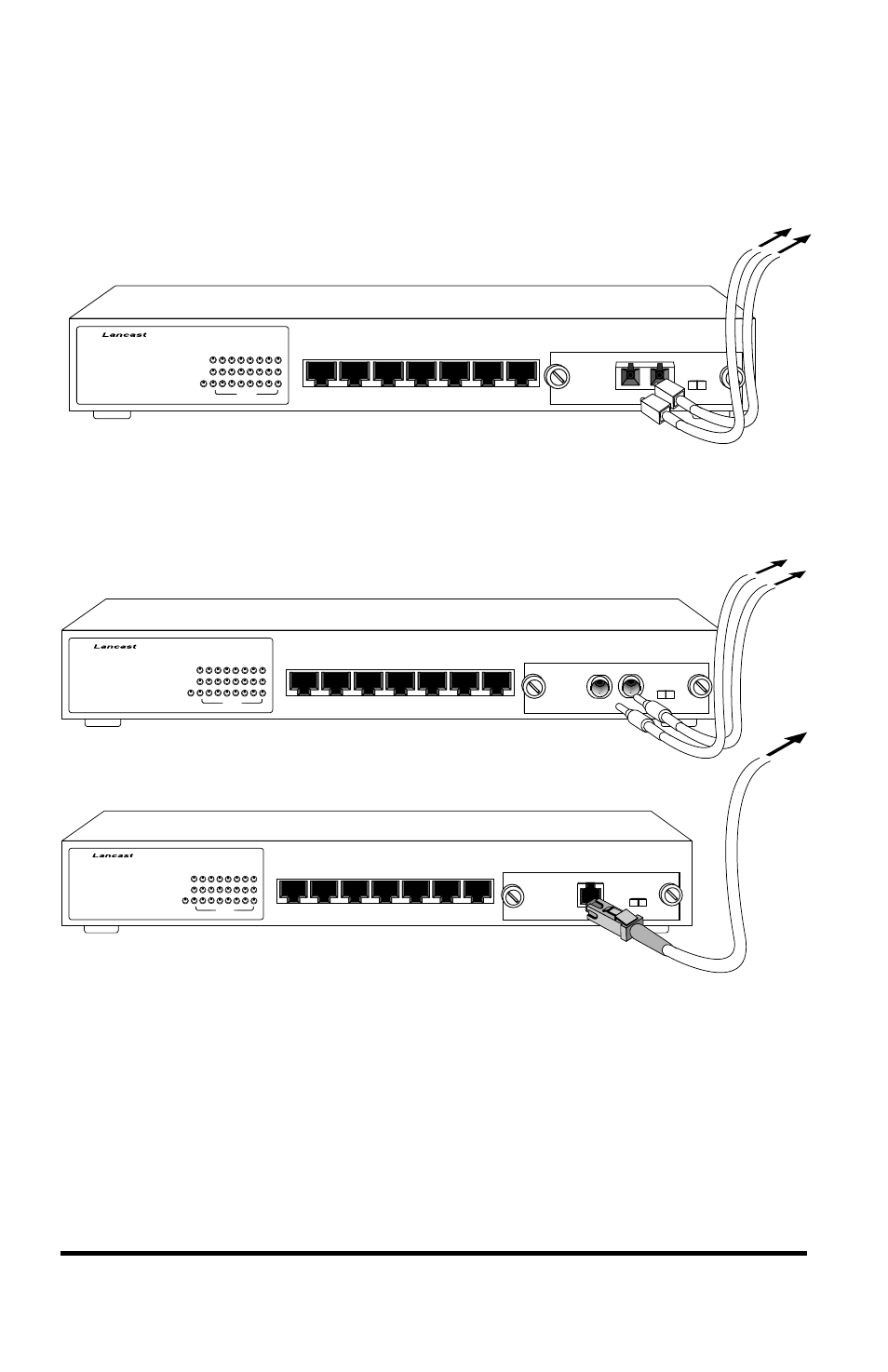

The 3508-04-F and 3508-07-F modules provide a pair of singlemode SC
connectors. The 3508-04-F supports a maximum segment length of 15km
and the 3508-07-F supports a maximum segment length of 40km.
The 3508-03-F and 3508-05-F modules provide a pair of multimode SC
and ST connectors, respectively. The 3508-0E-F provides a multimode
MT-RJ connector. These modules support a maximum segment length of
2km.
When making fiber optic connections with two cables, be sure that the
transmit (TX) connector on the CenturySwitch connects to the receive
(RX) connector of the device. Conversely, be sure that the transmit (TX)
connector of the device connects to the receive (RX) connector on the
CenturySwitch.
Once power is applied to the unit, use the Link/Act LED for Port 8 to
verify correct segment connectivity. The LED illuminates if an active
device is connected to the other end of the cable(s).
CenturySwitch
®
3508-11
FDX
Link/Act
100Mbps
Power
Module Port 8
1 2 3 4 5 6 7 8 1x 2x 3x 4x 5x 6x
10/100 Ethernet Switch
7x
TX
100BASE-FX
RX
HDX FDX
®
CenturySwitch
®
3508-11
FDX
Link/Act
100Mbps
Power
Module Port 8
1 2 3 4 5 6 7 8 1x 2x 3x 4x 5x 6x
10/100 Ethernet Switch
7x
TX
100BASE-FX
RX
HDX FDX
®
CenturySwitch
®
3508-11
FDX
Link/Act
100Mbps
Power
Module Port 8
1 2 3 4 5 6 7 8 1x 2x 3x 4x 5x 6x
10/100 Ethernet Switch
7x
100BASE-FX HDX FDX
®
