Introduction

7

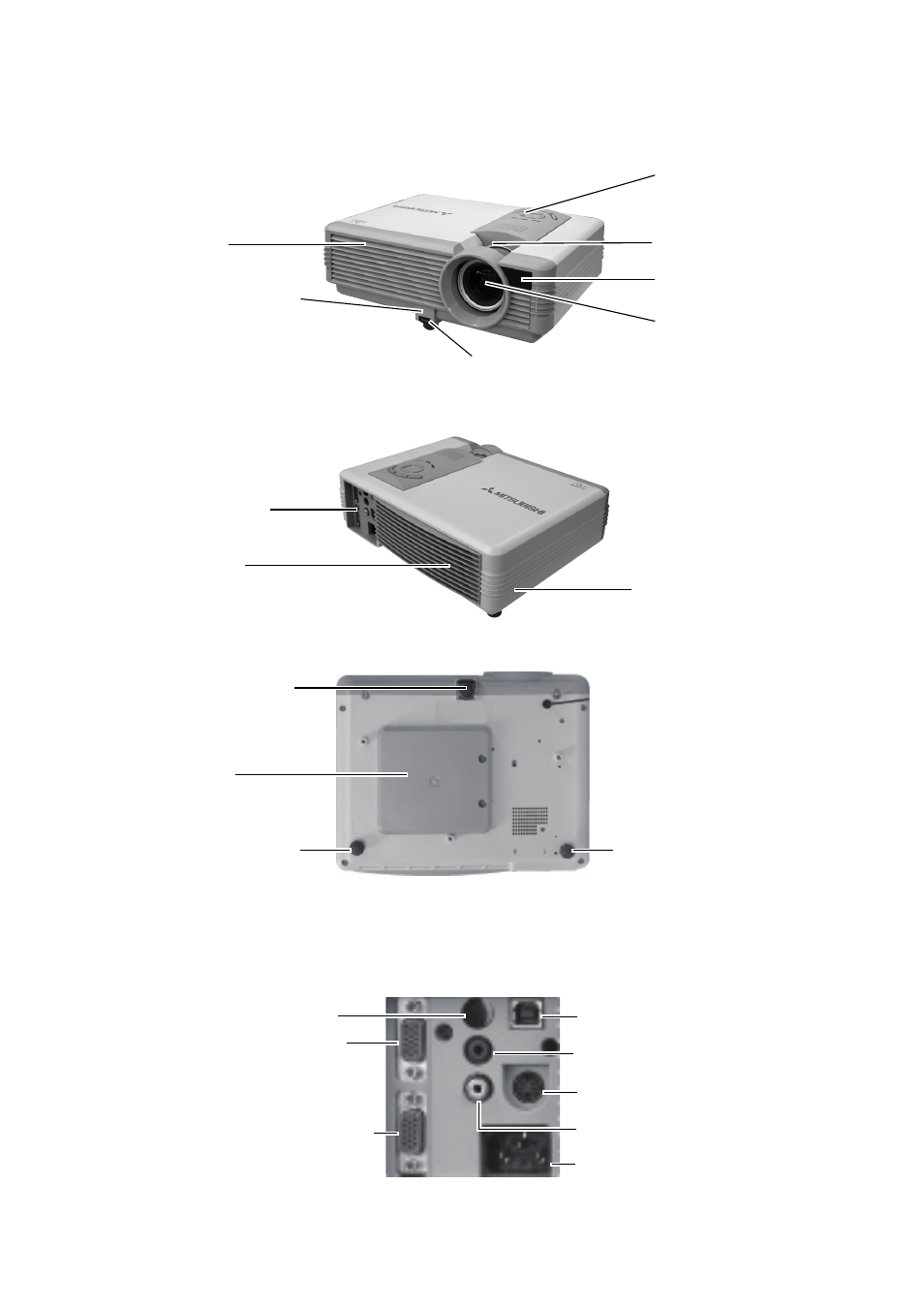

Projector Exterior View

Front / Upper Side

Rear Side

Bottom Side

Connector Panel

Refer to page

11

for more information on making connections to various equipment.

Projection lens

Front adjuster foot

Air inlet grill

Front IR remote

sensor

Front adjuster button

Focus ring and

Zoom ring

External control panel

(See page

8

for

detailed information.)

Kensington lock slot

Air outlet grill

Connector panel

Lamp door

Front adjuster foot

Rear adjuster foot

Rear adjuster foot

COMPUTER IN terminal

(PC/ YPbPr/ YCbCr)

COMPUTER OUT

terminal

AC inlet

S-VIDEO terminal

USB terminal

AUDIO jack

VIDEO terminal

IR remote sensor
