Mr. Heater HEATSTAR HS35CLP User Manual
Page 8
e-8

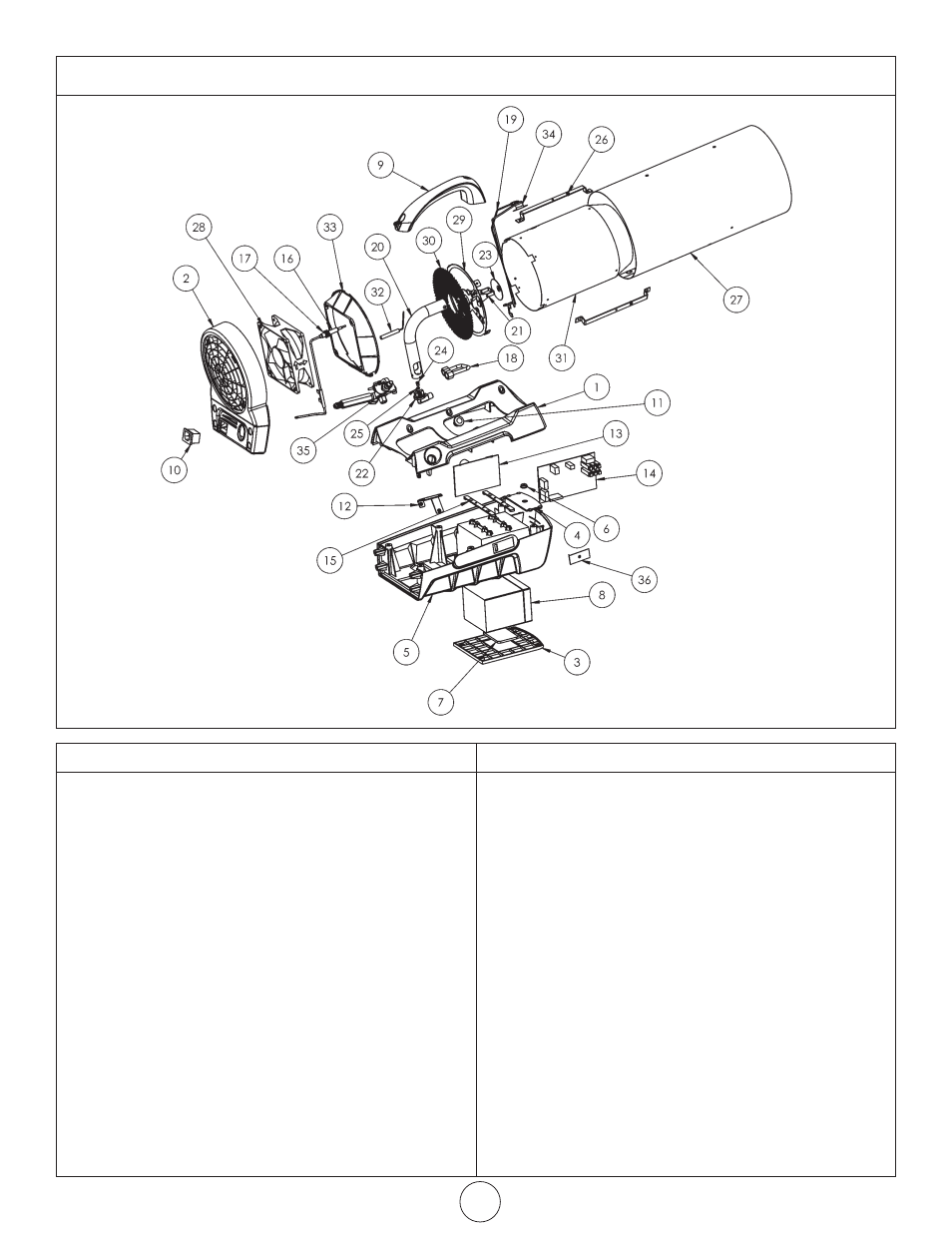

Forced Air Propane Construction Heater
Operating Instructions and Owner’s Manual
re F.#
ite M#
descripti On
Qt Y.
19
27952
wire,hls,assy
1
20
27936
tube,burner,main
1
21
27937
brkt,support,flame,spreader,35k
1
22
27939
holder,orifice
1
23
27938
spreader,flame,35k
1
24
27940
orifice,obe,35k
1
25
27941
o-ring,orifice
1
26
27945
brkt,radiationshield,mtg
3
27
27948
barrel,35k
1
28
27943
fan,brushless,dc,35k
1
29
27946
ring,support,flame,holder,35k
1
30
27947
holder,flame,hex,35k
1
31
27944
shield,radiation,35k
1
32
27951
electrode,ignition
1
33
27942
cone,air_restraint,plastic,35k
1
34
27935
switch,high,limit
1
35
27932
valve,gas,main
1
36
27930
board,led,off,switch,35k
1
*
27953
power supply cord
1
*
27954
battery connection wiring harness
1
*
27956
hose and regulator assembly
1
* Not shown on exploded view
re F.#
ite M#
descripti On
Qt Y.
1
27921
base,upper_plastic,35k
1
2
27923
guard,rear,plastic,35k
1
3
27924
door,battery,35k
1
4
27960
cover,battery
1
5
27922
base,lower_plastic,35k
1
6
27957
grommet,wire,battery,cover
1
7
27961
foam,adhesive
1
8
27927
battery,35k
1
9
27925
handle,carry,35k
1
10
27931
receptacle,power,supply
1
11
27926
knob,valve
1
12
27950
bracket,valve,35k
1
13
27928
board,power,supply,35k
1
14
27929
board,control,main,35k
1
15
27959
bracket,board,mount
2
16
27933
thermocouple
1
17
27934
nut,jamb,thermocouple
2
18
27955
tubing,gas,burner,inlet,35k
1
Forced a ir propane c onstruction Heater • Model #35
clp
*
27926
button, Piezo, orange
1
