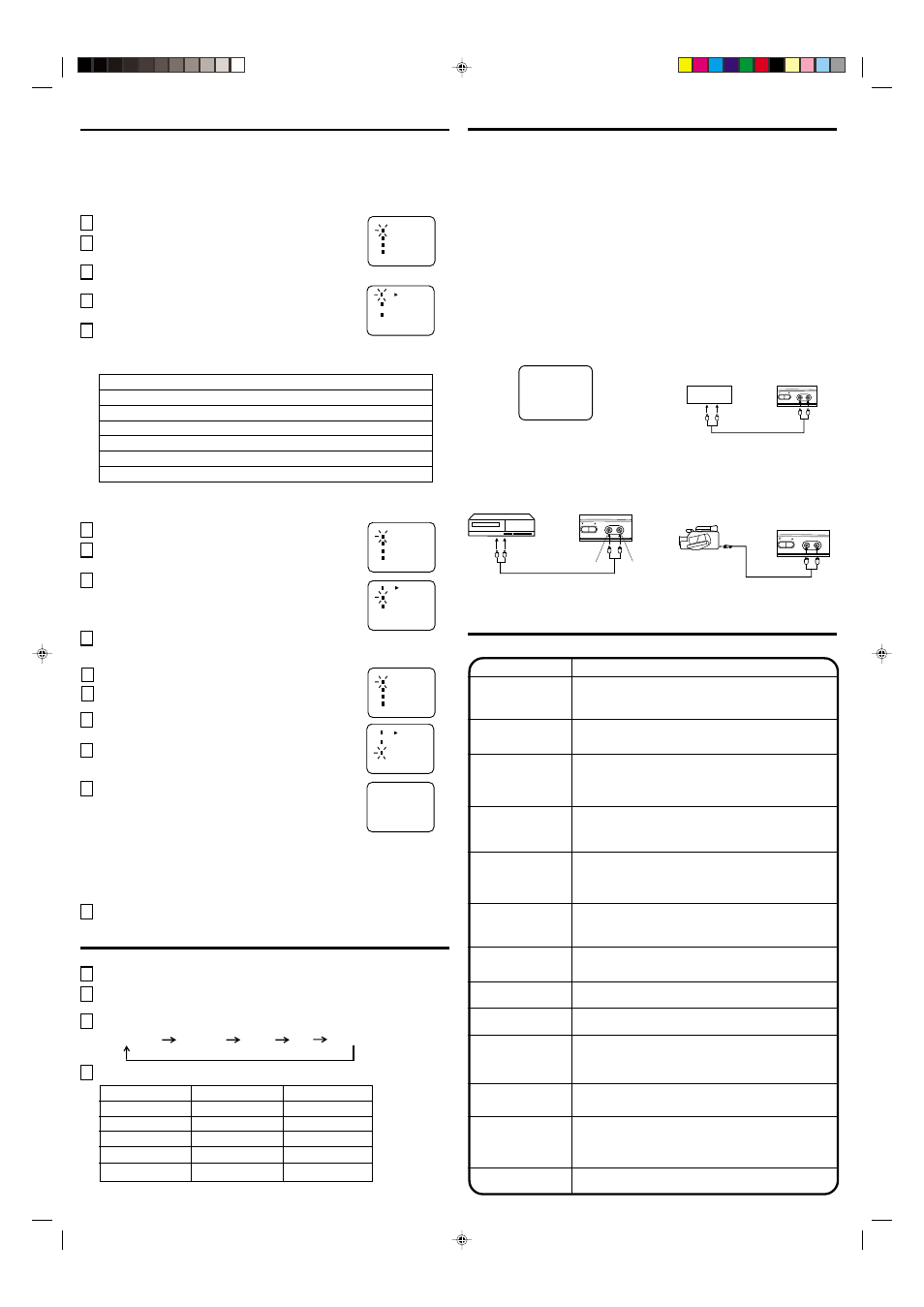

VIDEO IN
RESET ENTER
CHANNEL AUDIO IN
VIDEO IN
RESET ENTER
CHANNEL AUDIO IN
TO MEMORIZE CHANNELS
This TV is equipped with a channel memory feature which allows channels to skip up or down
to the next channel set into memory, skipping over unwanted channels.
Before selecting channels, they must be programmed into the TV's memory. In addition to
normal VHF and UHF channels, this TV can receive up to 113 Cable TV channels. To use this
TV with an antenna, set the TV/CATV menu option to the TV setting. When shipped from the
factory, this menu option is in the CATV setting.
CATV CHART
TV/CATV SELECTION
Press the MENU button.
Press the SET + or – button until the indicator next to "CH SET"
begins to flash, then press the ENTER button.
Press the SET + or – button until the indicator next to "TV/CATV"
begins to flash.
Press the ENTER button to select the TV or CATV mode. The
arrow indicates the selected mode.
Press the MENU button twice to return to normal TV viewing.
1
2
3
4
5
The chart below is typical of many cable system channel allocations.
14
A
15
B
16
C
17
D
18
E
19
F
20
G
21
H
22
I
32
S
33
T
34
U
35
V
36
W
37
AA
38
BB
39
CC
40
DD
23
J
24
K
25
L
26
M
27
N
28
O
29
P
30
Q
31
R
50
NN
51
OO
52
PP
53
QQ
54
RR
55
SS
56
TT 57
UU
58
VV
41
EE
42
FF 43
GG
44
HH
45
II
46
JJ 47
KK
48
LL 49
MM
68
III
69
JJJ
70
KKK
71
LLL
72
MMM
73
NNN
74
OOO
75
PPP
76
QQQ
59
WW
60
AAA
61
BBB
62
CCC
63
DDD
64
EEE
65
FFF
66
GGG
67
HHH
86
86 87
87 88
88 89
89 90
90 91
91 92
92 93
93 94
94 77
RRR
78
SSS
79
TTT
80
UUU
81
VVV
82
WWW
83
XXX
84
YYY
85
ZZZ
104
104 105
105 106
106 107
107 108
108 109
109 110
110 111
111 112
112 95
A-5
96
A-4
97
A-3
98
A-2
99
A-1
100
100 101
101 102
102 103
103
122
122 123
123 124
124 125
125 01
5A 113
113 114
114 115
115 116
116 117
117 118
118 119
119 120
120 121
121
Number on this TV
Corresponding CATV channel
NOTE:
Contact your cable company to determine the type of cable system used in your area.
AUTOMATIC CHANNEL MEMORY
Press the MENU button.
Press the SET + or – button until the indicator next to "CH SET"
begins to flash, then press the ENTER button.
Press the SET + or – button until the indicator next to "AUTO CH
MEMORY" begins to flash, then press the ENTER button. The
TV will begin memorizing all the channels available in your area.
Channel numbers will remain red until auto memorizing is
complete.
Press the MENU button twice to return to normal TV viewing.
1
2
3
1
2
TO ADD/DELETE CHANNELS
AUTO CH MEMORY
TV
ADD / DELETE
CATV
〈 + / – / ENTER / MENU 〉
Press the MENU button.
Press the SET + or – button until the indicator next to "CH SET"
begins to flash, then press the ENTER button.
Press the SET + or – button until the indicator next to "ADD/
DELETE" begins to flash, then press the ENTER button.
Select the desired channels to be added or deleted using the
Direct Channel Selection buttons (10 keys. 0-9), the CH
▲ or ▼
button or the SET + or – button.
Press the ENTER button to select ADD or DELETE.
If an unmemorized channel was selected (step 4), the channel
indication will be red. Press the ENTER button if you wish to ADD
the unmemorized channel. The channel indicator will change
from red to green when a channel is added and the channel will
be memorized.
If a memorized channel was selected (step 4), the channel
indication will be green.
Press the ENTER button if you wish to DELETE the channel from
memory. The channel indicator will change from green to red
when a channel is deleted.
Repeat Steps 4 and 5 for each channel to be added or deleted.
Press the MENU button three times after adding or deleting all of
the desired channels, to return to normal TV viewing.
4
5
6
3
ADJUSTING PICTURE
1
2
3
You can adjust the settings for color, sharpness, contrast, brightness and tint.
TO RETURN TO INITIAL SETTING
Press the RESET button while the picture adjusting mode appears on-screen.
BRIGHTNESS
CONTRAST
COLOR
TINT
SHARPNESS
+
increase brightness
increase contrast
be brilliant color
be greenish color
decrease brightness
decrease contrast
be pale color
be reddish color
makes picture softer makes picture
clearer
4
CONTRAST COLOR BRIGHTNESS TINT SHARPNESS
Press the MENU button.
Press the SET + or – button until the indicator next to "PICTURE" begins
to flash, then press the ENTER button.
Press the ENTER button repeatedly to select the item you want to adjust.
Press the SET + or – button to adjust the setting.
–
CH SET
MENU
LANGUAGE
V-CHIP SET
〈 + / – / ENTER / MENU 〉
CH SET
MENU
LANGUAGE
V-CHIP SET
〈 + / – / ENTER / MENU 〉
CH SET
MENU
LANGUAGE
V-CHIP SET
〈 + / – / ENTER / MENU 〉
AUTO CH MEMORY
TV
ADD / DELETE
CATV
〈 + / – / ENTER / MENU 〉
AUTO CH MEMORY
TV
ADD / DELETE
CATV
〈 + / – / ENTER / MENU 〉
ADD CH 012
〈 + / – / ENTER / MENU 〉
TROUBLESHOOTING GUIDE
SYMPTOMS POSSIBLE SOLUTIONS
• Make sure the power cord is plugged in.
• Try another AC outlet.
• Power is off, check fuse or circuit breaker.
• Unplug unit for an hour, then plug it back in.
• Station or CATV experiencing problems, tune to another station.
• Check sound adjustments (VOLUME and MUTING).
• Check for sources of possible interference.
• Station or CATV experiencing problems, tune to another station.
• Make sure channels are set into memory.
• Check antenna or CATV connections, adjust antenna.
• Check for sources of possible interference.
• Check picture control adjustments.
• Station or CATV experiencing problems, tune to another station.
• Make sure channels are set into memory.
• Station is weak, adjust antenna to receive desired station.
• Check for sources of possible interference.
• Station or CATV experiencing problems, tune to another station.
• Make sure channels are set into memory.
• Check picture control adjustments.
• Check antenna or CATV connections, reorient antenna.
• Check for sources of possible interference.
• Station or CATV experiencing problems, tune to another station.
• Make sure channels are set into memory.
• CATV company is scrambling signal.
• Adjust antenna.
• Check all CATV connections.
• Set TV/CATV menu option to the CATV mode.
• Station or CATV system problems, try another station.
• Check antenna connections, adjust or re-direct antenna.
• Check for sources of possible interference.
TV does not operate
Poor sound or No sound
Poor picture or No picture
Horizontal or diagonal
bars on screen
• Select proper language in the menu options. Display is not shown in
your language
No reception above
channel 13
No CATV reception
Picture wobbles or drifts
Poor color or no color
Poor reception on some
channels
• Batteries are weak, dead or inserted incorrectly.
• Remote is out of range, move closer to TV (within 15 feet).
• Make sure Remote is aimed at sensor.
• Confirm there are no obstructions between the Remote and the TV.
• Make sure the power cord is plugged in.
• Make sure TV/CATV menu option is in the appropriate mode.
• If using antenna, check UHF antenna connections.
• No broadcast on station tuned.
• Sleep Timer is set.
• Power interrupted.
• TV station experiencing problems or program tuned is not closed
captioned. Try another channel.
• Check CATV connection or VHF/UHF antenna, reposition or rotate
antenna.
• Press TV/CAP/TEXT button to turn on the closed caption decoder.
Closed - Caption is not
activated
Before requesting service, please refer to the following chart for the symptom and possible solution.
No Remote operation
TV shuts off
CONNECTION TO OTHER EQUIPMENT
The exact arrangement you use to interconnect various video and audio components to the TV
is dependent on the model and features of each component. Check the Owner's Manual
provided with each component for the location of video and audio inputs and outputs.
The connection diagrams below are offered as suggestions. You may need to modify them to
accommodate your particular assortment of components. The diagrams are intended to show
component video and audio interconnections only.
Press the TV/AV selector button to select the AV mode to use the TV as a monitor.
Operate your VCR as usual.
TV/AV SELECTION
If you connect the TV to a VCR, camcorder or
TV game, through the audio/video in jacks,
use the TV/AV button to make your selection.
Press the TV/AV button repeatedly to select
the desired mode.
"AUX" will display on the screen for 4
seconds.
2. To connect the TV to a TV Game
The TV can also be used as a display
device for many video games. However,
due to the wide variety of different types of
signal generated by these devices and
subsequent hook-up variations required,
they have not all been included in the
suggested connection diagrams. You'll need
to consult each component's Owner's
Manual for additional information.
1. To connect the TV to a VCR
AUX
(not supplied)
To Audio/Video
OUT
AUDIO VIDEO
Front of TV VCR
To Audio/Video OUT
(not supplied)
Front of TV
3. To connect the TV to a camcorder
To playback from the camcorder, connect
the camcorder to the TV as shown.
Front of TV
(not supplied)
To AV OUT jack
4
TV GAME VIDEO IN
RESET ENTER
CHANNEL AUDIO IN
