4
Section 3 - Monitor Controls and LEDs
1. Power Indicator: LEDs A, B, and C indicate the state of the Monitor.
• LEDs A, B and C On – Normal operations.
• LEDs B and C On – DPMS (Display Power Management Signaling)
“SUSPEND” mode. The monitor enters SUSPEND mode when the
computer turns off the Vertical Sync. signal. The monitor is in power-
saving mode and uses only 25 W.
• LED C On – DPMS “OFF” mode. The monitor enters OFF mode when
the computer turns off both the Horizontal and Vertical Sync. signals.
The monitor is in minimum power mode and uses only 5 W.
2. Power Switch: Turns monitor on ( | ) or off ( O )
3. Pincushion: Adjusts the pincushion (shape) of the display
4. Vertical-Position: Adjusts the vertical position
5. Vertical-Size: Adjusts the display height
6. Horizontal-Position: Adjusts the horizontal position
7. Horizontal-Size: Adjusts the display width.
8. Contrast Control: Adjusts the contrast. Turn clockwise to increase the
contrast.
9. Brightness Control: Adjusts the display brightness. Turn clockwise to
increase the brightness.
A
B
C
1
2
3 4 5 6 7 8 9

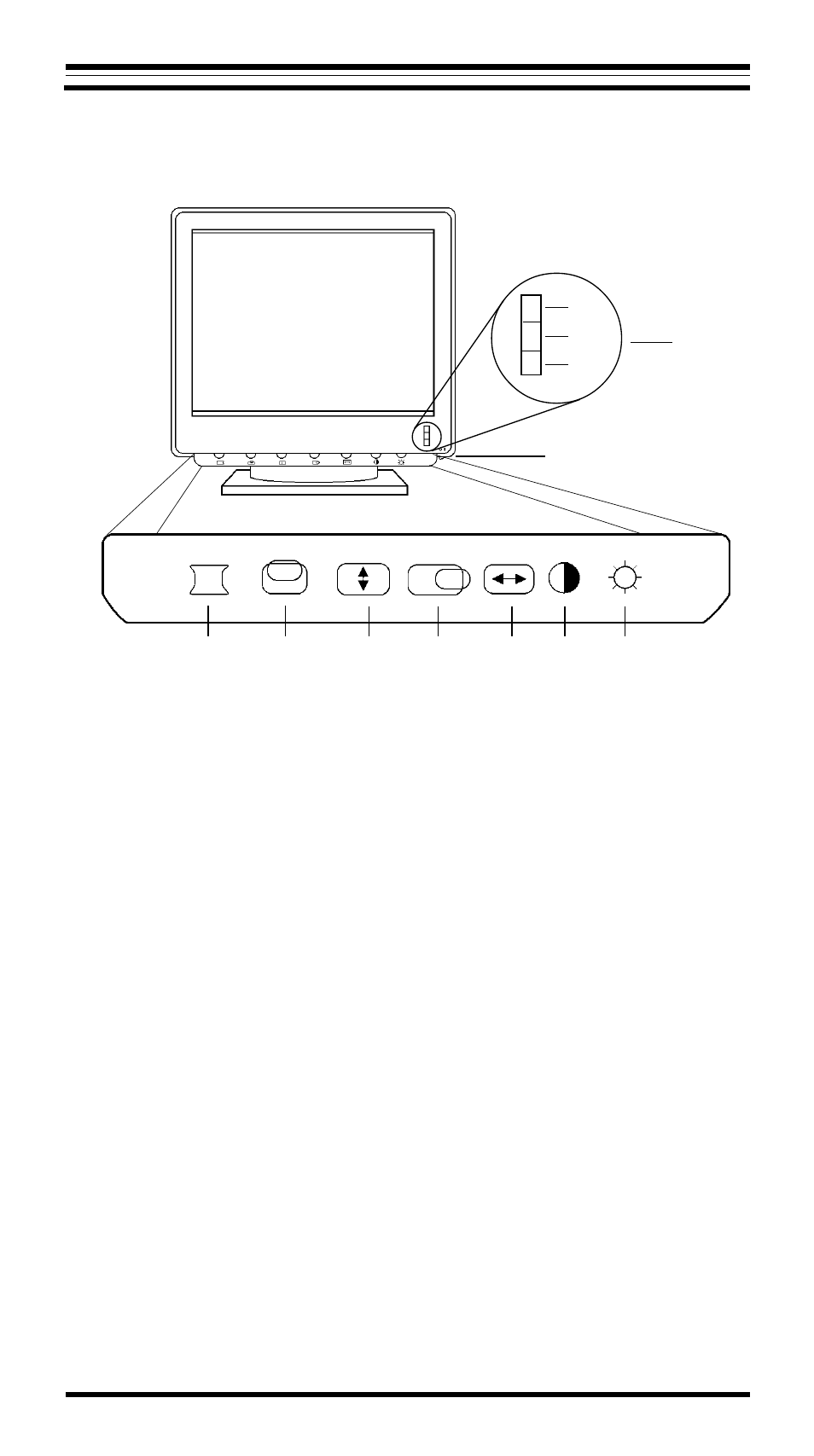

Figure 3-1 Controls and LEDs
