Memorex MP4047 User Manual

Page 7

background image

1.

AUX IN Jack

2.

Headphones Jack

3.

Battery Compartment
(Bottom of Unit)

(BATTERY COMPARTMENT

DOOR PART NO.

622-05638-0010*)

4.

Carrying Handle

5.

Disc Compartment

6.

INFO Button

7.

MODE Button

8.

PROG (Program)/
MEMORY Button

9.

Preset/Folder Up Button

10. PLAY/PAUSE (®p) Button
11. Skip/Search/Tune o Button
12. Display

13. Left Speaker
14. FM Antenna
15. AC Power Jack (Rear of Unit)

(AC CORD PART NO.

248-19052-E010*)

16. POWER Button
17. EQ Button
18. FUNCTION Button
19. CD Door OPEN Area
20. VOLUME Up/Down Buttons
21. Skip/Search/Tune n Button
22. STOP (■)/BAND Button
23. Right Speaker

*Consumer Replaceable Part

(See page 20 to order.)

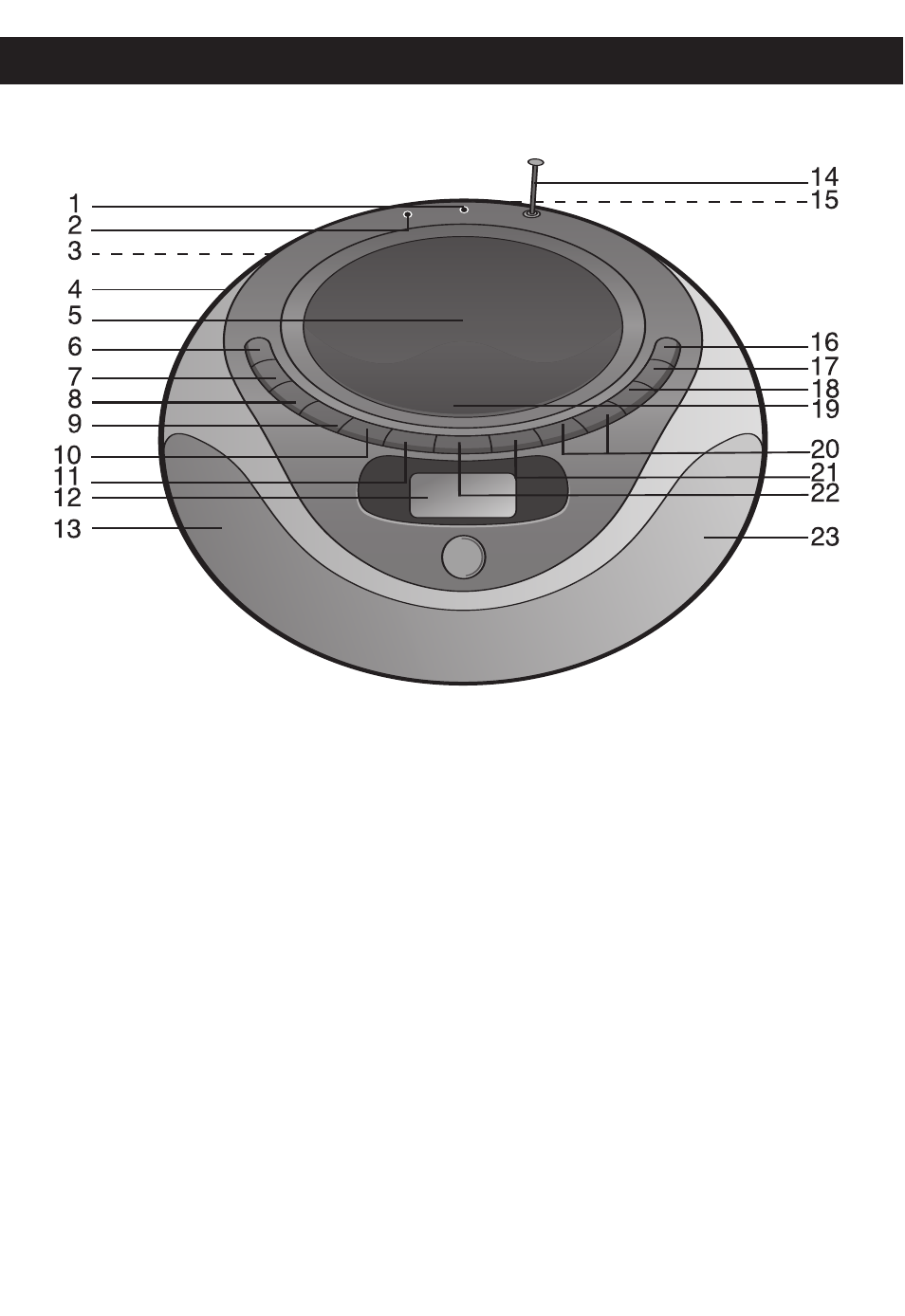

LOCATION OF CONTROLS

6

MAIN UNIT
