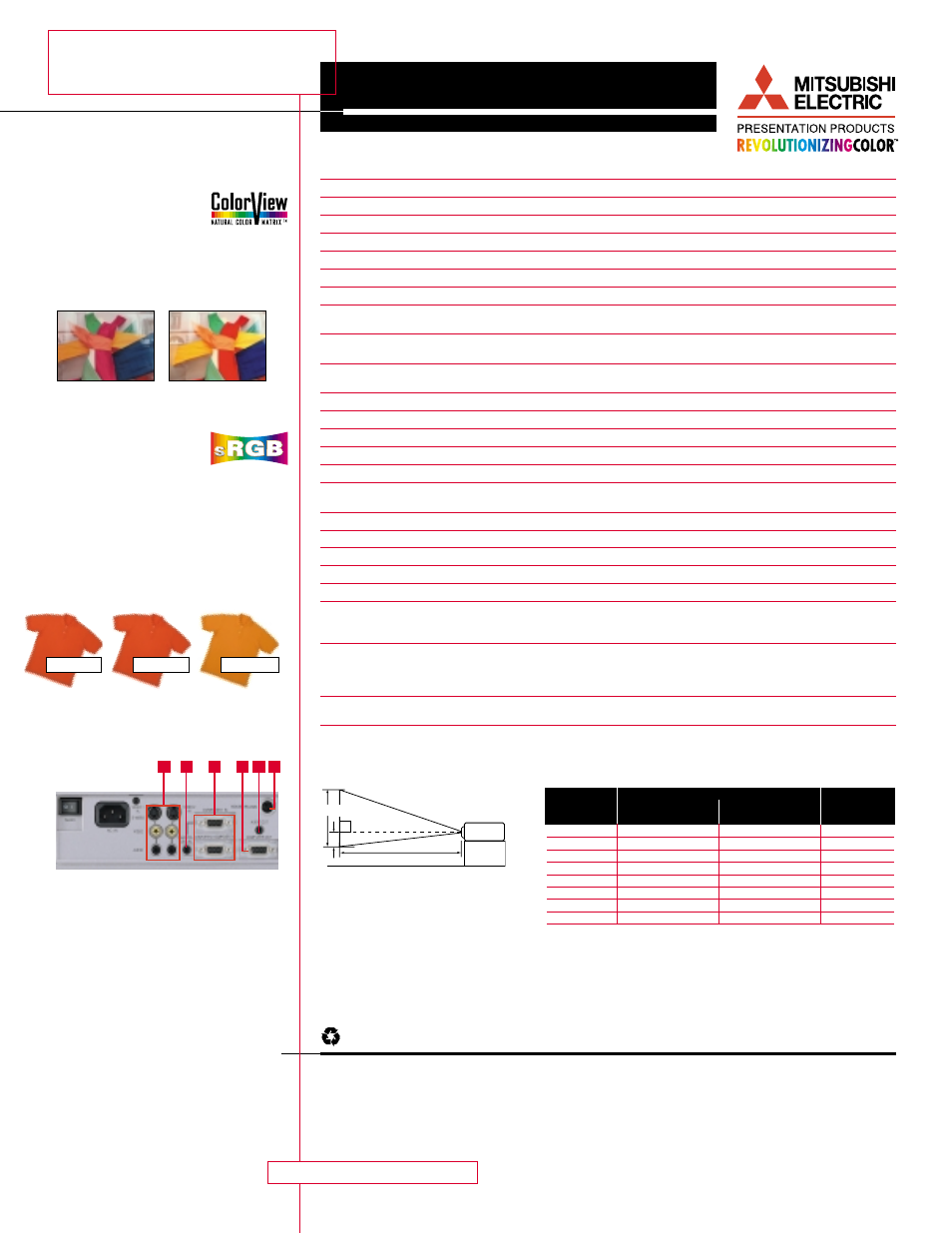

Display Technology
0.7" single chip digital micro device with R,G,B,W color wheel (W-52type)
Resolution
XGA 1024 x 768, 500 video lines
Brightness
2000 ANSI Lumens
Colors
16,770,000 colors
Contrast Ratio
450:1
Zoom/Focus
Manual zoom and focus lens
Picture Size
40"~ 300" (100" = 3.8 m)
Lamp
210 W high-performance compact lamp
Computer Compatibility
VGA ~ XGA (640 x 480 ~ 1024 x 768, compressed 1280 x 1024, Sync on green
available
Video Compatibility
NTSC/NTSC 4.43/PAL (including PAL-M, N)/SECAM/PAL-60/DVD (component)
(525i, 525P) HD (1080i, 720P)
Input Terminals
RGB: mini D-sub 15 pin x 2, Audio: stereo mini jack x 1 (3.5 mm),
Video: RCA x 2 = S video x 2, Audio: stereo mini jack x2 (3.5 mm)
Output Terminals
RGB: mini D-sub 15, Audio: stereo mini jack (3.5 mm)
Communication Terminals
Mouse output x 1 : Min Din9-pin (PS2 mouse, USB mouse)
Audio Speaker
2 W Mono
Scanning Rates
Horizontal: 15 - 92 kHz, Vertical: 50 - 85 Hz, Dot clock: max. 140 MHz
Fan Noise
34 dB
Remote Control/
Projector full control; PS2/Mac cursor control; USB mouse compatible; laser pointer;
Laser Pointer
wireless/wired remote
Power Consumption
280 W
Dimensions (W x H x D)
11.8" x 3.5" x 9.7" (300 x 90 x 245mm)
Weight
6.6 lbs (3.0 kg)
Power Supply
AC 100 ~ 120V / ( 10%, 50/60 Hz
Safety Approvals
CSA, CSA NRT L/C, FCC Class-B
Warranty
Three-year parts and labor; 90 days on lamp. Also includes three-year Emergency
Roadside Assistance program that guarantees free replacement projector shipped
overnight for next business day delivery when and where available
Accessories
Standard: AC power cable; video cable; S video cable; audio cable; RGB cable; PS2 cable,
USB cable, remote unit (with battery); soft carrying case, quick start guide, and
user manual
Option:
Spare lamp bulb, ceiling mount bracket
Special features
ColorView Natural Color Matrix; sRGB color compliance; DCDi technology; CineView™
Video Line-Doubler; digital keystone adjustment; zoom and focus lens; Picture-In-Picture
For more information on the XD200 or any of Mitsubishi’s other projectors or presentation products, contact Mitsubishi
Digital Electronics today. Detailed technical specifications available upon request.
Projector Part Number: XD200U
PP1095-12/01-10M-LITXD200
©2001 Mitsubishi Digital Electronics America, Inc. Standard features, options and specifications subject to change without notice. Microsoft, Windows, and the
Windows logo are registered trademarks of Microsoft Corporation. Mac and the Mac logo are trademarks of Apple Computer, Inc, registered in the U.S. and other
countries. DCDi is a trademark of Faroudja, a division of Sage Inc. Digital Light Processing and DLP are trademarks of Texas Instruments, Inc. All other trademarks or
registered trademarks are the property of their respective holders.
Printed on 50% recycled paper including 20% post-consumer fibers.
Mitsubishi Digital Electronics America, Inc.
Presentation Products Division
9351 Jeronimo Road
Irvine, CA 92618
Toll Free: 888-880-6351
email: [email protected]
Technical Support:
Toll Free: 888-307-0309
Email: [email protected]
Canada:
Mitsubishi Electric Sales Canada Inc.
Information Technologies Group
Markham, Ontario
905-475-7728
www.mitsubishielectric.ca
Projection Distance (L)
Screen Height
H
S
P
E
C
I
F
I
C
A T
I
O
N
S
XD200
colorview
™
projector
www.mitsubishi-presentations.com
Screen
Distance from screen (L)/(approximate)
Diagonal Size
Maximum zoom (WIDE)
Minimum zoom (TELE)
Height Projected
(inch)
(inch)
(inch)
(inch)
40
52
64
3.4
60
78
95
5.1
80
104
127
6.9
100
130
159
8.6
150
194
238
12.9
200
259
318
17.1
250
234
397
21.4
300
389
476
25.7
The above numbers are approximate, and may be slightly different from the actual
measurements.
PRECISE COLOR
REPRODUCTION
WITH sRGB
Developed to ensure standard, uniform
color reproduction regardless of the type
of display used, sRGB color profile uses
color coordinates common to all display
technologies. As a result, it eliminates
the hue variations that occur between
different display systems and accurately
matches the way colors look in real life.
sRGB
Actual
Non-sRGB
COLORVIEW™ NATURAL
COLOR MATRIX
Mitsubishi’s award-winning
ColorView enables the
XD200 to produce vivid colors that pre-
cisely match their real-life counterparts,
as well as giving you the ability to pre-
cisely adjust color saturation and control
color tones.
Without ColorView
With ColorView
INPUT AND OUTPUT
TERMINALS
1.Video/audio input
2.PC audio input
3.PC analog RGB input (mini D-Sub 15P)
4.PC analog RGB output (mini D-Sub 15P)
5.PC audio output
6.RS-232C input (Din-9P)
1
2
3
4
5 6
