Vermont Castings EWF36A

20005167

Specifications

Range of heat output*................ 11,300 - 75,500 Btu/hr

Maximum heat output** ..... in excess of 100,000 Btu/hr

EPA emissions rating (g/h, catalytic) .......................2.4*

Area heated*** ............... Up to 2500 sq. ft. (558 sq. m)

Size of wood splits .....................18” - 24” (450-610mm)

Fuel Capacity............................................ 40lbs. (18kg)

Loading ..................................................................Front

Flue size ..................................................... 8” (200mm)

Fireplace weight ................................................ 741lbs.

Primary Air Control ............................................ Manual

Glass panel.......................... High-temperature ceramic

Flue exit position...................................................... Top

Blower rating................................160cfm. (115V, 60Hz)

*Under specific test conditions used during EPA emis-

sions standard testing.
**This value can vary depending on how the unit is

operated, and the type and moisture content of the fuel

used. Figure shown is based on maximum fuel con-

sumption obtained under laboratory conditions and on

average efficiencies.
***These values are based on operation in building-

code conforming homes under typical winter climate

conditions. If your home is of nonstandard construction

(e.g. unusually well insulated, not insulated, built under

ground, etc.) or if you live in a more severe or more

temperate climate, these figures may not apply. Since

so many variables affect performance, consult your Ver-

mont Castings’ Authorized Dealer to determine realistic

expectations for your home.

EWF36A

" (25mm)

(16mm)

Recessed

Nailing

Flange

5167

EPA36 specs

1356O" Dia.

(343mm)

Rough Opening Width 43"

Rough

Opening

Height

Rough

Opening

Depth

6756M" (1708mm)

56M

" (1708mm)

56O" (1207mm)

5/8" (16mm)

95" (2413mm)

27"

(686mm)

26"

(660mm)

856O"

(216mm)

(1092mm)

41" (1041mm)

4756O"

(1207mm)

5156O"

(1308mm)

36" (914mm)

41" (1041mm)

1456M"

(362mm)

1456M"

(362mm)

12(6 "

(327mm)

4(6 "

(124mm)

1256O"

(318mm)

Electrical

Access

Outside

Air

12(6 "

(327mm)

EWF36A Woodburning Fireplace

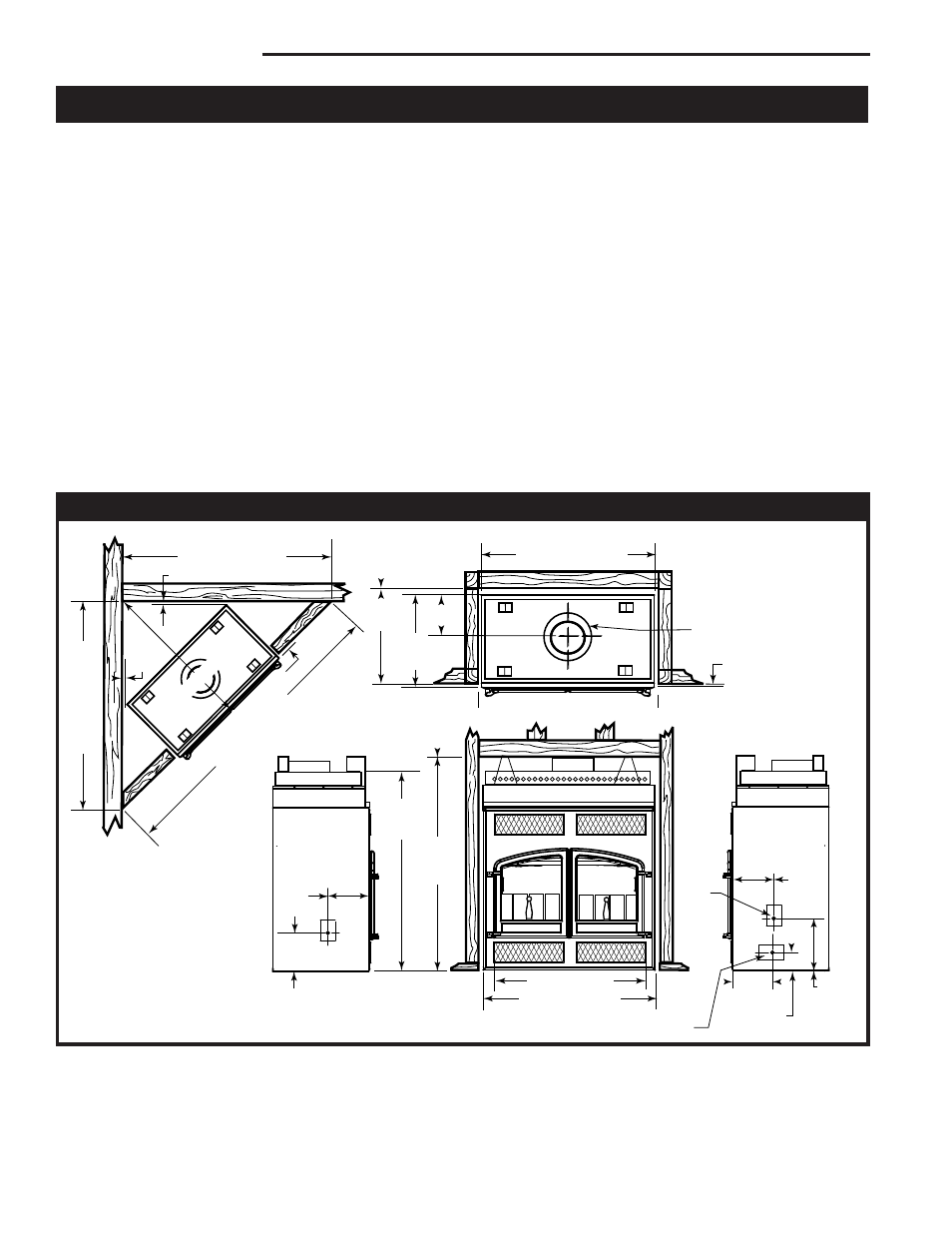

Fig. 1 EWF36A specifications and framing.
