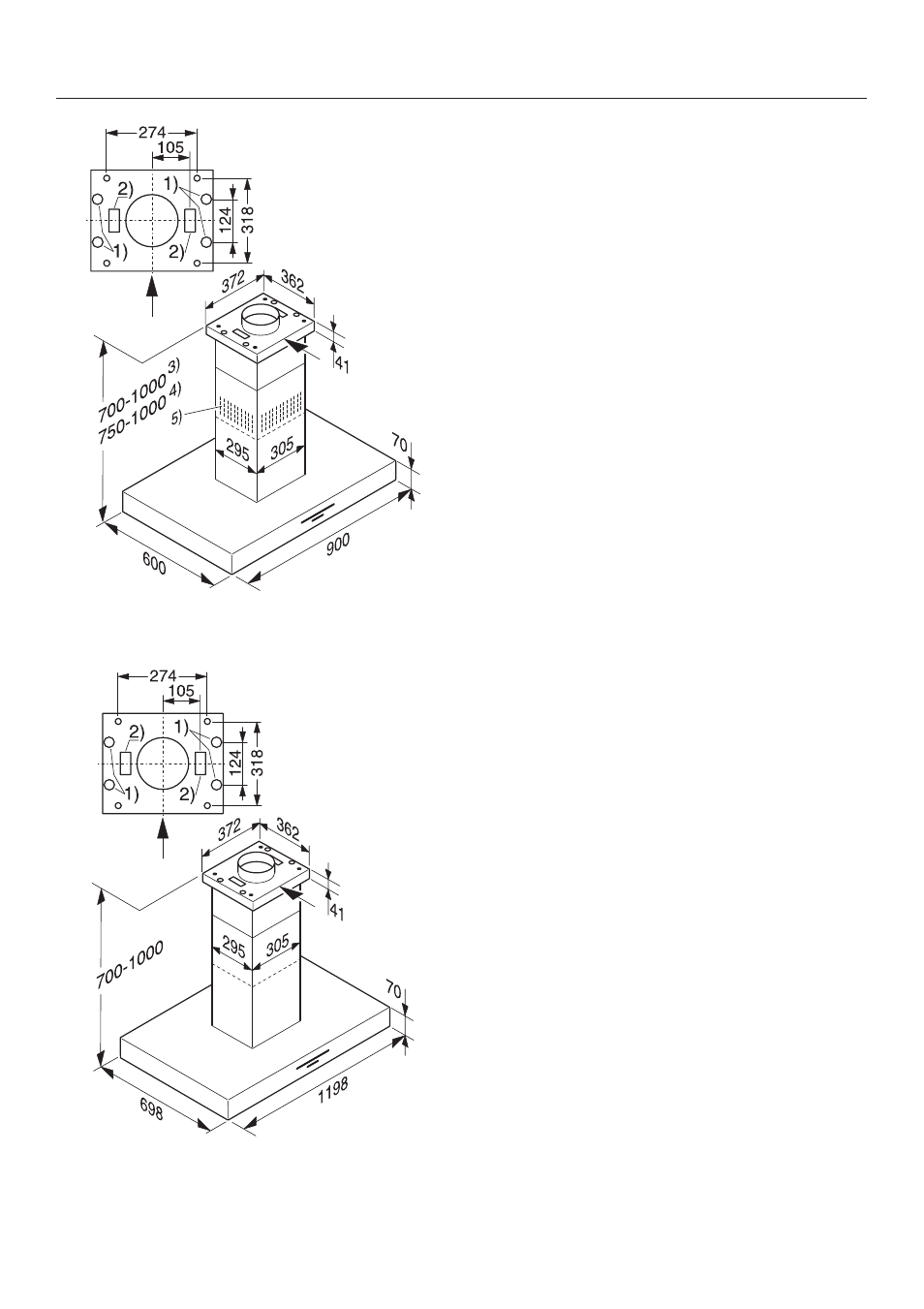

DA 420 V
(Ceiling fixing viewed from above)
DA 424 V
(Ceiling fixing viewed from above)
1) Alternative positions for feeding
through the mains cable
2) For EXT appliances:
Cut-out for feeding the connection
cable through to an external motor,
min. 65 x 30 mm
3) Height range for appliance in
extraction mode
4) Height range for appliance in
recirculation mode
5) Ventilation grille positioned at the top
for recirculation
Exhaust connection
C 150 mm (not
needed for recirculation mode)
Appliance dimensions
24
