BMG SERIES
BOTTOM MOUNTED MEDIUM TEMP
GLASS DOOR MERCHANDISERS
TECHNICAL SPECIFICATIONS
LISTINGS
HOOKUP
BID SPECIFICATIONS
Item no. BMG-_____________________ .
Provide _________( )
Bottom Mounted Medium Temp Glass
Door Merchandiser(s), Master-Bilt model
no. BMG- _________ .
Merchandiser will feature textured finish
on interior and exterior. Energy efficient
LED interior lighting will be standard.
Other standard features will include ad-
246-6/13-web
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
Via plug in, 9 foot long, flexible three wire
14/3 cord with molded plug.

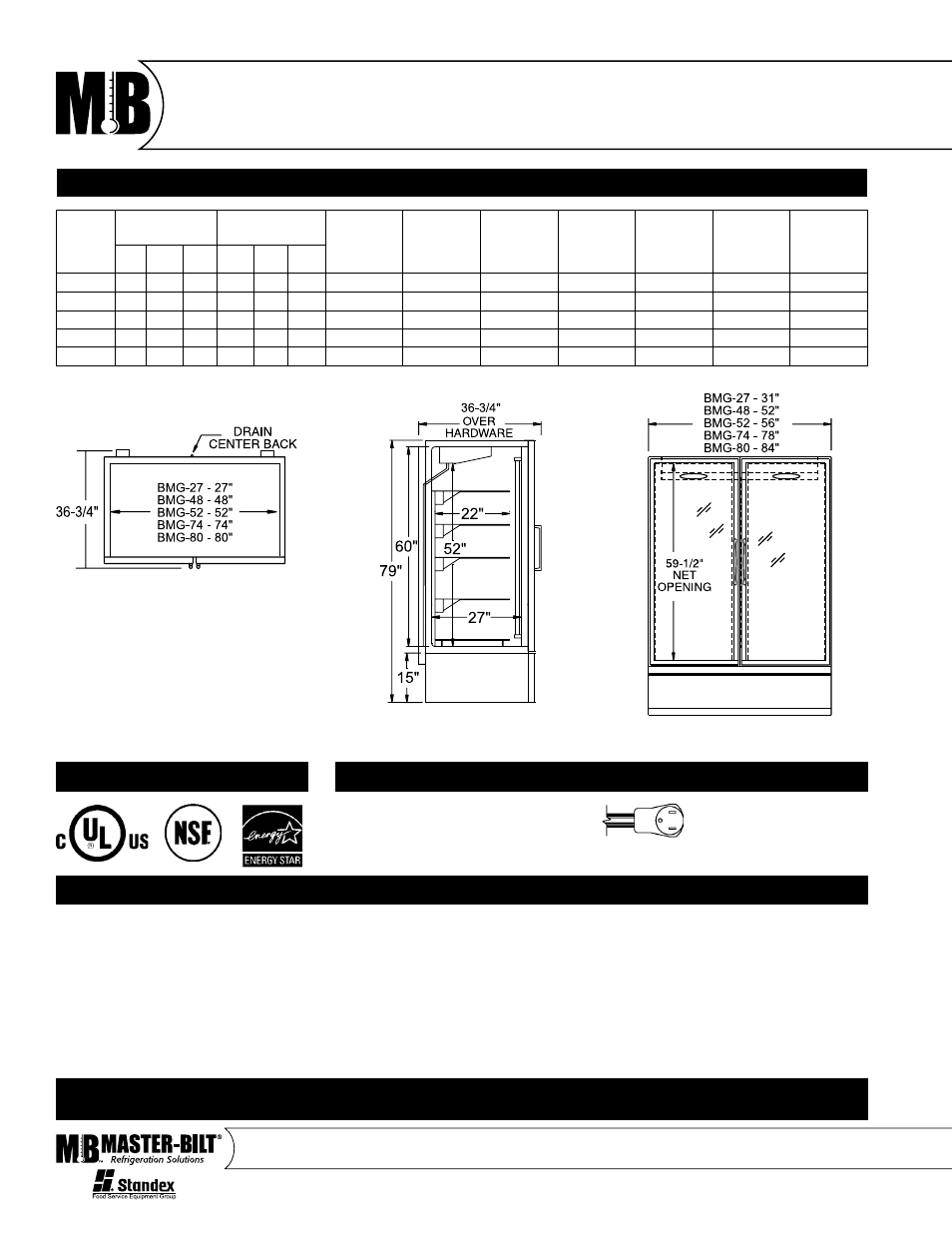

PLAN VIEW
SIDE VIEW
ELEVATION VIEW
justable torsion bar hinges, top mounted
low profile interior fan housing, automatic
condensate evaporator, independent on/
off light switch and black door rails and
handles. Merchandiser also to be equipped
with five white epoxy-coated shelves (four
cantilever and one bottom) with price tag
molding per door.
The refrigeration system is to be bottom
mounted, self-contained and use R-134a re-
frigerant. The temperature range will be 34°
to 41°F (1° to 5°C).
Merchandiser to have standard limited
three year parts and labor with additional
two year coverage on compressor part.
Merchandiser to be UL, C-UL and NSF
listed as well as ENERGY STAR qualified.
MODEL
DIMENSIONS
(in.)
DIMENSIONS
(mm)
VOLTS
AMPS
UNIT H.P.
NO. OF
DOORS
CAP.
CU. FT.
SHIP
CU. FT.
SHIP WT.
(LB/KG)
L
D
H
L
D
H
BMG-27 31 36
3
/
4
79
787 933 2007
115
7.6
1/5
1
27.5
79.0
520/236
BMG-48 52 36
3
/
4
79 1321 933 2007
115
7.6
1/3
2
49.0
117.0
755/343
BMG-52 56 36
3
/
4
79 1422 933 2007
115
7.6
1/3
2
53.0
128.0
775/352
BMG-74 78 36
3
/
4
79 1981 933 2007
115
11.9
1/2
3
75.5
168.0
1025/466
BMG-80 84 36
3
/
4
79 2134 933 2007
115
11.9
1/2
3
81.6
185.0
1065/484
NEMA 5-15P
