POWER SOURCE
OPTIONAL CONNECTIONS
AC:
Use the AC polarized line cord included with the unit for
operation on AC power. Insert into a conveniently located AC
outlet having 120V, 60Hz.
NOTE: The AC plug supplied with the unit is polarized to help
minimize the possibility of electric shock. If the AC plug does
not fit into a nonpolarized AC outlet, do not file or cut the wide
blade. It is the user’s responsibility to have an electrician
replace the obsolete outlet.
AC Plug
AC Outlet

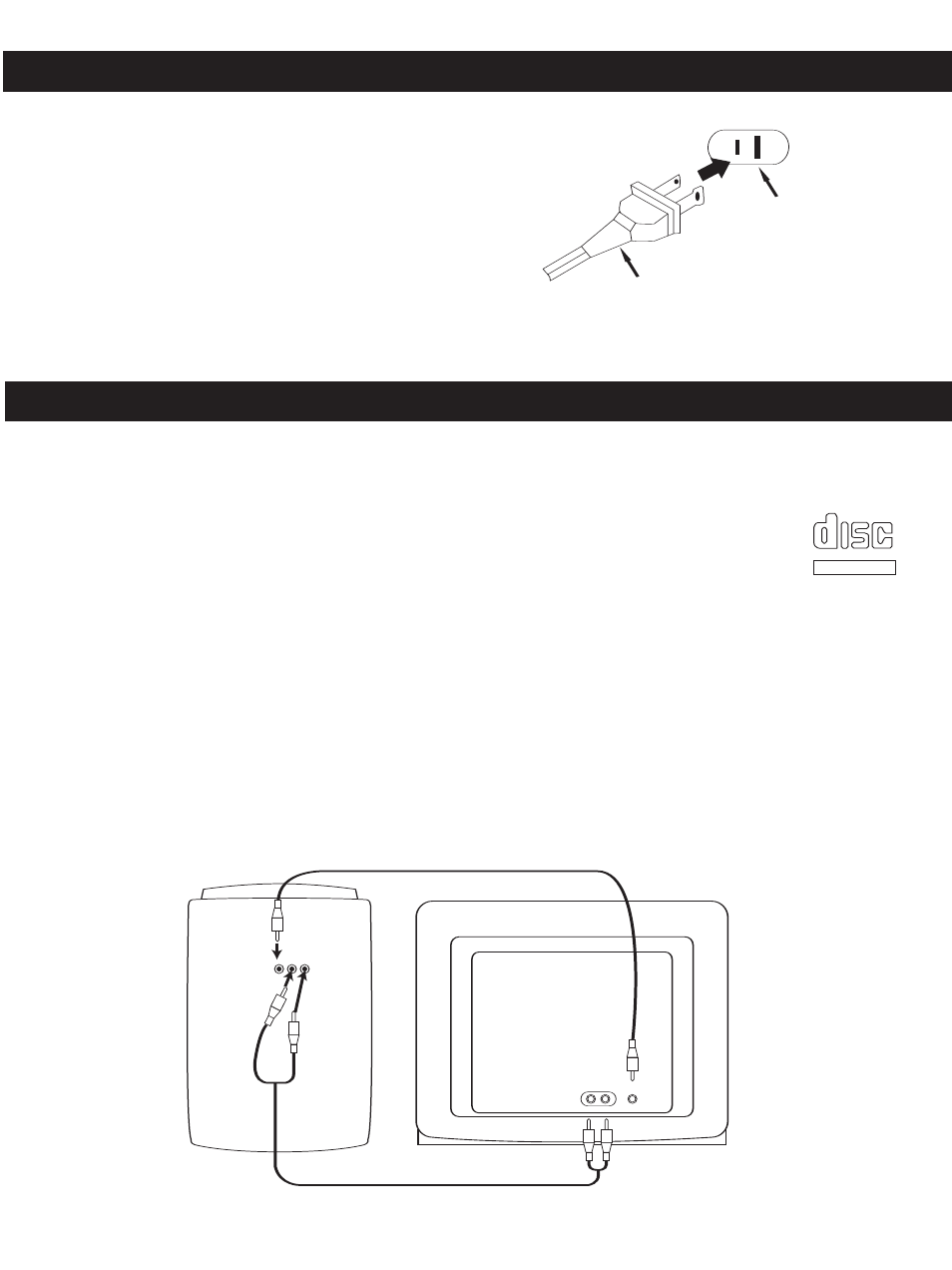

If you are using special CD+G (Graphics) discs in this portable Karaoke system, you must connect this unit
to a television set in order to see the On-Screen Graphics that are recorded on CD+G Karaoke discs.
The video cable has yellow RCA type plugs on each end. Please note that your TV set must have an RCA
type Video Input jack in order to view the CD+G lyrics on your TV screen. You cannot connect
this portable Karaoke system to your TV’s coaxial antenna terminal.
Also note that On-Screen lyrics are only available on special Karaoke compact discs that bear
the CD+G mark.
Many newer TV sets have a set of Video and Stereo Audio jacks on the front panel for quick and easy
connections without having to turn the TV set to gain access to the jacks on the back panel. If your TV set
has such front panel A/V jacks, we suggest that you use those jacks to connect your portable Karaoke
system.
After connecting the Video Out jack on this portable Karaoke system to the Video In jack on your TV with the
included video cable, you have the following three choices:
1. Listen to the sound from the built-in speakers in this portable Karaoke system. In this case, no external
audio connections are required.
2. If your TV has stereo audio input jacks, you can connect the Audio Out jacks on the back of this unit to
the Audio In jacks on your TV. The stereo audio connection cable is included. In this case, the lyrics from
the CD+G disc will appear on your TV screen and the sound from the disc will be heard from your TV
speakers.
From
Audio
Out
To
Video
In
To
Audio In
KARAOKE TELEVISION
From
Video
Out
COMPACT
DIGITAL AUDIO
GRAPHICS
