There are four LEDs for both UTP and fiber ports:

4
4
4

MDI-X

MDI

1 2 3

5 6

p‹“@Q]rxK

p‹“@R]rxM

p‹“@S]txK

p‹“@V]txM

@@@@@@@@@@@@@@@@@@@p‹“@Q]txK

p‹“@R]txM

p‹“@S]rxK

p‹“@V]rxM

f‹‰š—‡@QN@rjMTU@p‹“”š™˜

D = Duplex; On indicates Full Duplex.
A = Activity; On indicates receiving packets at port.
S = Speed; On indicates rate is 100 Mbs.
L = LINK; On indicates an active connection at port.

The MDI-X/MDI switch allows for quick configuration of the
100BASE-TX port. Cables used when the switch is in the MDI-X
position (the "left" position:

For a hub/repeater, use a swap cable (pins are
connected 1 to 3, 2 to 6, 3 to 1, and 6 to 2).
For a workstation/PC, use a straight-through cable
(pins are connected 1 to 1, 2 to 2, 3 to 3, and 6 to 6).

Cables used when the switch is in the MDI position (the"right"
position):

For a hub/repeater, use a straight-through cable (pins
are connected 1 to 1, 2 to 2, 3 to 3, and 6 to 6).
For a workstation/PC, use a swap cable (pins are
connected 1 to 3, 2 to 6, 3 to 1, and 6 to 2).

1. Make any configuration changes to the module DIP switch settings.
2. Remove cover plate from MCS chassis.
3. Slide module into a slot through the card guides.
4. Firmly seat module into card-edge connector.
5. Secure module with thumbscrews located on module faceplate.
6. Plug in network connections.
Note: There is no need to power off the Media Conversion System.

To maximize the fiber cable distance, use one meter of CAT 5 UTP cable
when connecting directly to a node (subject to fiber budget of 16dBm and
collision domain restrictions). In full-duplex environments, use up to
100m of CAT 5 UTP and:

2Km of multi-mode optical fiber for MIL-S3412, S3413, S3414

15Km of single-mode optical fiber for MIL-S3413-15, S3414-15

40Km of single-mode optical fiber for MIL-S3413-40

70Km of single-mode optical fiber for MIL-S3413-70

100Km of single-mode optical fiber for MIL-S3413-100

Multi-mode fiber (2Km)
4

1300nm wavelength

62.5/125 micron diameter

Launch power: -19dBm minimum

-31dBm receive sensitivity

Single-mode fiber (40Km)
4

1300nm wavelength

9/125 micron diameter

Launch power: -4dBm minimum

-34dBm receive sensitivity

Single-mode fiber (100Km)
4

1550nm wavelength

9/125 micron diameter

Launch power: 1.8dBm minimum

-37dBm receive sensitivity

Single-mode fiber (15Km)
4

1300nm wavelength

9/125 micron diameter

Launch power: -15dBm

-31dBm receive sensitivity

Single-mode fiber (60Km)
4

1550nm wavelength

9/125 micron diameter

Launch power: 0dBm minimum

-37dBm receive sensitivity

Up Position

Down Position

Switch 1

Auto-Negotiation

Enable Port 1

Disable Port 1

Switch 3

Speed

100Mbs Port 1

10Mbs Port 1

Up Position

Down Position

Switch 5

Duplex

FDX Port 1

HDX Port 1

Switch 6

Duplex

FDX Port 2

HDX Port 2

Switch 4

Speed

100Mbs Port 2

10Mbs Port 2

Switch 7

Packet size

1518 Bytes
1522 Bytes

Switch 2

Auto-Negotiation

Enable Port 2

Disable Port 2

Speed and Half/Full Duplex or Auto Negotiation may be manually
selected using the seven-position DIP switch.
All switches must be in the up position to utilize SNMP feature selection.
Fiber ports operate at 100Mbs only.
Port 1 is on the left. Port 2 is on the right.

MDI-X/MDI

Switch

RJ -45

Connector

LEDs

6
7

7- pin DIP Switch

MDI-X/MDI

Switch

RJ -45

Connector

M DI-X / M DI S w itch (Fig ur e 1 )

Ins ta lla tio n

Dia g no s tic LEDs a nd Co nd itio ns Ind ica te d

Dip S w itch Fe a tur e s (Fig ur e 2 )

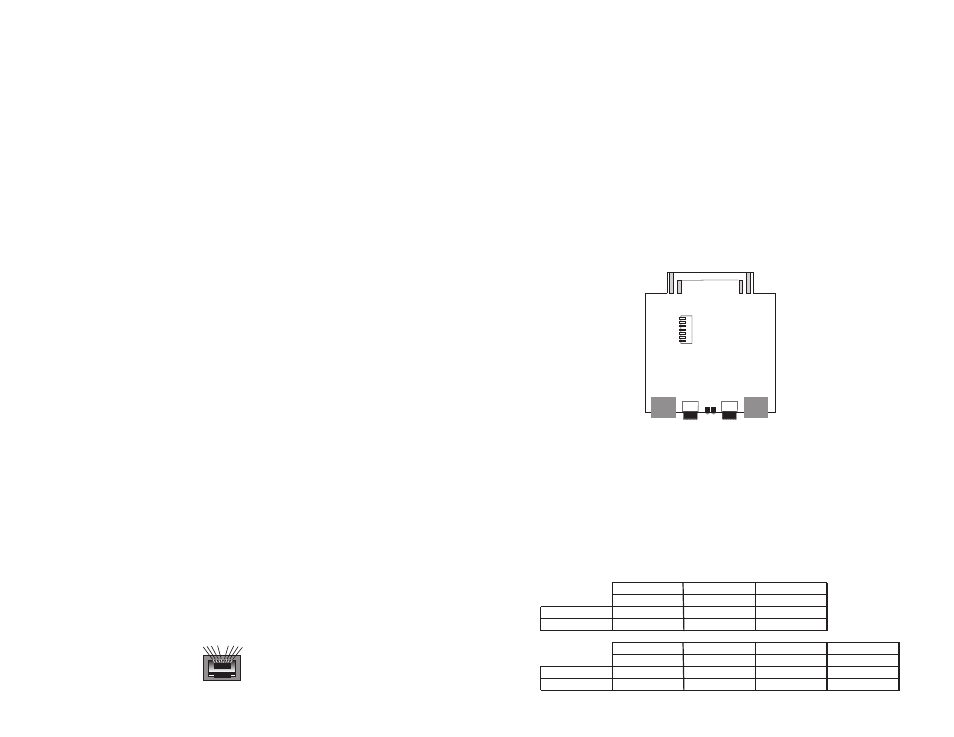

Fig ur e 2 . Ins id e o f the M IL-S 3 4 1 0
