Merco Savory PD-4 - Manual (Page 9)

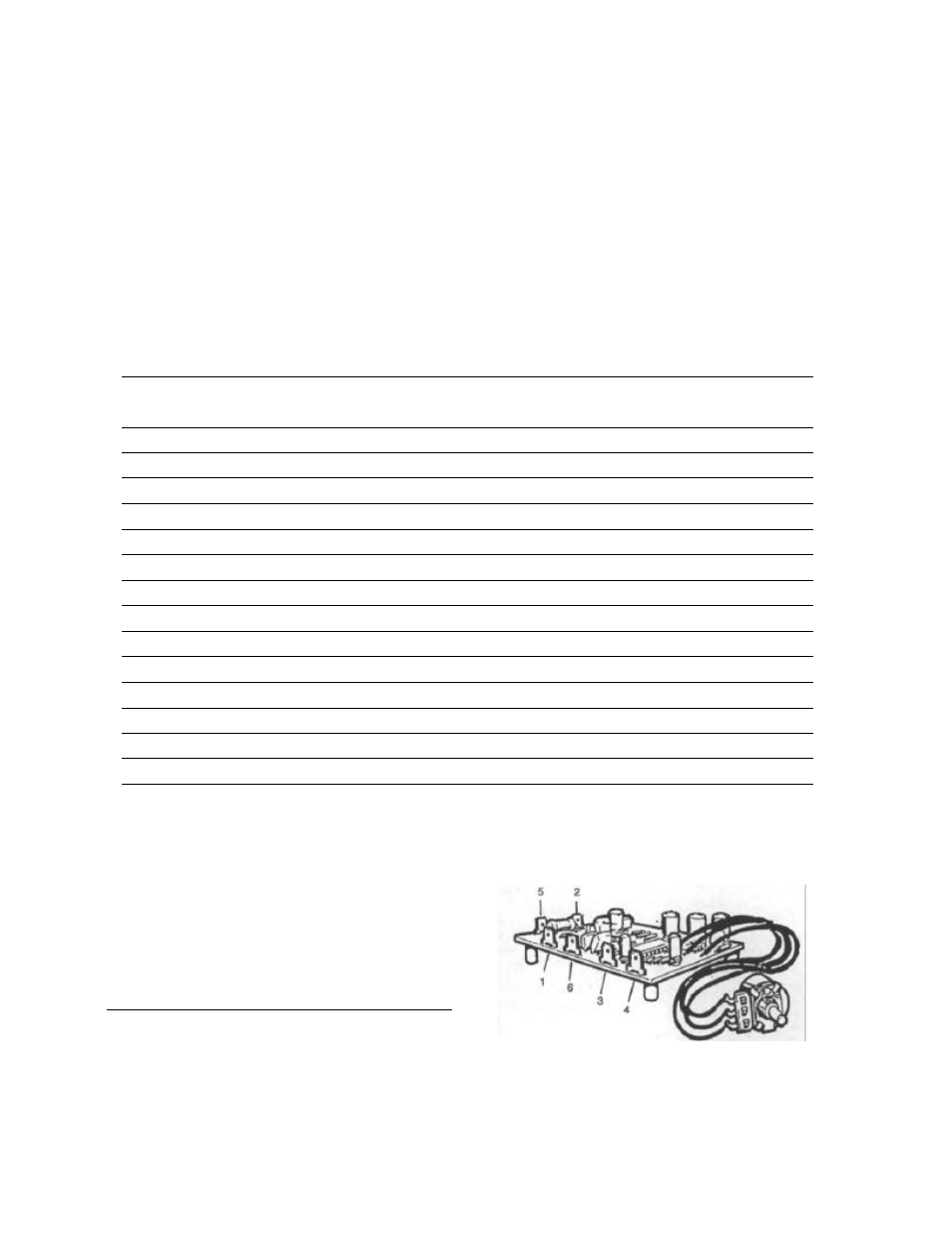

TIMER PERFORMANCE CHART
I
LEGEND - TIMER TERMINALS
TERMINALS #1 & #2 - INPUT VOLTAGE TO TIMER
TERMINALS #5 & #1 -- RELAY COIL (INPUT)
TERMINALS #6 & #1 - SOLENOID
TERMINALS #3 & #2 - RESET BUTTON
TERMINALS #4 & #2 - PUSH TO TOAST BUTTON
TYPICAL TOASTING TIMES
Minimum setting (Light) 40-50 seconds.
Maximum setting (Dark) 2 min., 10-40 seconds.
LINE
VOLTAGE
TO
TOASTER
TERMINALS
#6 &
#1 VOLTS
MEASURED
WHILE
DEPRESSING
RESET
BUTTON
TERMINALS
#5 & #1
VOLTS
MEASURED
WHILE
TOASTING
TERMINALS
#3 & #2-
VOLTS
MEASURED
WHILE
DOORS
OPENING
TERMINALS
#4 & #2
VOLTS
MEASURED
WHILE
TOASTING
A.C.
VOLTS
A.C. VOLTS
( t 10%)
A.C. VOLTS A.C. VOLTS A.C. VOLTS
95 52 50 8-9 8-9
100 54 53 8-9 8-9
105 57 55 8-9 8-9
110 59 57 8-9 8-9
115 62 60 8-9 8-9
120 65 62 8-9 8•.9
125 69 65 8-9 8-9
190 98 95 8-9 8-9
200 103 100 8-9 8-9
210 108 105 8-9 8-9
220 113 110 8-9 8-9
230 119 115 8-9 8-9
240 124 120 8-9 8-9
250 125 124 8-9 8-9
