Looking at or near the Sun will cause irreversable damage to your eye. Do not point
this telescope at or near the Sun. Do not look through the telescope as it is moving.
7

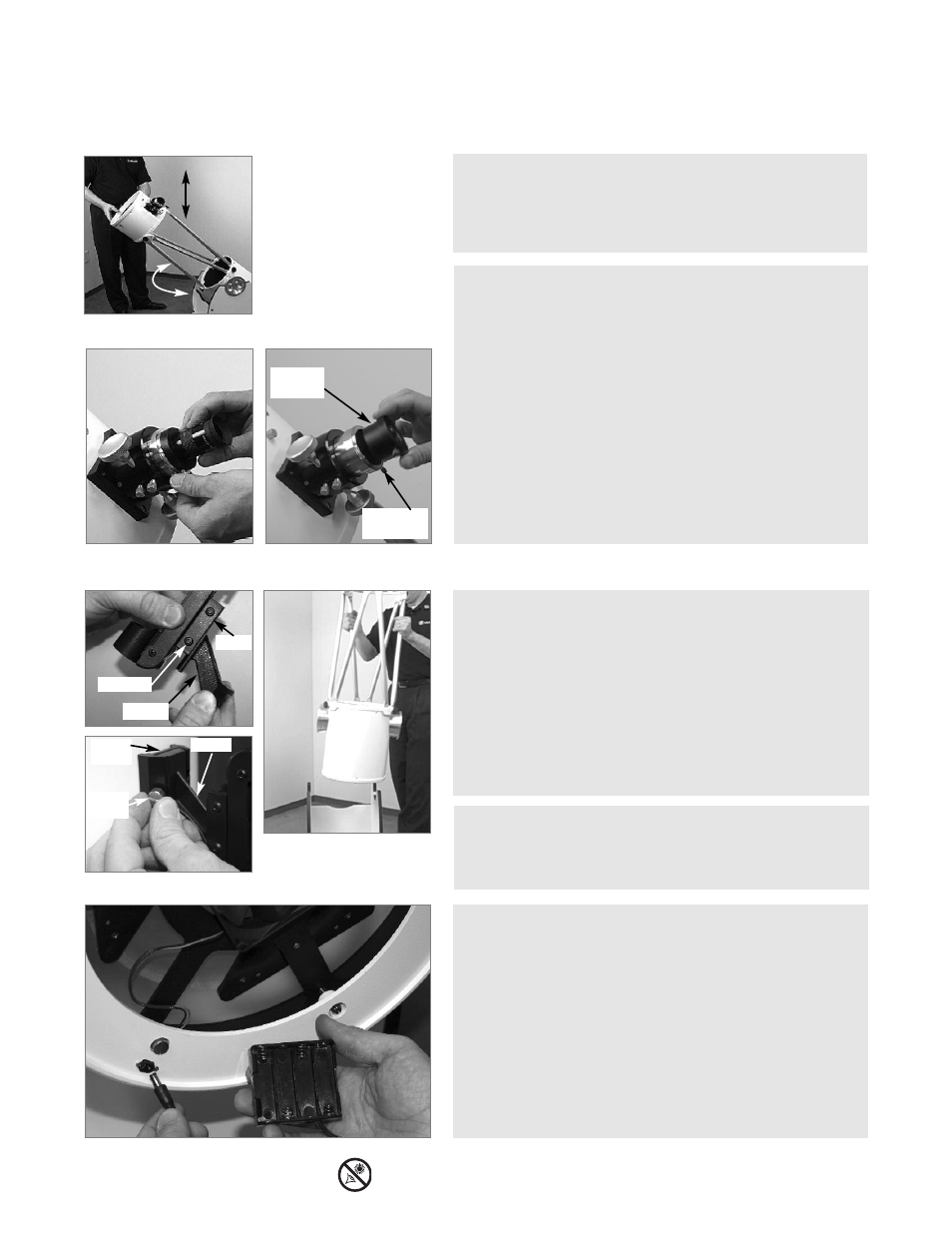

STEP 10: The entire assembly should move easily up and
down and from side to side.
INSERT EYEPIECE AND ATTACH RED DOT FINDER
STEP 11: If you wish to insert the deluxe 2 inch eyepiece,
remove the 1.25" eyepiece holder (15) from the focuser assem-
bly by loosening holder thumbscrew (as shown in photo to the
left). Slide the 2 inch eyepiece into the focuser and tighten with
the eyepiece locking screw. To focus the eyepiece, turn the
focuser wheels (13) in or out.
The focuser has both a lock knob and a tension adjustment knob.
The first lock prevents the draw tube (16) from moving in and out.
The second lock locks the focuser knob, thereby
locking a focus position into place. Experiment with these knobs
to discover which adjustments are comfortable with your viewing
style.
Note that the 16" model comes with a two-speed focuser. Use
the large focus wheel (13A) for fast focus and the small focus
knob (13B) for fine focus.
STEP 12: A red dot finder projects a red dot in place of
crosshairs, to make it easier to line up more precisely with a
target.
First, assemble the red dot finder. Slide the bracket over the
groove of the red dot finder scope. Tighten the two hex screws
with the supplied hex wrench to secure in place.
Slide the red dot finder bracket into the slot on the top OTA. Slide
it in from the top (it will only go into the slot from this end). Tight-
en the thumbscrew to hold the red dot bracket securely in place.
You will need to align the red dot finder. See page 8.
STEP 13: To move the telescope, remove the tube assembly
from the base assembly. Grasp the tube assembly by the truss-
es and lift up. It is recommended that you relocate the telescope
when it is disassembled into two pieces.
STEP 14:
Note that there is a fan on the bottom of the mirror
tube. It is powered by a battery pack using 4 AA user-supplied
batteries.
If you begin observing at sunset, and the telescope has been
heated by the sun or by being in your car, you may notice
“turbulence” in your images. In this case, you can run the fan until
your images stabilize and are steady. The fan probably needs to
be used less than an hour.
Note also that there are three lock screws and three collimation
screws. These screws are for use with the collimation procedure.
See page 14.
eyepiece
holder
holder
thumbscrew
bracket
groov
hex screw
bracket top end
thumb-
screw
