Meridian America Analogue Controller 502 - Manual (Page 2)

Technical Specification
Distortion: Less than 0.01% input to output.
Signal/Noise: Better than –96dB CCIR (1V output, normal input) Less than
–70dB for MM input and –60dB for MC.
MM option: Sensitivity adjustable 0.5–17mV for 5cm/s @1kHz. Overload
point 47mV @ 1kHz. Cartridge load 47k ohms + 100pF.
MC option: Sensitivity adjustable 38–1200µV for 5cm/s @1kHz.
Cartridge load 220 ohms + 10nF.

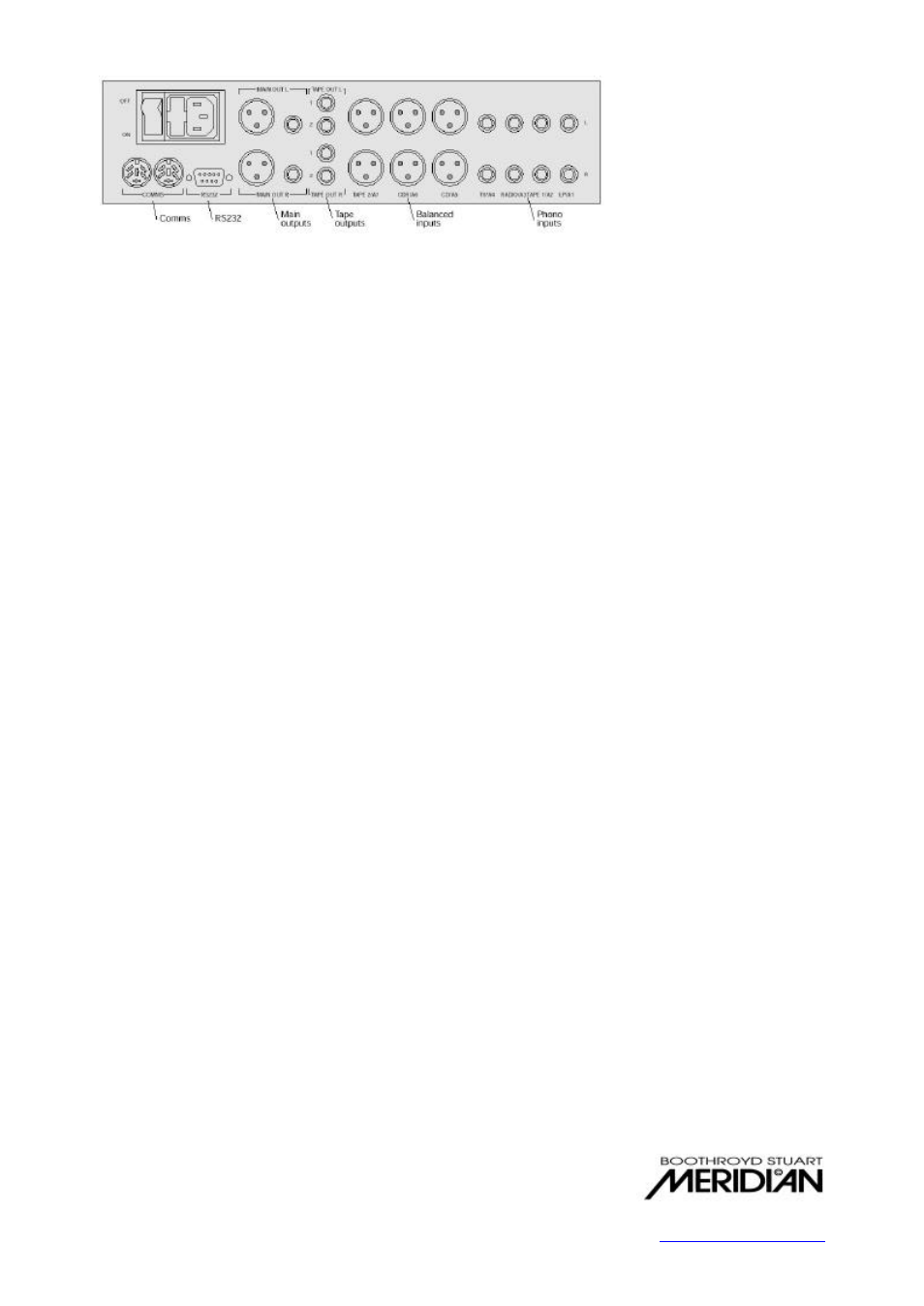

Inputs: 4 unbalanced on phono, 27–840mV rms (impedance 20k
ohms).
3 balanced on XLR, 27–840mV rms (impedance 20k ohms).
Outputs: 1 unbalanced on phono, 1.4 –3V rms (impedance 47 ohms).
1 balanced output on XLR, 1.4–3V rms (impedance 47 ohms).
Tape outputs: Two unbalanced 1.5V rms (impedance 47 ohms).
Construction: Two-channel dual-mono construction.
High-grade components used throughout.
Phono option with new moving-coil or magnetic plug-in
modules for each channel.
Large low-field ultra-linear power supply.
Black textured enamel and glass finish.
Dimensions: 88mm (3.46in) H, 321 (12.64) W, 332 (13.07) D.
Weight 5kg (10lbs).
Controls: Front panel controls for Source, Copy, Mute, Display, Volume
up/down, Off. Volume control: 99 steps of 1dB with balanced
mode.
Remote control, Meridian 500-Comms and RS232 operation
Two Room Plus compatible.
Front display: 8-character dot-matrix LED display.
502
Analogue Controller
Sales information
1
st December 2001
