Pulsar Evolution UPS 500 800 1100 1500 2200
Power VA/W 500/350 800/560 1100/700 1440/1000 1920/1540
Versions 1U Rack Mini-Tower and 1U Rack Versatile Tower/2U Rack
Installation possibilities Rackable, stackable, Mini-Tower version: vertical or horizontal Rackable, stackable or
vertical tower Rack version: rackable or stackable vertical tower w support base
or wall-mount
Number of outlets 4 4 4 4 6
Including Powershare outlets 2 2 2 2 2
Battery extension (EXB modules) – – – – From 1 to 3 EXBs
Performance
Technology High-Frequency Line-Interactive
Automatic voltage regulation Booster/Fader
Output voltage waveform Sinewave
Input voltage tolerances 92V/138V, adjustable to 80V/153V via supplied UPS-Driver software
Frequency 50/60 Hz, auto-select
Output voltage on battery power 120VAC (adjustable to 100/120/127V via supplied UPS-Driver software)
Input Connection NEMA 5-15 straight plug, 6 foot cord NEMA 5-20P
Output Connection NEMA 5-15
Features
Automatic battery test Weekly (interval adjustable via supplied UPS-Driver software)
Hot swappable batteries x x x x x
Cold start x x x x x
Deep discharge protection x x x x x
UPS-Driver for Windows Settings: Input voltage tolerances, Sensitivity, Battery test, ON/OFF conditions
Data line protection Surge protection for RJ45 network connection
Network Administration/Monitoring
Communications 1 USB port + 1 Serial port
Software supplied (Solution-Pac CD) Including local power management software and SNMP proxy-agents for Windows 2000/NT/98
Linux, Netware, OpenServer, Unixware, SUN Solaris, IBM AIX, HP UX, Compaq Tru64, etc.
Communication Expansion Slot 1 slot for optional Network Management Card (66246) or status indication card
Standards/Warranty
Safety EN 50091-1-1/EN60950(RD),IEC 60950,TÜV GS-Mark
Electromagnetic compatibility EN 50091-2,EN 50022/B,IEC 62040-2,IEC 61000-3-2,IEC 61000-3-3
Design, production and services ISO 9001
Marking UL, cUL, FCC Class A, UL1778
Warranty (U.S. and Canada) 2 years, parts and labor
Effective: February 2005
©MGE UPS SYSTEMS, Inc. All specifications subject to change without notice. The MGE UPS SYSTEMS logo is a trademark of MGE UPS SYSTEMS.
Distributed by:
Power Sources Unlimited (website www.psui.com)
Telephone: (800)966-7784
Fax Number: (508)384-1896
Dimensions, weight and ref. 500 800 1100 1500 2200
Tower dimensions (HxWxD in inches) – 5.9 x 9.3 x 16.3 5.9 x 9.3 x 19.0 –
Rack dimensions (HxWxD in inches) 1.73 (1U) x 17.2 x 13.9 – 1.73 (1U) x 17.2 x 19.6 1.73 (1U) x 17.2 x 20.6 3.5 (2U) x 17.2 x 25.2
Tower/Rack weights (in =lbs.) – / 19.8 23.1/– 25.3/35.2 33/41.9 74.7
EXB module weight – – – – 92.3
Accessories supplied removable and repositionable 19” rack-mount brackets, universal telescopic rails,
with Rack versions: mounting hardware kit, rear attachment, cable lock system
Tower ref. – 89341 89343 89345 –
Rack ref. 89340 – 89344 89346 –
Tower convertible to Rack ref. – – – – 89347
EXB module ref. 89350
MGE UPS SYSTEMS T H E U N I N T E R R U P T I B L E P O W E R P R O V I D E R

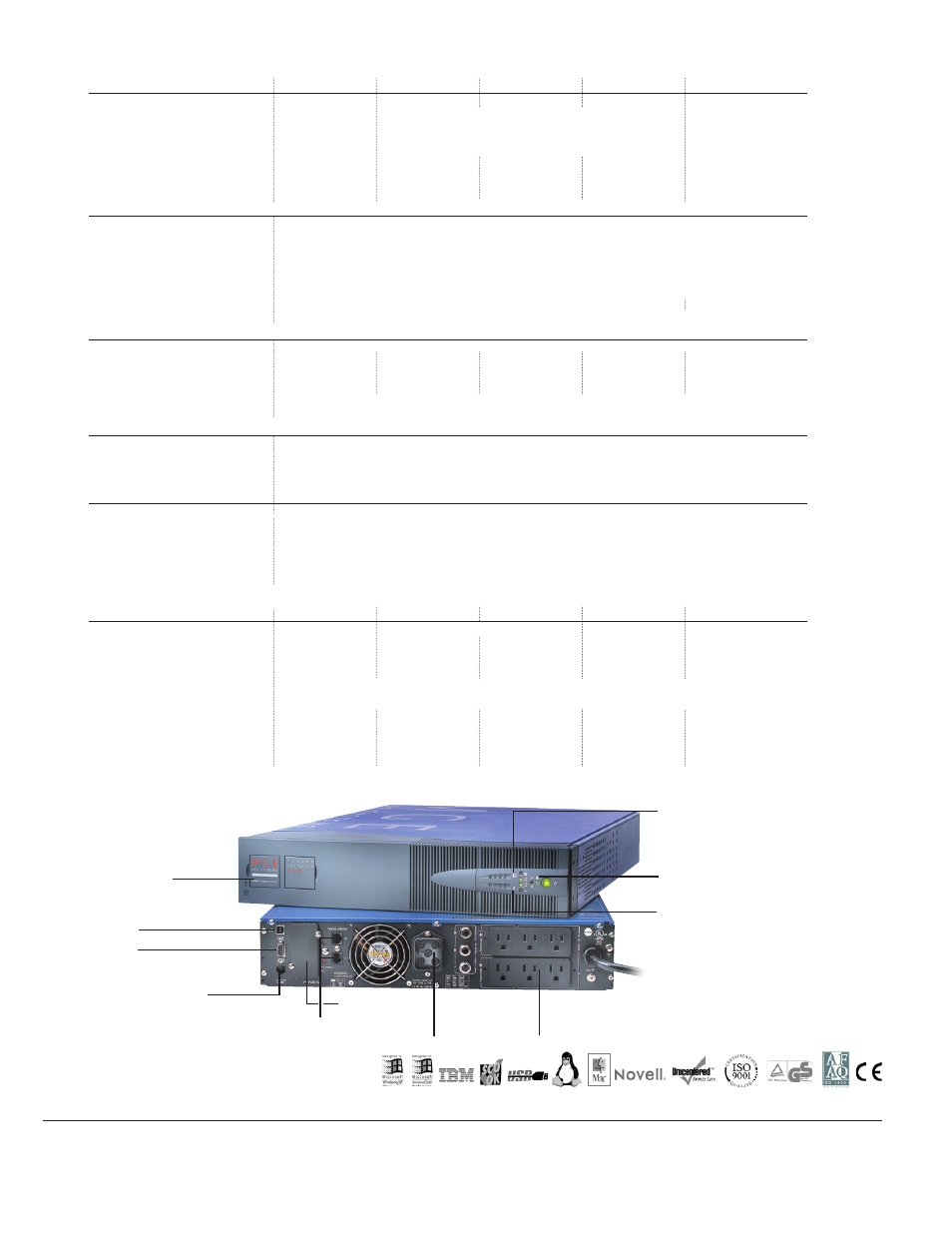

Characteristics
Battery charge level
Group of 6 outlets for
equipment connection with
2 programmable outlets
Power consumption
Complete user interface:
- on AC input / on battery
- booster/fader mode
- programmable outlet status
- battery replacement required
or UPS fault
Connection
of additional
battery modules
Slot for optional
communications
card
Data line
protection
Automatic recognition
of battery extensions
RS232 communications
port
USB communications
port
Repositionable
logo and battery
access plate
Pulsar
Evolution
2200
