K00333/K00334 TRAY SLIDE KIT 1/2/3 DOOR
Installation Instructions

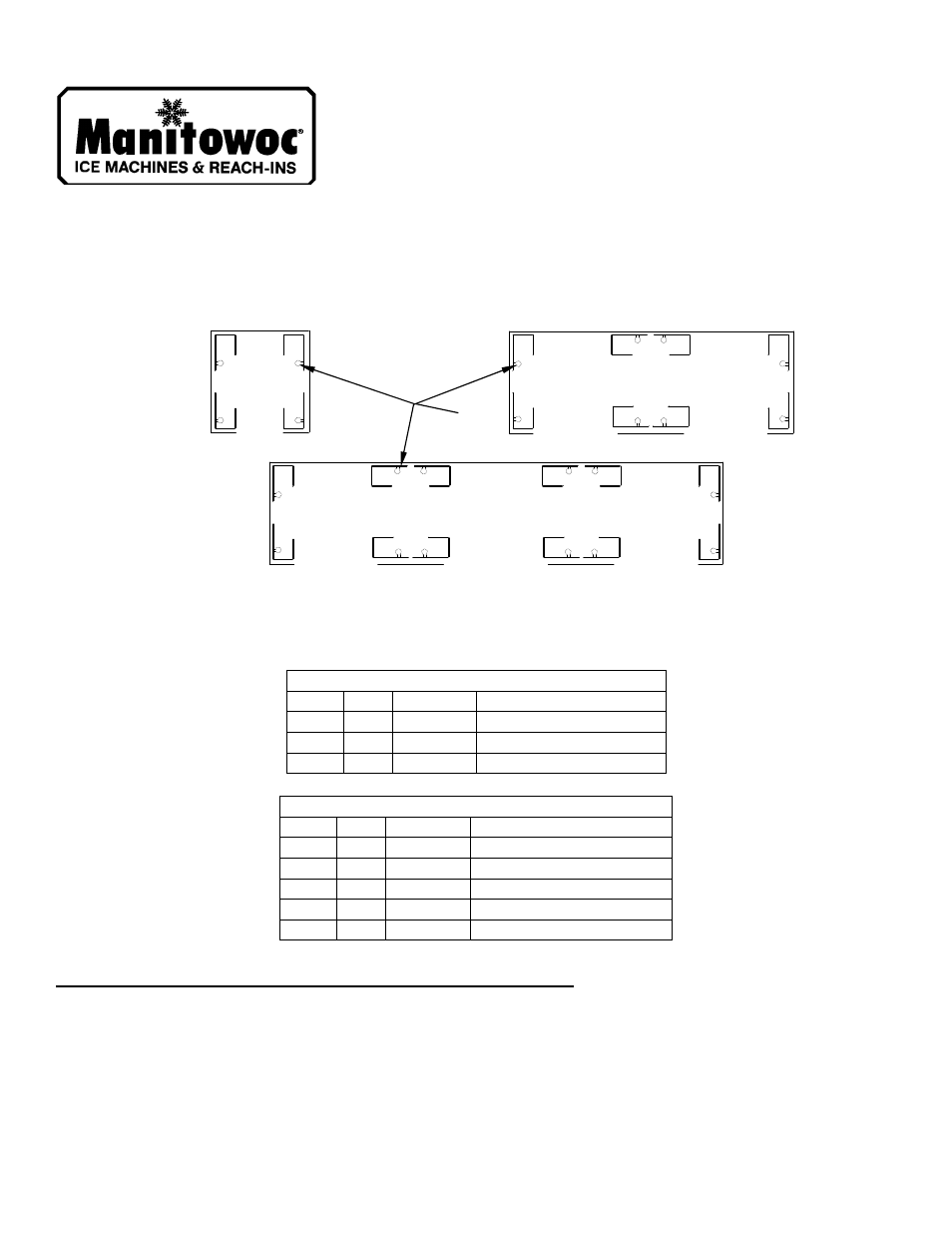

TOP VIEWS OF CABINET SHOWING TRAY SLIDE PILASTER POSITIONS
K00333 PARTS LIST
Item Qty. Part No. Description
1 4 3203343 Wire Shelf Pilaster
2 16 6022201 Tray Slide
3 4 6022301 Tray Slide Pilaster
K00334 PARTS LIST
Item Qty. Part No. Description
1 4 3203343 Wire Shelf Pilaster
2 16 6022201 Tray Slide
3 1 6022191 Tray Slide Pilaster - 2 Dr.
4 3 6022301 Tray Slide Pilaster
5 47” 9202503 Tape, Extruded
READ INSTRUCTIONS COMPLETELY BEFORE INSTALLATION
1. Remove all wire shelves from door opening. Remove existing pilasters by removing the thumbscrews at the top and
lifting up and off the mounting studs.
2. (Use steps 2 and 3, when installing on bottom half.) Use top slotted holes on tray slide pilaster, as shown in Fig. 3.
Press in and down to lock into place.
Manitowoc Ice, Inc.
2110 South 26 Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA 8010553
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879 Sheet 1 of 2
Web Site -
www.manitowocice.com Rev. 04/01/99
1 Dr.
2 Dr.
3 Dr.
Thumbscrew
